525607x692B Murray - Lawn Tractor (2002)

Model: 525607x692B

Back To Assemblies

Save Part Not Listed?
product name

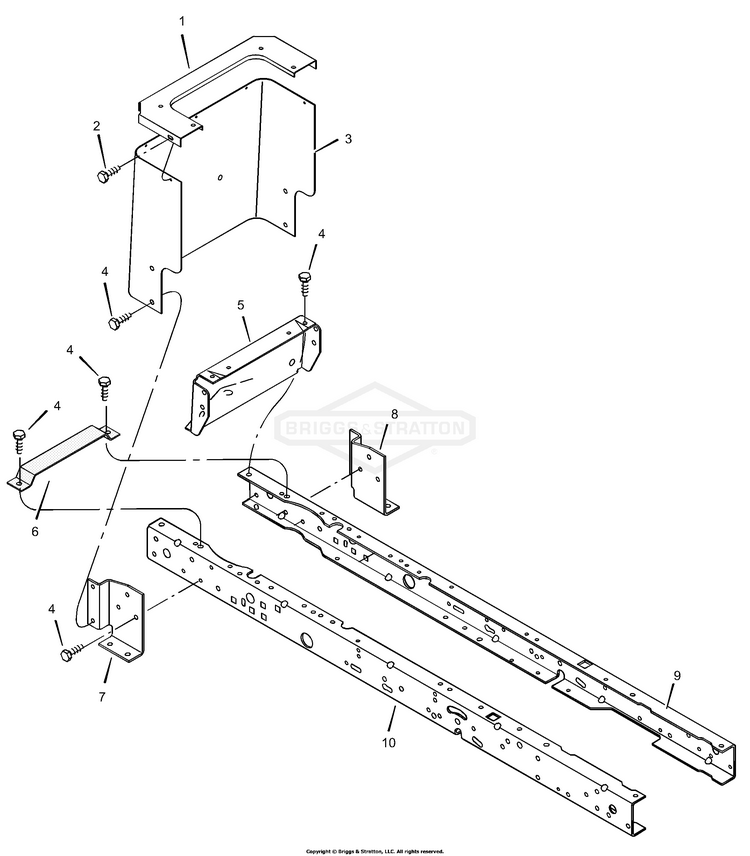

Frame Assembly

...
...
1
Plate, Top Rear BS-094186E700
...
2
SCREW, Thread Forming BS-26X270MA
...
3
Plate, Rear BS-690218E700
...
4
Screw BS-26X249MA
...
5
Plate, Hitch BS-1001002E701
...
6
Bracket, Support BS-690482E700
...
7
Bracket, Right Transaxle BS-094184E700
...
8
Bracket, Left Transaxle BS-094185E700
...
9
Frame, Left BS-1001269E700
...
10
Frame, Right BS-1001268E700
Schematic Image Zoomed
