525607x692B Murray - Lawn Tractor (2002)

Model: 525607x692B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

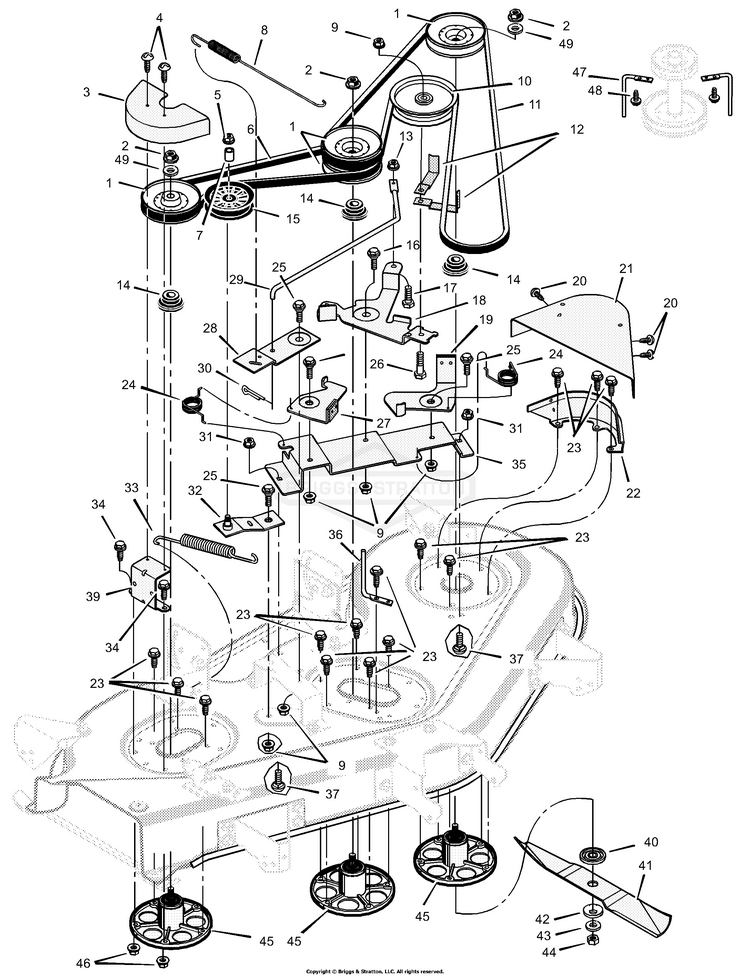

Blade Drive System

...
...
1
Pulley BS-690444MA
...
2
Nut BS-15X121
...
3
Cover, Right Pulley BS-094607E700
...
4
SCREW, #10-16X.625 BS-703994
...
5
NUT, CNTR LCK, 3/8-16 BS-703893
...
6
Belt, Secondary BS-7769223
...
7
Spacer BS-690369MA
...
8
Spring, Extension BS-165X138MA
...
9
NUT, CNTR LCK, 3/8-16 BS-703893
...
10
Pulley, Idler BS-095068MA
...
11
Belt, Primary BS-7769212
...
12
Spring, Belt Guide BS-094809MA
...
13
NUT .25-20 FLANGELOCK BS-015X89MA
...
14
Spacer, Pulley BS-1001197MA
...
15
Pulley, Backside Idler BS-690549MA
...
16
BOLT, 3/8-16 X .925 BS-704206
...
17
Bolt, Shoulder BS-009X54MA
...
18
Bracket, Idler BS-690068E700
...
19
Assembly, Brake Arm BS-095074
...
20
Screw BS-26X277MA
...
21
Cover, Left Pulley BS-094645E700
...
22
Bracket, Pulley Cover BS-690221E700
...
23
SCREW-HEX WSHR HD TAP BS-2828635SM
...
24
Spring, Torsion BS-166X41MA
...
25
Bolt, Shoulder BS-009X39MA
...
26
CAPSCREW,3/8-16X1.5 BS-703406
...
27
Assembly, Brake Arm BS-094698
...
28
Bellcrank BS-094808E700
...
29
Link BS-690119 Z
...
30
PIN, COTTER, 3/32X.75 BS-703312
...
31
NUT, 5/16-18, GR5 BS-703409
...
32
Assembly, Idler Arm BS-094701
...
33
Spring, Extension BS-165X130MA
...
34
BOLT BS-5025011X8FS
...
35
Bracket, Brake Mounting BS-690414E700
...
36
Rod, Belt Guide BS-092424
...
37
BOLT BS-703159
...
38
SCREW, 3/8-16X.75 BS-703950
...
39
Bracket, Cover BS-092140E700
...
40
Adapter, Blade BS-7769213MA
...
41
Blade BS-7769205
...
42
Washer BS-17X166MA
...
43
Washer BS-17X165MA
...
44
Nut BS-15X100MA
...
45
JACKSHAFT HSNG ASSY BS-1001200MA
...
46
NUT, HEX FLNG,5/16-18 BS-704067
...
47
Guide, Belt BS-091797 Z
...
48
SCREW, 3/8-16X.75 BS-703950
...
49
Washer BS-017X87
