52161x89B Murray - Garden Tractor (2000)

Model: 52161x89B

Back To Assemblies

Save Part Not Listed?
product name

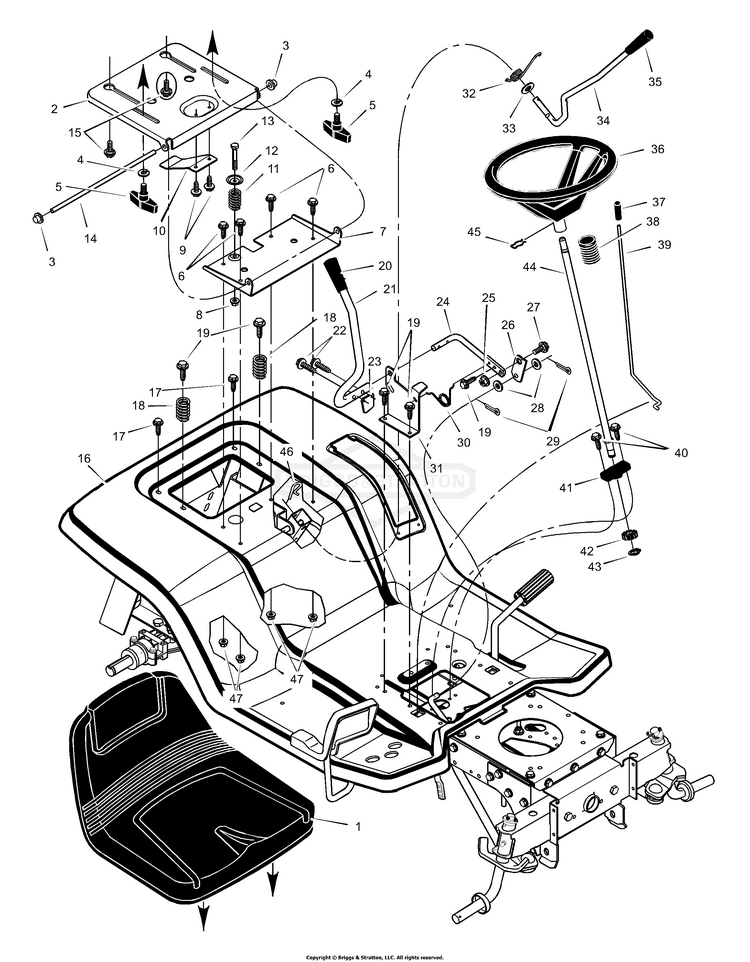

Seat Deck

...
...
1
Seat BS-95236
...
2
Support, Seat BS-094154E700
...
3
PUSHNUT, 3/8 BS-703948
...
4
WASHER, FLAT 5/16 BS-704015
...
5
Bolt, Wing BS-094160
...
6
CAPSCREW,5/16-18X.625 BS-703822
...
7
Bracket, Pivot BS-1001648E701MA
...
8
NUT .25-20 FLANGELOCK BS-015X89MA
...
9
Screw BS-26X229MA
...
10
Spring, Leaf BS-094057MA
...
11
SPRING, Compression BS-164X31MA
...
12
Washer, Cup BS-094155 Z
...
13
Bolt BS-009X55MA
...
14
Rod, Pivot BS-094156ZMA
...
15
Bolt, Shoulder BS-009X56MA
...
16
Deck, Seat BS-094150E020
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
Spring BS-164X30MA
...
19
Screw BS-26X249MA
...
20
GRIP BS-1753233YP
...
21
Handle, PTO BS-690050MA
...
22
Screw, Hex BS-0025X3MA
...
23
Paddle, Switch BS-094022 Z
...
24
Lever, PTO BS-094017 Z
...
25
NUT, CNTR LCK, 3/8-16 BS-703893
...
26
Link, PTO BS-094004 Z
...
27
Shoulder, Bolt BS-009X39MA
...
28
Washer BS-017X57MA
...
29
PIN, COTTER, 3/32X.75 BS-703312
...
30
Spring BS-166X39MA
...
31
Bracket, PTO BS-094018E700
...
32
Spring BS-166X40MA
...
33
Washer BS-17X103MA
...
34
Handle, Lift BS-690533MA
...
35
GRIP BS-1753233YP
...
36
Wheel, Steering BS-094806
...
37
Grip BS-091079MA
...
38
Bellows BS-092059MA
...
39
Rod, Parking Brake BS-095005 Z
...
40
Screw BS-26X267MA
...
41
Bearing, Lower BS-094124MA
...
42
GEAR - PINION BS-690183MA
...
43
E-Ring BS-011X25MA
...
44
Shaft, Steering BS-690626
...
45
Clip, Retainer BS-094131MA
...
46
PIN, 3/32 X 1.6 BS-703300
...
47
NUT, HEX, 5/16-18 BS-703902
...
--
Manual and Parts List BS-F-000809L
