52161x89B Murray - Garden Tractor (2000)

Model: 52161x89B

Back To Assemblies

Save Part Not Listed?
product name

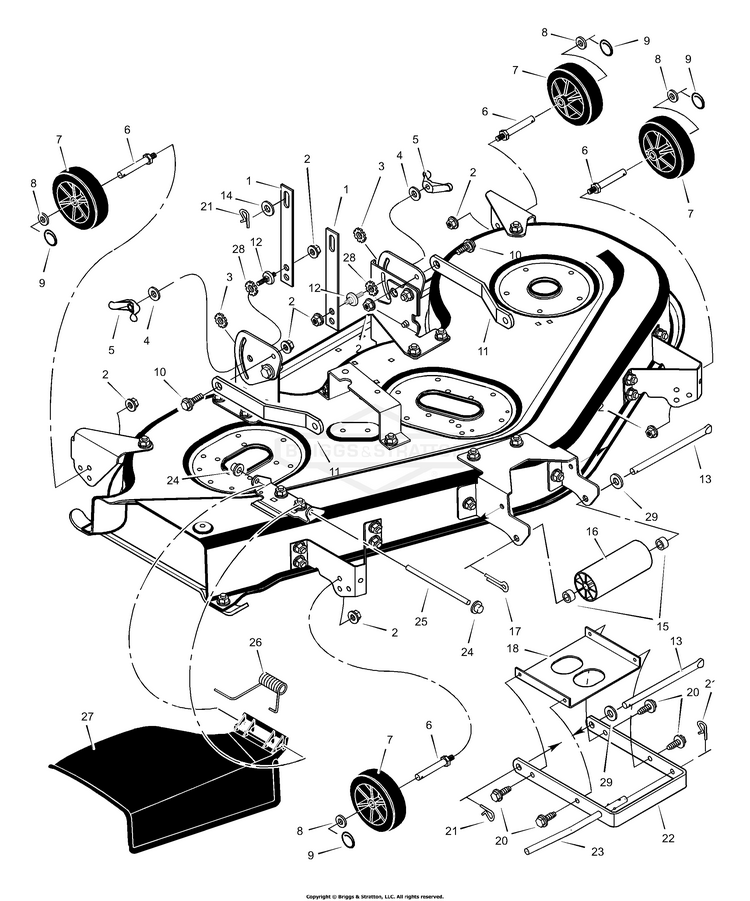

Mower Housing Suspension

...
...
1
Link, Lift BS-690550E700
...
2
NUT, CNTR LCK, 3/8-16 BS-703893
...
3
Washer BS-019X44MA
...
4
WASHER,FLAT .33 1. 16 BS-017X45MA
...
5
Wingnut BS-095004MA
...
6
BOLT, Gauge Wheel BS-094025MA
...
7
Wheel, Gage BS-092683MA
...
8
Washer BS-17X103MA
...
9
Pin, Hair BS-031X11MA
...
10
Bolt, Shoulder BS-009X52MA
...
11
Bracket, Rear Suspension BS-094055E700
...
12
PIN, Hanger BS-095194MA
...
13
Rod, Deck Suspension BS-094996MA
...
14
Washer BS-017X91 Z
...
15
Spacer BS-091925MA
...
16
Roller BS-092137MA
...
17
Pin, Cotter BS-030X49MA
...
18
Stiffener BS-094604E700
...
20
Screw BS-26X249MA
...
21
PIN, 3/32 X 1.6 BS-703300
...
22
Hanger, Front BS-690539E700
...
23
Rod, Front Hanger BS-094158ZMA
...
24
PUSHNUT, 3/8 BS-703948
...
25
Rod, Deflector BS-092159ZMA
...
26
Spring BS-166X34MA
...
27
Deflector, Chute BS-092100MA
...
28
Lockwasher BS-019X44MA
...
29
Washer BS-17X103MA
