52161x89B Murray - Garden Tractor (2000)

Model: 52161x89B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

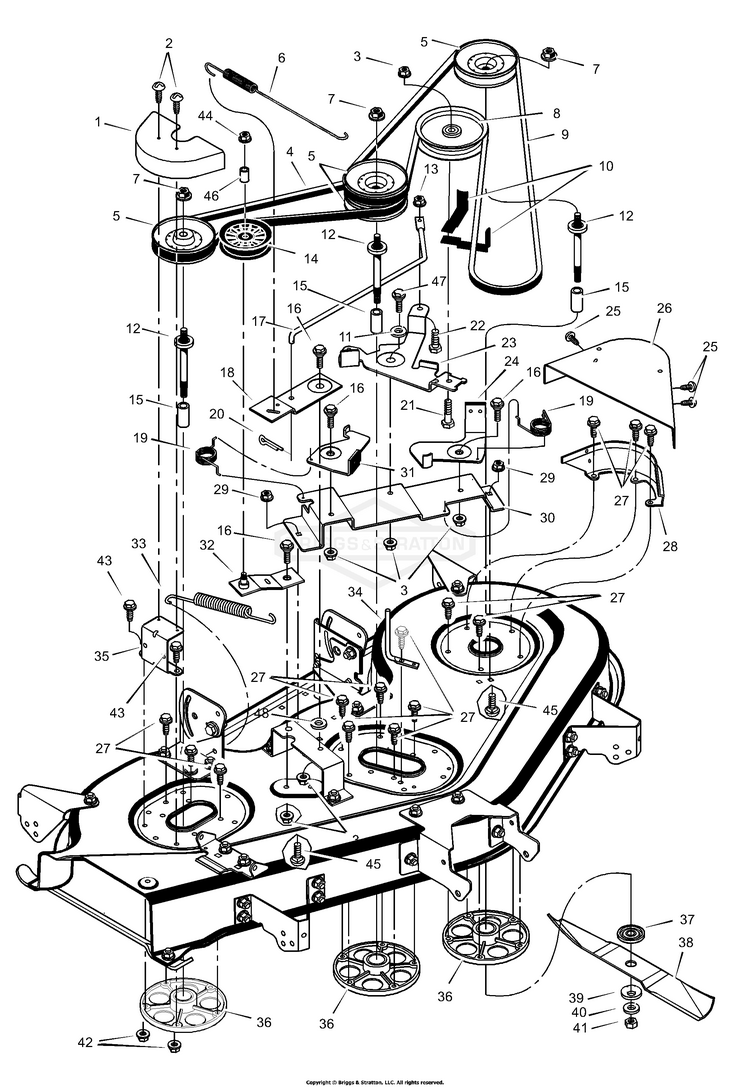

Blade Drive

...
...
1
Cover, Right Pulley BS-094607E700
...
2
SCREW, #10-16X.625 BS-703994
...
3
NUT, CNTR LCK, 3/8-16 BS-703893
...
4
Belt, Secondary BS-037X92MA
...
5
Pulley BS-690444MA
...
6
Spring, Extension BS-165X138MA
...
7
Nut BS-15X121
...
8
Pulley, Idler BS-095068MA
...
9
Belt, Primary BS-037X93MA
...
10
Spring, Belt Guide BS-094809MA
...
11
Washer BS-17X149MA
...
12
Mandrel BS-094129
...
13
NUT .25-20 FLANGELOCK BS-015X89MA
...
14
Pulley, Backside Idler BS-690549MA
...
15
Spacer BS-094130MA
...
16
Bolt, Shoulder BS-009X39MA
...
17
Link BS-690119 Z
...
18
Bellcrank BS-094808E700
...
19
Spring, Torsion BS-166X41MA
...
20
PIN, COTTER, 3/32X.75 BS-703312
...
21
CAPSCREW,3/8-16X1.5 BS-703406
...
22
Bolt, Shoulder BS-009X54MA
...
23
Bracket, Idler BS-690068E700
...
24
Assembly, Brake Arm & Pad BS-095074
...
25
Screw BS-26X277MA
...
26
Cover, Left Pulley BS-094645E700
...
27
SCREW-HEX WSHR HD TAP BS-2828635SM
...
28
Bracket, Pulley Cover BS-690221E700
...
29
NUT, 5/16-18, GR5 BS-703409
...
30
Bracket, Brake BS-690414E700
...
31
Assembly, Brake Arm & Pad BS-094698
...
32
Assembly, Idler Arm BS-094701
...
33
Spring, Extension BS-165X130MA
...
34
Guide, Belt BS-092424
...
35
Bracket, Cover BS-092140E700
...
36
Housing, Jackshaft BS-092574
...
37
Adapter, Blade BS-092466MA
...
38
BLADE 50 / 52 BS-721334AYP
...
39
Washer, Belleville BS-17X166MA
...
40
Washer BS-17X165MA
...
41
Nut BS-15X100MA
...
42
NUT, HEX FLNG,5/16-18 BS-704067
...
43
BOLT BS-5025011X8FS
...
44
NUT, CNTR LCK, 3/8-16 BS-703893
...
45
BOLT BS-703159
...
46
Spacer BS-690369MA
...
47
BOLT, 3/8-16 X .925 BS-704206
...
48
WASHER, Flat BS-17X174ZMA
