52161x89B Murray - Garden Tractor (2000)

Model: 52161x89B

Back To Assemblies

Save Part Not Listed?
product name

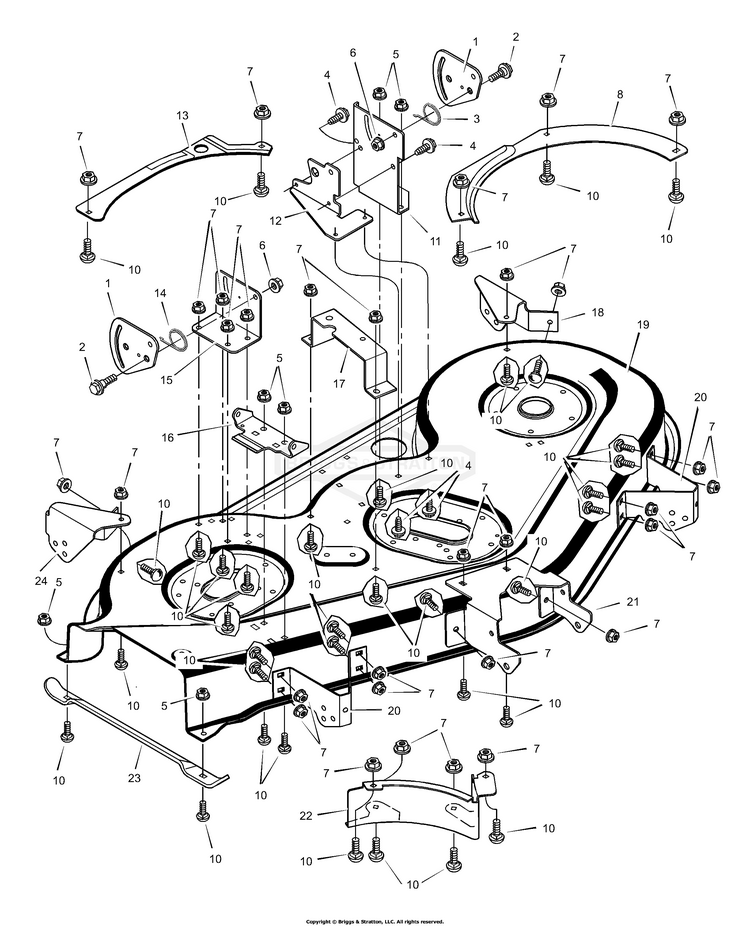

Mower Housing

...
...
1
Plate, Suspension BS-690128E700
...
2
BOLT-SHD.38-16X.499D BS-009X51MA
...
3
Spring, Left Torsion BS-166X43MA
...
4
Screw BS-26X249MA
...
5
NUT, HEX FLNG,5/16-18 BS-704067
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
NUT, 5/16-18, GR5 BS-703409
...
8
Baffle, Left BS-094118E700
...
10
BOLT BS-703159
...
11
Bracket, Left Lifter BS-690164E700
...
12
Brace, Lifter BS-690078E700
...
13
Baffle, Bottom BS-094117E700
...
14
Spring, Right Torsion BS-166X42MA
...
15
Bracket, Right Lifter BS-094694E700
...
16
Bracket, Hinge BS-092104E700
...
17
Bracket, Bellcrank BS-690118E700
...
18
Bracket, Left Gage Wheel BS-094717E700
...
19
Housing, Blade BS-094400E700
...
20
Bracket, Front Gage Wheel BS-095180E700
...
21
BRKT, FRONT DECK 50" BS-7300802DYP
...
22
Baffle, Right BS-690092E700
...
23
Bracket, Chute Support BS-095176E700
...
24
Bracket, Rear Gage Wheel BS-094716E700
