521613x189A Murray - Garden Tractor (2001)

Model: 521613x189A

Back To Assemblies

Save Part Not Listed?
product name

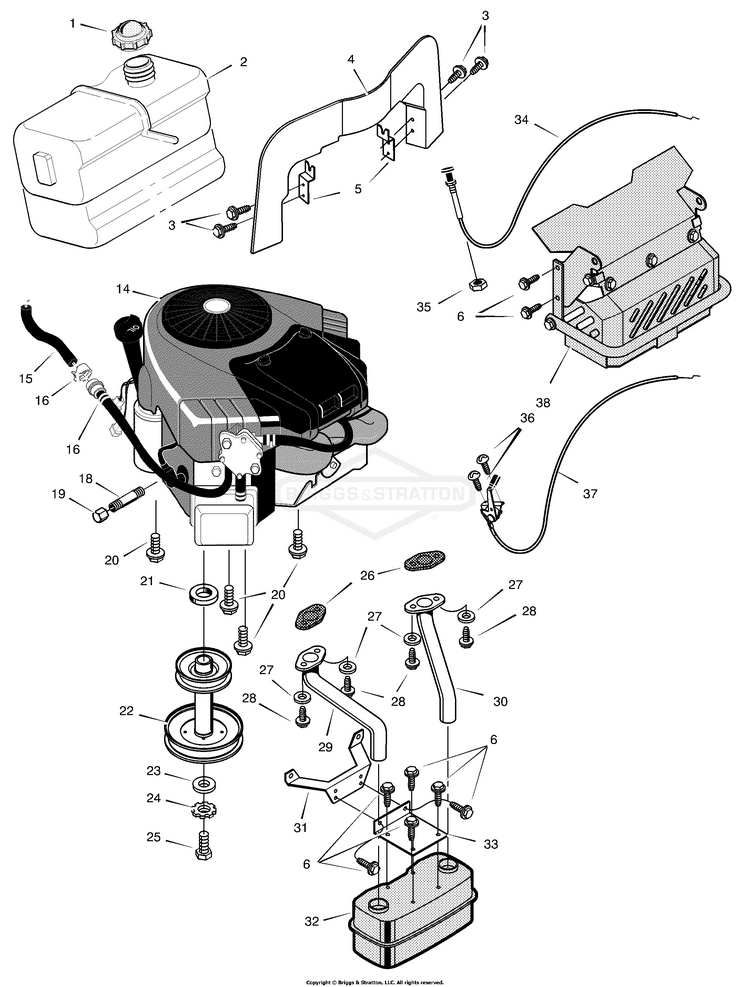

Engine Mount Assembly

...
...
1
Cap, Fuel BS-1001279MA
...
2
Tank, Fuel BS-690333MA
...
3
SCREW, Thread Forming BS-26X270MA
...
4
Baffle BS-094357
...
5
Clip, Baffle Mounting BS-094356 Z
...
6
SCREW.25-20 S-T BS-26X263MA
...
15
Fuel Line (Must cut to length) (Included with Ref. No. 2) BS-7601033MA
...
16
CLAMP, Hose (Included with Ref. No. 2) BS-791850
...
18
Pipe, Oil Drain BS-092279
...
19
Cap, Oil Drain BS-021651
...
20
SCREW-HEX WSHR HD TAP BS-2828635SM
...
21
Spacer BS-093077MA
...
22
SCREW BS-791680
...
23
WASHER.46.97.25 FLAT BS-17X170MA
...
24
Lockwasher BS-019X35MA
...
25
Bolt BS-01X140MA
...
26
Gasket BS-711851MA
...
27
WASHER, 5/16" LOCK BS-5025170SM
...
28
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
29
Tube, Right Exhaust BS-690541MA
...
30
Tube, Left Exhaust BS-690542MA
...
31
BRKT - MUFF MTG HP BS-690537E701MA
...
32
Muffler BS-093259MA
...
33
Bracket, Muffler BS-690538E701MA
...
34
Choke BS-690401
...
35
NUT, 3/8-16 BS-703333
...
36
Screw BS-26X201MA
...
37
Control, Throttle BS-093165MA
...
38
Shield Assembly, Heat BS-1001284MA
