52101x92A Murray - Garden Tractor (2000)

Model: 52101x92A

Back To Assemblies

Save Part Not Listed?
product name

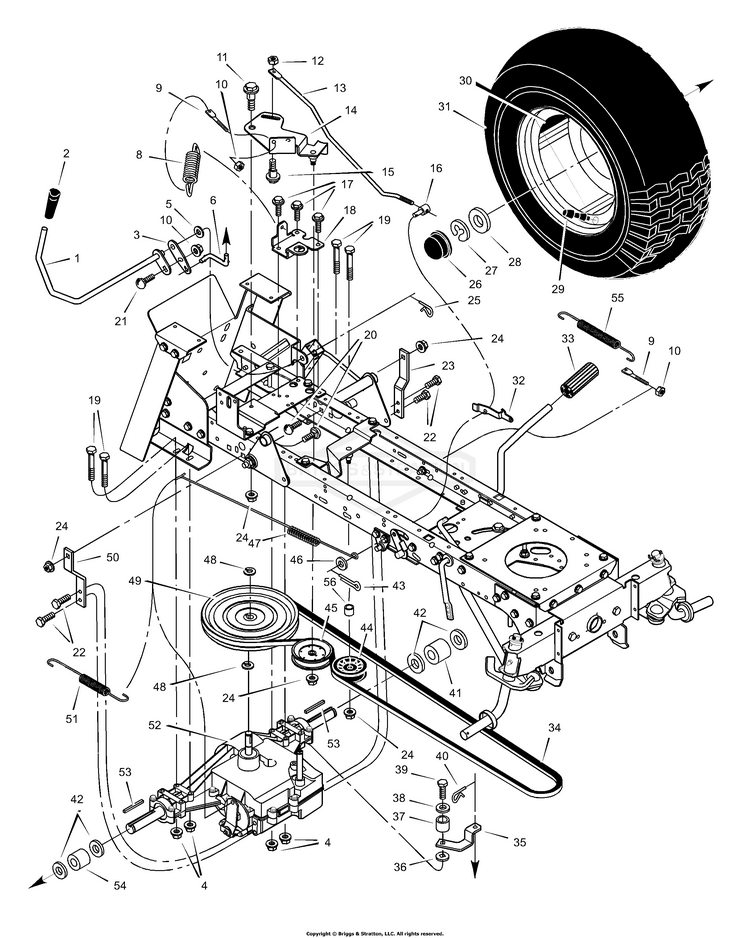

Motion Drive

...
...
1
Lever, Shift BS-690366 Z
...
2
GRIP BS-1753233YP
...
3
Plate, Adjusting BS-690131 Z
...
4
NUT, HEX FLNG,5/16-18 BS-704067
...
5
Washer BS-17X103MA
...
6
Link, Shift BS-690130 Z
...
8
Spring, Extension BS-165X116MA
...
9
Stud, Spring BS-094042ZMA
...
10
NUT, 5/16-18, GR5 BS-703409
...
11
Bolt, Shoulder BS-009X39MA
...
12
NUT .25-20 FLANGELOCK BS-015X89MA
...
13
Rod, Clutch BS-094041 Z
...
14
Arm Assembly, Idler BS-690364 Z
...
15
Bolt, Shoulder BS-009X54MA
...
16
NUT-ADJUSTING BS-094815ZMA
...
17
Screw BS-26X249MA
...
18
Bracket, Spring Mount BS-690070E700
...
19
SCREW BS-703868
...
20
Bolt, Carriage BS-002X78MA
...
21
BOLT BS-703159
...
22
Bolt BS-26X216MA
...
23
Bracket, Left Torque BS-690081E700
...
24
NUT, CNTR LCK, 3/8-16 BS-703893
...
25
PIN, 3/32 X 1.6 BS-703300
...
26
HUB CAP BS-094618MA
...
27
E-Ring BS-011X23MA
...
28
Washer BS-17X193MA
...
29
VALVE STM&CP,TR41 SE BS-024373MA
...
30
Wheel and Tire BS-093263-601
...
31
Tire * BS-091923MA
...
--
Tube BS-407049MA
...
32
Latch, Parking Brake BS-094045 Z
...
33
PEDAL-BRAKE BLACK RUB BS-1727261SM
...
34
Belt, Drive BS-037X68MA
...
35
Yoke, Shift BS-690129 Z
...
36
Washer, Square BS-17X148MA
...
37
Pilot, Support BS-091889
...
38
Washer BS-017X38MA
...
39
Capscrew BS-06X105MA
...
40
PIN, 3/32 X 1.6 BS-703300
...
41
Spacer, Left BS-690213 Z
...
42
Washer BS-17X118ZMA
...
43
PIN, COTTER, 3/32X.75 BS-703312
...
44
Pulley, V Idler BS-690410MA
...
45
Pulley, Backside Idler BS-023339MA
...
46
WASHER, FLAT, .377X1 BS-703966
...
47
Spring, Brake BS-165X115MA
...
48
Ring, Snap BS-0011X7MA
...
49
Pulley, Drive BS-690181MA
...
50
Bracket, Right Torque BS-690080E700
...
51
Spring, Extension BS-165X92MA
...
53
Key, Square BS-024039MA
...
54
Spacer, Right BS-690214 Z
...
55
Spring, Extension BS-165X133MA
...
56
Spacer BS-690369MA
