50572x89A Murray - Lawn Tractor (2000)

Model: 50572x89A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

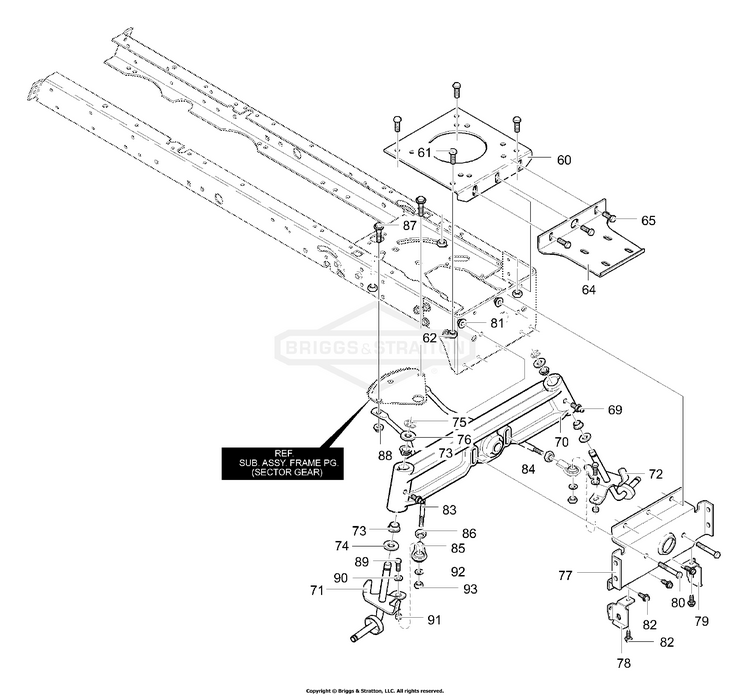

Frame Assembly (part 2)

...
...
60
PLATE, ENGINE BS-94006
...
61
SCREW 5/16-18X.75 BS-26X249MA
...
62
NUT, HEX FLNG,5/16-18 BS-704067
...
64
BRACKET , MUFFLER BS-094307
...
65
SCREW 5/16-18X.75 BS-26X249MA
...
69
ZERK, GREASE FITTING BS-706
...
70
AXLE, CAST IRON GT BS-690232
...
71
SPINDLE, RIGHT BS-94736
...
72
SCREW BS-690361
...
73
BEARING, SPINDLE BS-690150MA
...
74
WASHER.76-1.2 13G FL BS-17X113MA
...
75
RING, E .750D .050T BS-0011X3MA
...
76
WASHER, FLAT BS-17X195MA
...
77
HANGER, AXLE BS-94007
...
78
SCREW BS-93920
...
79
HANGER DECK LH BS-94027
...
80
SCREW 5/16-24X2.75 BS-01X146MA
...
81
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
82
SCREW 5/16-18X.75 BS-26X249MA
...
83
ROD, RIGHT DRAG LINK BS-94767
...
84
ROD, LEFT DRAG LINK BS-094768
...
85
TIE ROD END BS-094766MA
...
86
NUT, JAM BS-7058
...
87
BOLT BS-009X57MA
...
88
NUT, CNTR LCK, 3/8-16 BS-703893
...
89
BOLT BS-310364
...
90
WASHER, FLAT BS-711672
...
91
SPACER, BS-319618MA
...
92
WASHER, FLAT BS-301188MA
...
93
NUT, 3/8-16 BS-703333
