49T777-0001-G1 Briggs and Stratton Engine

Model: 49T777-0001-G1

Back To Assemblies

Save Part Not Listed?
product name

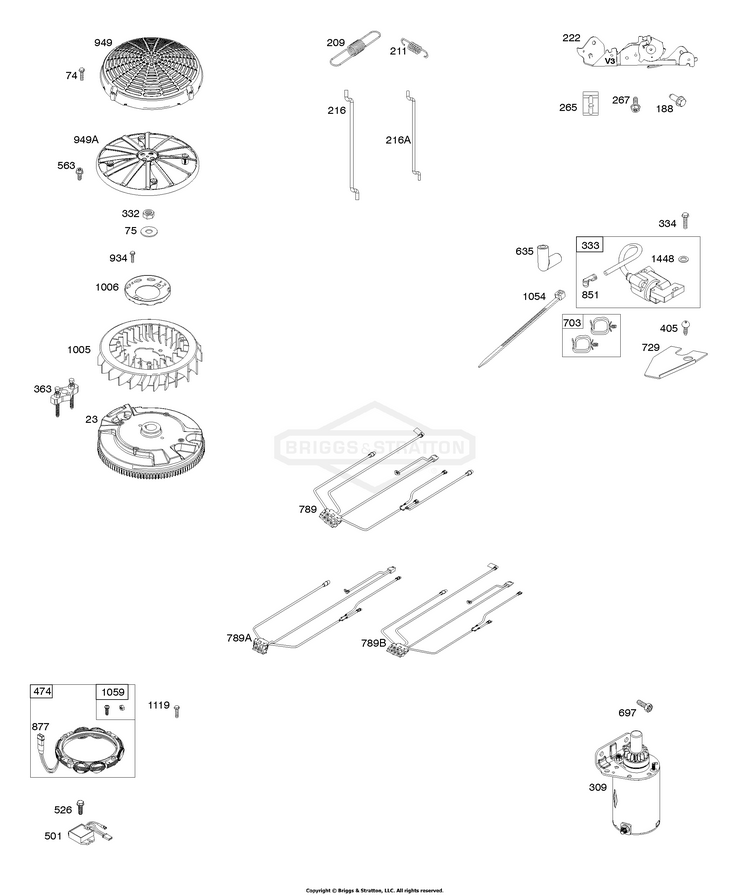

Flywheel, Controls, Wire Harness, Alternator, Starter

...
...
23
FLYWHEEL BS-799090
...
74
SCREW (Rotating Screen) BS-698425
...
75
WASHER (Flywheel) BS-691056
...
188
SCREW (Control Bracket) BS-691108
...
209
SPRING, Governor BS-799175
...
211
SPRING, Governed Idle (No Color) BS-691019
...
216
LINK, Choke (Manual Choke) BS-691022
...
222
BRACKET, Control BS-798916
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-792629
...
309
MOTOR, Starter BS-590476
...
332
NUT (Flywheel) BS-691059
...
333
ARMATURE, Magneto BS-84012885
...
334
SCREW (Magneto Armature) BS-691061
...
363
PULLER, Flywheel BS-19203
...
405
SCREW (Back Plate) BS-697820
...
474
ALTERNATOR (10-16 Amp Regulated) BS-592830
...
501
REGULATOR BS-845907
...
526
SCREW (Regulator) BS-691108
...
563
SCREW (Debris Screen Guard) BS-799360
...
635
BOOT, Spark Plug BS-692076
...
697
SCREW (Starter Motor) (Drive Cap) BS-591909
...
703
CLIP BS-691010
...
729
CLIP, Wire BS-593826
...
789A
HARNESS, Wiring BS-591392
...
851
TERMINAL, Spark Plug BS-493880S
...
877
WIRE/CONN-ALTERNATOR BS-399916
...
934
SCREW (Fan Retainer) BS-592604
...
949
GUARD, Debris Screen BS-799357
...
949A
GUARD, Debris Screen BS-593206
...
1005
FAN, Flywheel BS-791236
...
1006
RETAINER, Fan BS-798750
...
1054
TIE, Cable BS-280275
...
1059
KIT, Screw/Washer BS-698516
...
1119
SCREW (Alternator) BS-691183
...
1448
WASHER (Magneto Armature) BS-690260
