494054 Briggs and Stratton Short Block Assembly

Model: 494054

Save
 Part Not Listed?Part Not Listed?
product name

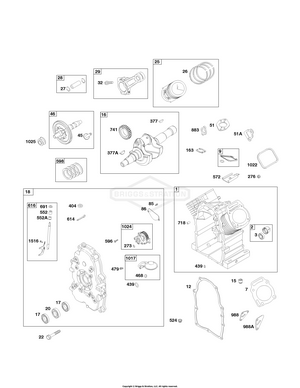

SHORT BLOCK

...
...
1
CYLINDER ASSEMBLY BS-692178
...
2
KIT, Bushing/Seal (Magneto Side) BS-808534
...
3
SEAL, Oil (Magneto Side) BS-845659
...
7
GASKET, Cylinder Head (Metal) BS-807986
...
7
GASKET, Cylinder Head BS-806085S
...
9
GASKET, Breather BS-844986
...
12
GASKET-CRANKCASE BS-845254
...
15
PLUG, Oil Drain BS-691680
...
16
CRANKSHAFT BS-84004501
...
17
BEARING, Ball (Cylinder) BS-843827
...
18
COVER, Crankcase BS-844588
...
20
SEAL, Oil (PTO Side) BS-805049S
...
22
SCREW (Crankcase Cover/Sump) BS-807362
...
25
PISTON ASSEMBLY (Standard) BS-843951
...
25
PISTON ASSEMBLY (.020 Oversize) BS-843958
...
26
SET, Ring (Standard) BS-843953
...
26
PISTON ASSEMBLY (.020 Oversize) BS-843958
...
27
LOCK, Piston Pin BS-690683
...
28
PIN, Piston BS-844541
...
29
ROD, Connecting BS-807900S
...
32
SCREW (Connecting Rod) BS-690698
...
45
TAPPET, Valve BS-843379
...
46
CAMSHAFT BS-845649
...
51
GASKET, Intake BS-691694
...
51A
GASKET, Intake BS-692035
...
85
SCREW (Gear Cover) BS-841233
...
86
COVER, Gear BS-690745
...
163
GASKET, Air Cleaner (Air Cleaner) BS-692081
...
273
SEAL, O-Ring (Oil Pump) BS-690681
...
276
WASHER, Sealing (Rocker Cover) BS-807085
...
377
KEY, Flywheel BS-808095
...
377A
KEY, Woodruff BS-691639
...
404
WASHER (Governor Crank) BS-690704
...
439
O-RING, Oil Gallery (Crankcase Cover/Sump or Cylinder Assembly) BS-692154
...
468
SEAL, O-Ring (Oil Pump Screen) BS-690690
...
479
SCREW (Oil Pump Screen) BS-807084
...
524
SEAL-DIPSTICK TUBE (Dipstick Tube) BS-281370S
...
524
SEAL, O-Ring (Dipstick Tube) BS-693172
...
552
BUSHING, Governor Crank BS-690701
...
552A
BUSHING, Governor Crank BS-806686
...
572
BAFFLE, Breather BS-690686
...
596
SCREW (Oil Pump) BS-691492
...
598
SHIM, End Play (Crankshaft or Camshaft Bearing) BS-807625
...
614
PIN, Cotter BS-691550
...
616
CRANK, Governor BS-806685
...
691
SEAL, Governor Shaft BS-842826
...
718
PIN, Locating BS-806469
...
741
GEAR, Timing BS-846085
...
883
GASKET, Exhaust BS-691613
...
988
GASKET, Oil Adapter BS-692063
...
988A
GASKET, Oil Adapter BS-690687
...
1017
SCREEN, Oil Pump BS-690900
...
1022
GASKET, Rocker Cover BS-806039S
...
1024
PUMP, Oil BS-843825
...
1025
SPOOL, Governor BS-690689
...
1516
SCREW (Governor Crank) BS-846459
...
...
...
