474177-0112-E1 Briggs and Stratton Engine

Model: 474177-0112-E1

Back To Assemblies

Save Part Not Listed?
product name

Air Cleaner, Flywheel

...
...
23
FLYWHEEL (Steel Ring Gear) BS-841294
...
24
KEY, Flywheel BS-222698S
...
37
GUARD, Flywheel BS-807332
...
75
SET, Washer/Nut (Flywheel) Used After Code Date 05051000 BS-844795
...
75
WASHER (Flywheel) Used Before Code Date 05051100 BS-691056
...
78
SCREW (Flywheel Guard) BS-807421
...
332
SET, Washer/Nut (Flywheel) Used After Code Date 05051000 BS-844795
...
332
SET, Washer/Nut (Flywheel) Used Before Code Date 05051100 BS-844795
...
363
PULLER, Flywheel BS-19203
...
365
SCREW (Carburetor) (M6x85mm ) BS-807437
...
445
FILTER, A/C Cartridge BS-820263
...
445A
FILTER, A/C Cartridge BS-821136
...
536
CLEANER, Air BS-809670
...
582
CLAMP, Air Cleaner BS-807381
...
613
SCREW (Muffler) (M8x25mm ) BS-846149
...
613A
SCREW (Muffler) (M8X18mm Long) BS-692062
...
653
SCREW (Crankshaft Pulley) (5/16x65mm ) BS-809528
...
717
BRACKET, Air Cleaner BS-841886
...
725
SHIELD, Heat BS-841282
...
728
SCREW (Heat Shield) BS-692062
...
813
CLAMP (65mm ID) BS-807376
...
813
CLAMP (58mm ID) BS-807377
...
855
ADAPTER, Air Cleaner BS-807355
...
883
GASKET, Exhaust (Manifold to Head) BS-807326
...
968
COVER, Air Cleaner BS-842621
...
1075
PULLEY, Crankshaft BS-841293
...
1315
HOSE, Air Cleaner BS-809905
...
1315A
HOSE, Air Cleaner BS-807380
...
1337
SCREW (Air Cleaner Clamp) BS-807382
...
1406
VALVE, Debris BS-842623

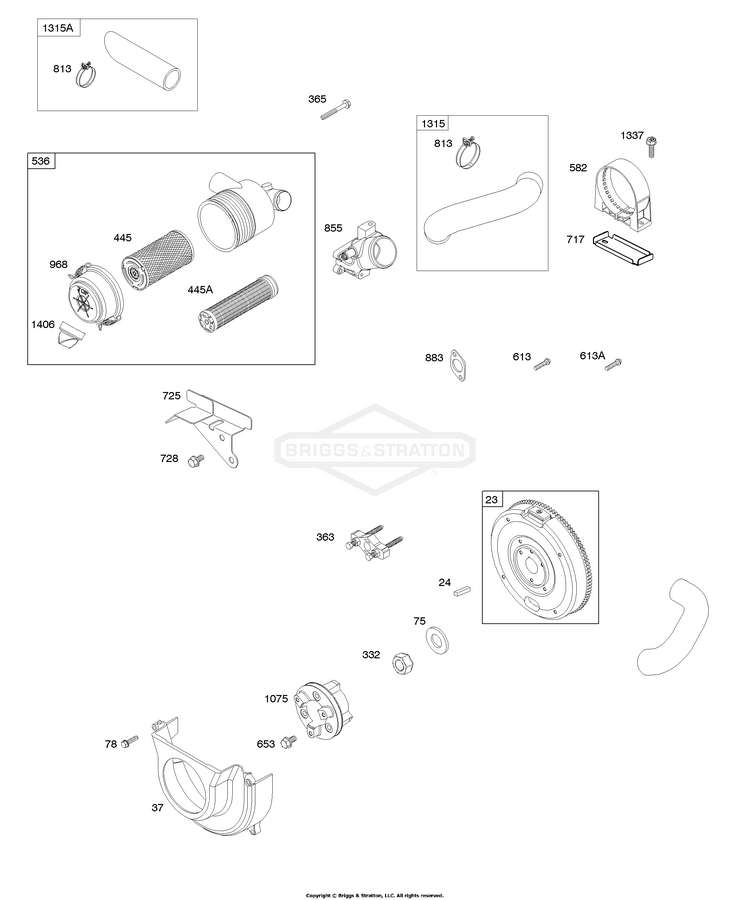

Schematic Image Zoomed
