46904x92A Murray - Lawn Tractor (1996)

Model: 46904x92A

Back To Assemblies

Save Part Not Listed?

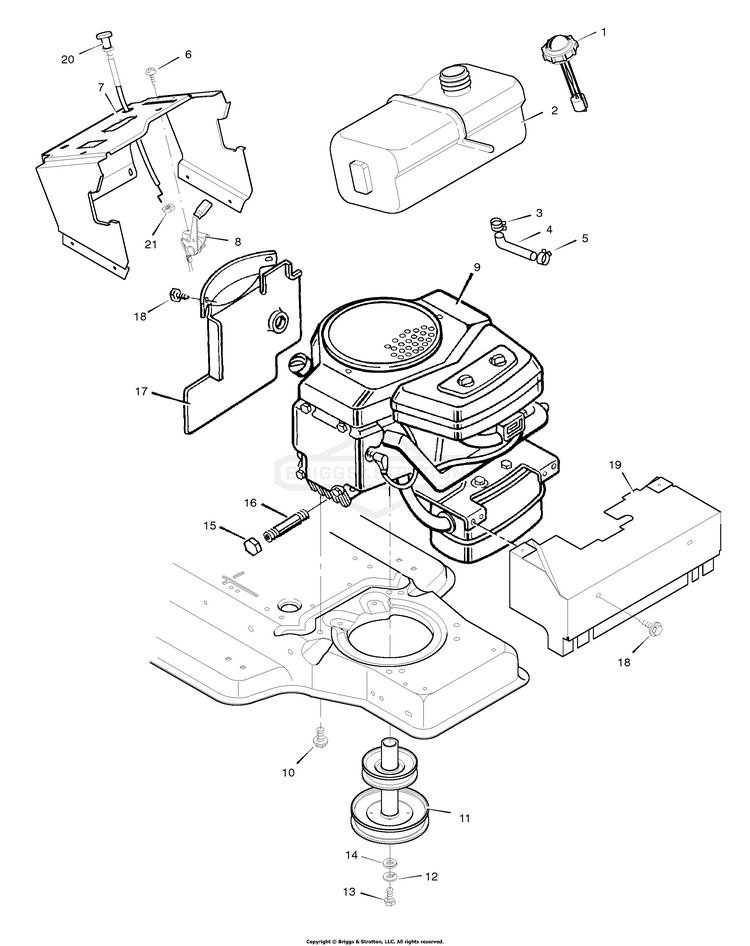

product name

Engine Mount

...
...
1
Fuel Cap BS-091348MA
...
2
Fuel Tank BS-092597
...
3
Hose Clamp BS-091174
...
4
Fuel Line BS-93198
...
5
Hose Clamp BS-091174
...
6
Screw BS-26X201MA
...
7
Support, Dash BS-93136E701
...
8
Throttle Control BS-093165MA
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
Stack Pulley Assembly BS-093245 Z
...
12
Lockwasher BS-019X35MA
...
13
Bolt, Hex BS-01X140MA
...
14
WASHER.46.97.25 FLAT BS-17X170MA
...
15
Cap, Oil Drain BS-021651
...
16
Pipe, Oil Drain BS-092279
...
17
Baffle, Rear Engine BS-093078E701
...
18
SCREW, HEX, 1/4-20X.5 BS-704130
...
19
Baffle, Front Engine BS-093191
...
20
Choke BS-091326
...
21
WASHER, EXT, 3/8 BS-703864
