468602x68A Murray - Lawn Tractor (2005)

Model: 468602x68A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Steering

...
...
1
Wheel, Steering BS-1001981MA
...
2
Cover, Steering Wheel BS-1001982MA
...
3
Screw, Hex BS-0025X3MA
...
4
WASHER, 5/16 x 1-1/4 OD BS-1933468SM
...
5
Shaft, Steering BS-690625
...
6
Cover BS-092059MA
...
7
Bearing, Lower Steering BS-094124MA
...
8
Screw BS-26X267MA
...
9
Bolt, Shoulder BS-009X62MA
...
10
Nut, Flanged Lock BS-15X111MA
...
11
PLATE, STEERING MT BS-7300867ZMA
...
12
GEAR - PINION BS-690183MA
...
13
Ring, Snap BS-011X25MA
...
14
Plate, Engine BS-094006E701MA
...
15
Screw BS-26X249MA
...
16
Hanger, Axle BS-094007E701MA
...
17
Bolt, Hex BS-01X146MA
...
18
Bracket, Rear Hanger BS-1001270E701MA
...
19
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
20
Pin, Cotter BS-030X49MA
...
21
WASHER.76-1.2 13G FL BS-17X113MA
...
22
Bearing, Steering BS-690150MA
...
23
Axle, Front BS-1001460E701MA
...
24
LEFT FRONT SPINDLE BS-1001173E701MA
...
--
WELD SPINDLE ASSY R BS-721440BMYP
...
25
Bolt, Carriage BS-002X96MA
...
26
NUT, CNTR LCK, 3/8-16 BS-703893
...
27
Link, Left Drag BS-1001177E701MA
...
28
Washer BS-17X168ZMA
...
29
Link, Right Drag BS-1001178E701MA
...
30
Bearing, Front Wheel BS-091334
...
31
Tire ONLY * BS-024380
...
--
Tube ONLY BS-407924
...
32
Wheel and Tire Assembly BS-094583-804
...
33
Washer BS-17X195MA
...
34
Pin, Cotter BS-030X49MA
...
35
Washer BS-17X192MA
...
36
HUB CAP BS-094618MA
...
37
Washer BS-017X91MA
...
38
Bolt, Hex BS-001X75MA
...
39
Support, Sector Gear BS-1002014E701
...
40
Follower, Cam BS-1001886E701
...
41
Washer BS-17X175MA
...
42
Bolt, Shoulder BS-009X81MA
...
43
Bearing, Sector Gear BS-1001888MA
...
44
Sector Gear & Cam Assembly BS-1001889
...
45
Nut. Flanged Lock BS-015X87
...
46
Bolt, Shoulder BS-009X80MA
...
47
Link, Primary Drag BS-1001885E701
...
48
Screw BS-26X267MA
...
49
Member, Cam Cross BS-1001894E701
...
50
Bolt, Hex BS-01X118MA
...
51
Bracket, Right Transaxle BS-1001891E701MA
...
52
Bolt, Shoulder BS-009X79MA
...
53
Pivot Assembly, Rear BS-1001950MA
...
54
Screw BS-0025X6MA
...
55
ARM REAR WHEEL STEER BS-728578BMYP
...
56
Bolt, Shoulder BS-009X82MA
...
57
Bolt, Hex BS-001X70
...
58
Washer, Split Lock BS-018X31MA
...
59
Rod Assembly, Tie BS-1001935
...
60
Nut, Lock BS-15X119
...
61
Bolt, Hex BS-01X194
...
62
Steering Assembly, Rear BS-1001931MA
...
63
Bolt, Shoulder BS-009X81MA
...
64
ARM REAR WHEEL STEER BS-728579BMYP
...
65
Bushing, Cam BS-1001882MA
...
68
NUT, HEX FLNG,5/16-18 BS-704067
...
69
Bracket, Transaxle Support BS-1001944E701
...
71
Screw BS-26X216MA
...
72
Bracket, Left Transaxle BS-1001890E701MA
...
73
Screw BS-025X22MA

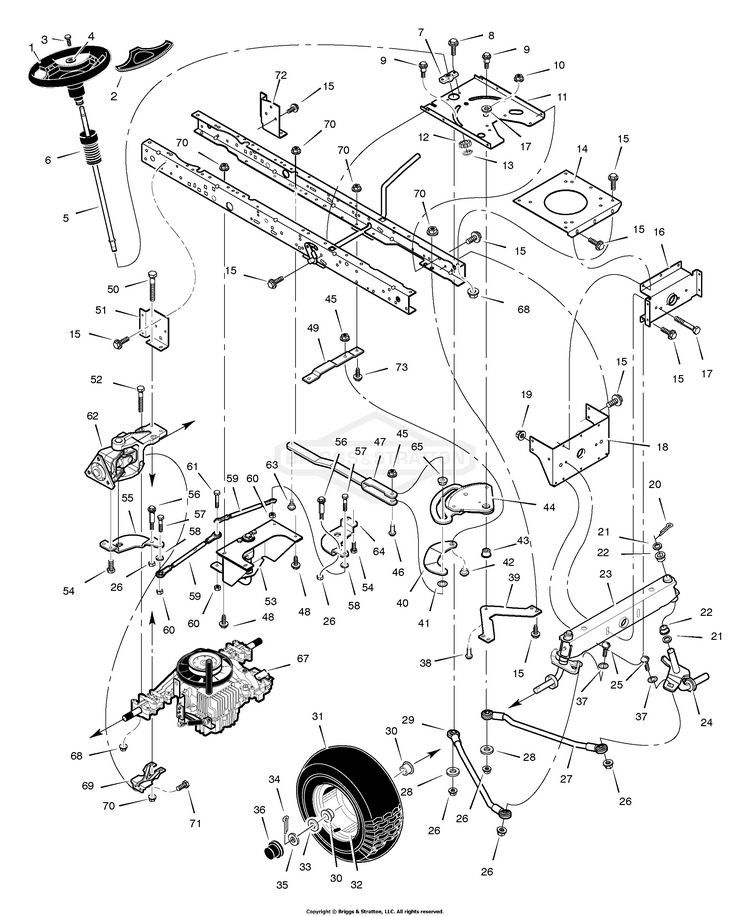

Schematic Image Zoomed
