468600x43A Murray - Lawn Tractor (2004)

Model: 468600x43A

Back To Assemblies

Save Part Not Listed?
product name

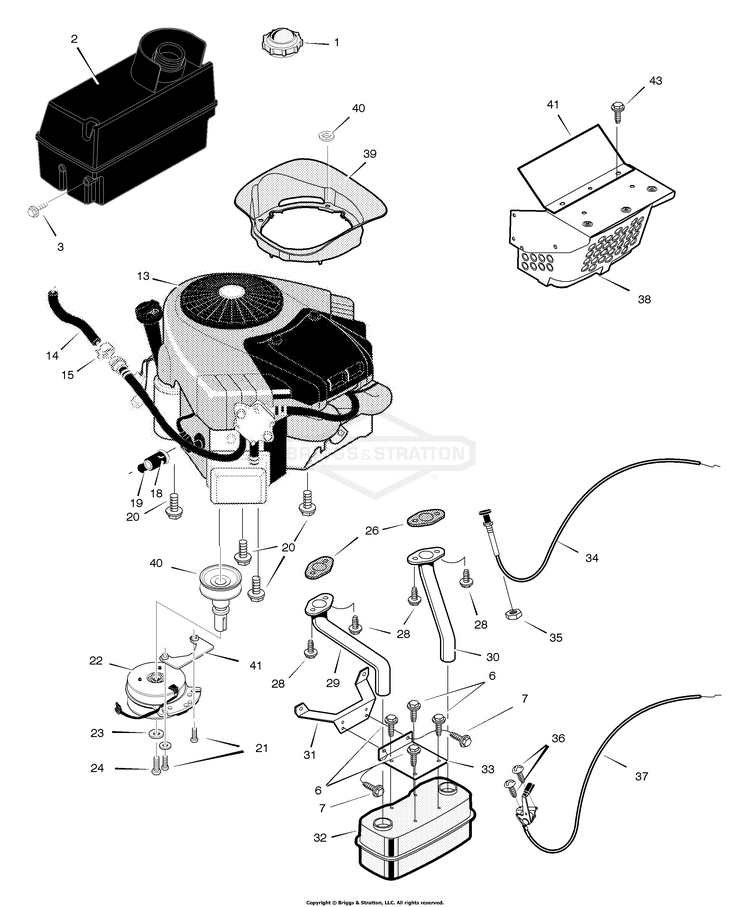

Engine Mount

...
...
1
FUEL CAP (Included with Ref. No. 2) BS-092317MA
...
2
FUEL KIT 2.8 BS-7601093MA
...
3
Screw BS-26X253MA
...
6
Screw BS-26X229MA
...
7
SCREW.25-20 S-T BS-26X263MA
...
14
Fuel Line (Must cut to length) (Included with Ref. No. 2) BS-7601033MA
...
15
CLAMP, Hose (Included with Ref. No. 2) BS-791850
...
18
Valve, Oil Drain BS-325547MA
...
19
Cap, Oil Drain BS-327422
...
20
SCREW-HEX WSHR HD TAP BS-2828635SM
...
21
Screw BS-26X249MA
...
22
Clutch, Electric BS-690461
...
23
Washer BS-120383
...
24
Bolt BS-428644MA
...
26
Gasket BS-711851MA
...
28
Bolt BS-06X103MA
...
29
Tube, Right Exhaust BS-690541MA
...
30
Tube, Left Exhaust BS-690542MA
...
31
BRKT - MUFF MTG HP BS-690537E701MA
...
32
Muffler BS-093259MA
...
33
Bracket, Muffler BS-690538E701MA
...
34
Choke BS-690401
...
35
NUT, 3/8-16 BS-703333
...
36
Screw BS-26X201MA
...
37
Control, Throttle BS-1001503
...
38
Shield Assembly, Heat BS-1001191E701
...
39
Plenum BS-1001158
...
40
Retainer, Push BS-028X49MA
...
41
Shield, Upper Heat BS-1001504
...
43
Screw BS-26X277MA
