468600x43A Murray - Lawn Tractor (2004)

Model: 468600x43A

Back To Assemblies

Save Part Not Listed?
product name

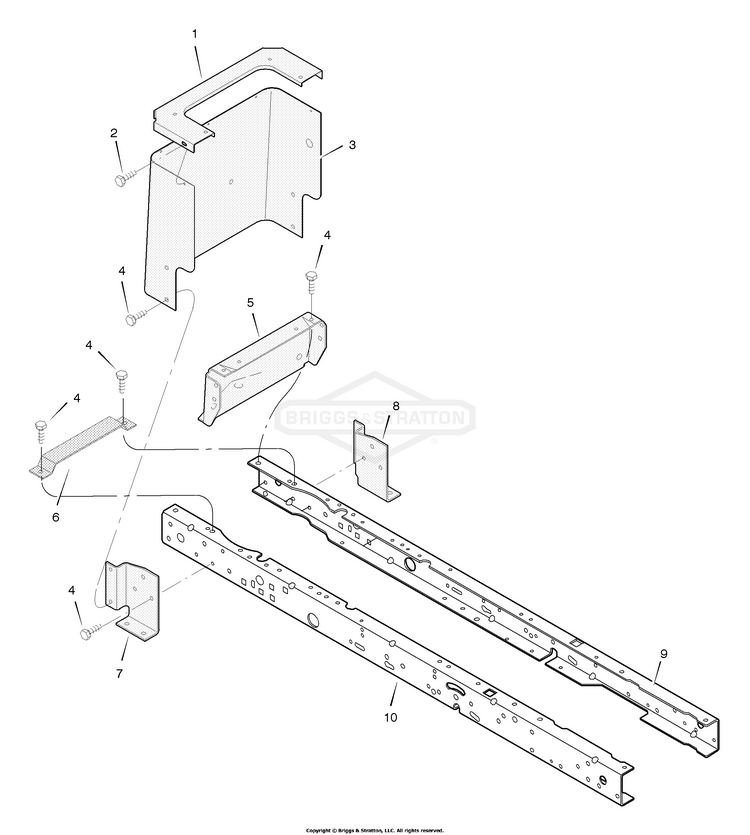

Rear Chassis

...
...
1
Plate, Top Rear BS-094186E549
...
2
SCREW, Thread Forming BS-26X270MA
...
3
Plate, Rear BS-1001906E549
...
4
Screw BS-26X249MA
...
5
Plate, Hitch BS-1001002E701
...
6
Bracket, Support BS-690482E701
...
7
Bracket, Right Transaxle BS-1001891E701MA
...
8
Bracket, Left Transaxle BS-1001890E701MA
...
9
Frame, Left BS-1001927E701
...
10
RAIL - FRAME RH BS-1001928E701MA
Schematic Image Zoomed
