468600x43A Murray - Lawn Tractor (2004)

Model: 468600x43A

Back To Assemblies

Save Part Not Listed?
product name

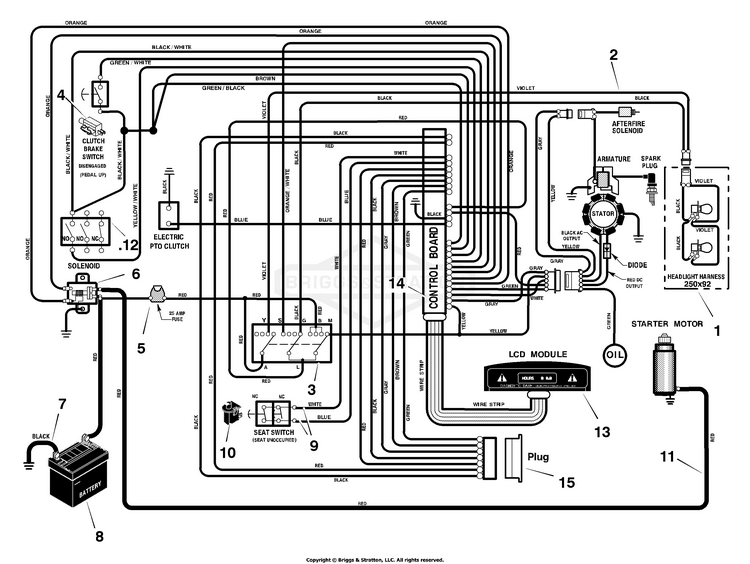

Electrical System

...
...
1
Harness, Light Wire BS-250X92MA
...
--
Socket, Light BS-10101716
...
--
BULB-HEADLIGHT 1 BS-1677371SM
...
2
Harness, Rear Wiring BS-250X134
...
3
Switch, Ignition BS-092556MA
...
--
Key, Ignition BS-020729
...
--
SET, Washer/Nut BS-847144
...
--
CAP, Switch BS-847150
...
4
Switch, Clutch Limit BS-1001575MA
...
5
Fuse BS-302031MA
...
--
Holder, Fuse BS-407078MA
...
6
Solenoid BS-1001904MA
...
--
Screw, Mounting BS-26X229MA
...
--
NUT, 1/4-20, NYLOCK BS-703232
...
7
Cable, Battery Ground BS-024X32MA
...
--
Screw, Ground Cable BS-26X229MA
...
8
Battery BS-021075
...
--
BOLT, 1/4-20X0.625 BS-703841
...
--
Wingnut BS-014X79MA
...
9
Harness, Front Wiring BS-250X135
...
10
SWITCH, SEAT BS-7023354YP
...
11
Cable BS-024X31MA
...
12
Switch, Electric PTO BS-094927
...
13
Module, LCD BS-1001902MA
...
14
Module, Control Board BS-1001903
...
--
Key, English Electrical BS-1001908MA
...
--
Key, French Electrical BS-1001909
...
15
Plug, Electrical BS-1001915MA
