46580x8A Murray - Lawn Tractor (1999)

Model: 46580x8A

Back To Assemblies

Save Part Not Listed?
product name

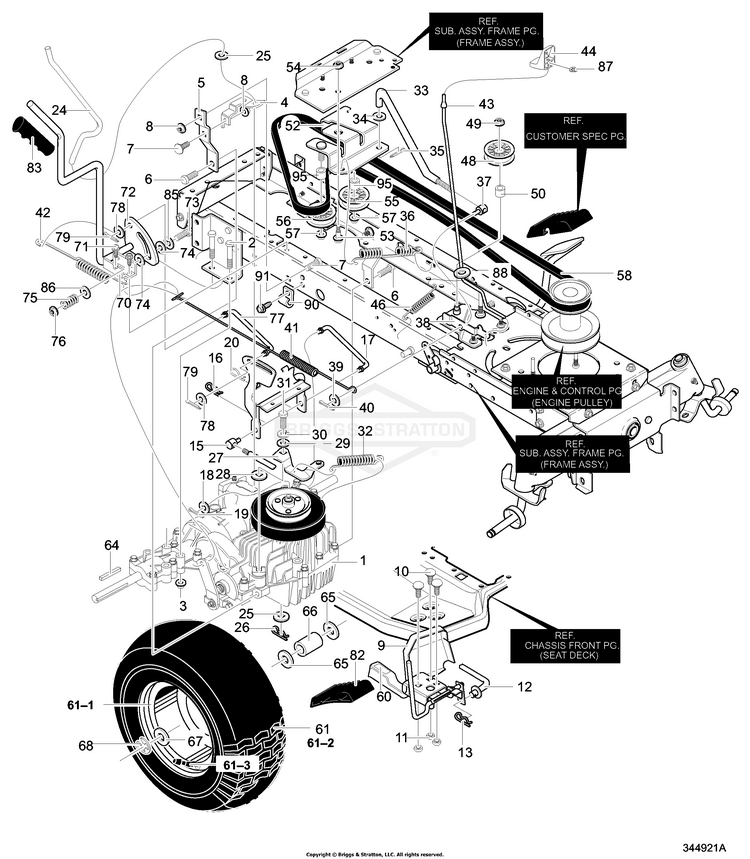

Motion Drive

...
...
1
Transaxle, Peerless ** (VST205) BS-94801
...
2
SCREW, 5/16-18 x 2.50 BS-711669
...
3
NUT, 5/16-18 BS-711634MA
...
4
BRACKET, DISCONNECT BS-94429-821
...
5
TORQUE STRAP -RIGHT BS-94432-821
...
6
SCREW, 5/16-18 x 0.75 BS-710268
...
7
BOLT, CARRIAGE 5/16-18X .63 BS-711661
...
8
NUT, 5/16-18 BS-711634MA
...
9
WP, PEDAL ASSY HYDRO BS-690013-821
...
10
BOLT, 5/16-18X .75 BS-711688MA
...
11
NUT, HEX 5/16-18 BS-710026
...
12
ROD, PEDAL LINK BS-95278
...
13
PIN, HAIR BS-711676
...
15
ADJUST NUT 1/2-13 BS-711594
...
16
PIN, 3/32 X 1.6 BS-703300
...
17
ROD HYDRO LINK BS-95279
...
18
WASHER, FLAT BS-711617
...
19
PIN, COTTER BS-071081
...
20
PIN, HAIR BS-711676
...
24
ROD, DISCONNECT BS-95298
...
25
WASHER, FLAT BS-711644MA
...
26
PIN, COTTER BS-071081
...
27
ARM, DISCONNECT BS-95299
...
28
WASHER BS-17X148MA
...
29
WASHER, FLAT BS-710657
...
30
WASHER BS-710249
...
31
SCREW, 1/4-28 X.75 BS-01X145MA
...
32
SCREEN-OUTLET BS-710329
...
33
ROD, CLUTCH BS-95297
...
34
WASHER, FLAT BS-711644MA
...
35
PIN, COTTER BS-071081
...
36
SPRING, CLUTCH BS-710707
...
37
NUT, ADJUSTING BS-711596
...
38
LATCH, PARKING BRAKE BS-690048
...
39
WASHER, FLAT BS-711623
...
40
PIN, COTTER BS-071081
...
41
SPRING, Extension BS-ORG-710333
...
42
SPRING, EXTENSION BS-710353
...
43
ROD- PARKING BRAKE BS-095108
...
44
PARKING BRAKE KNOB BS-095315MA
...
46
SPRING - EXTENSION BS-165X107MA
...
48
PULLEY, IDLER BS-690409MA
...
49
NUT BS-711920MA
...
50
SPACER 1/2 TO 17MM BS-690369MA
...
52
ASSEMBLY, BRACKET IDLER BS-95305
...
53
BOLT BS-711613MA
...
54
NUT, 3/8-16 BS-711622
...
55
PULLEY, IDLER BS-690409MA
...
56
PULLEY, IDLER BS-690410MA
...
57
NUT, 3/8-16 BS-711920MA
...
58
BELT, MOTION DRIVE HYDRO BS-710531
...
60
PAD, TOE SANDPAPER BS-093249
...
61
TIRE & RIM 23X9.50-12 BS-95196
...
61-1
VALVE STEM BS-338512
...
61-2
RIM BS-343665
...
61-3
TIRE BS-342117
...
--
HUB CAP BS-094618MA
...
64
KEY, SQUARE BS-52928MA
...
65
WASHER, FLAT BS-711648MA
...
66
SPACER BS-95274MA
...
67
WASHER, FLAT BS-711758
...
68
RING, E .750D .050T BS-0011X3MA
...
70
BRACKET, HAND CONTROL BS-94793-821
...
71
SCREW BS-711606MA
...
72
LEVER, HAND CONTROL BS-95306
...
73
BOLT BS-711599
...
74
WASHER, FRICTION BS-314944
...
75
SPRING - COMPRESSION BS-335689
...
76
NUT, 5/16-18 BS-711634MA
...
77
CYLINDER ASSEMBLY BS-699505
...
78
WASHER, FLAT BS-711644MA
...
79
PIN, COTTER BS-071081
...
82
PAD, SPEED CONTROL BS-094516
...
83
SCREW BS-94507
...
85
WASHER, FLAT BS-711589
...
86
WASHER, FLAT BS-710083
...
87
PUSHNUT BS-711691MA
...
88
WASHER BS-703332
...
90
RETAINER WIRE BS-711742
...
91
SCREW BS-711606MA
...
95
SPACER 1/2 TO 17MM BS-690369MA
