46580x89A Murray - Lawn Tractor (2000)

Model: 46580x89A

Back To Assemblies

Save Part Not Listed?
product name

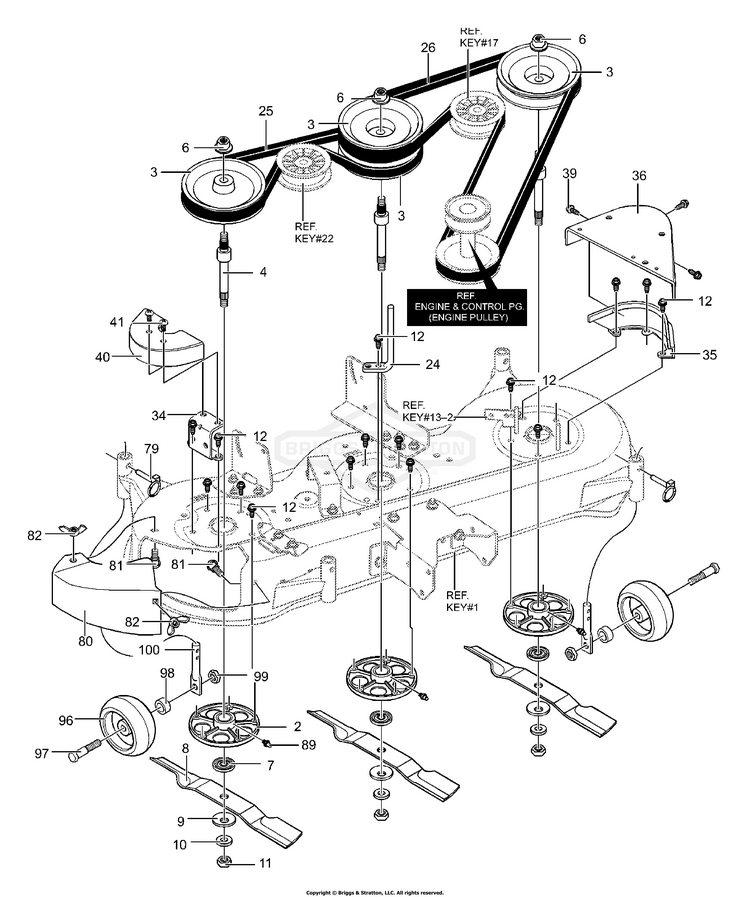

Deck Assembly (part 3)

...
...
2
HOUSING, JACKSHAFT BS-690488MA
...
3
PULLEY BS-95309MA
...
4
JACKSHAFT BS-095402
...
6
NUT, 9/16-18 BS-711626
...
7
HUB, BLADE ADAPTER BS-095416
...
8
BLADE, MULCHING BS-656631
...
9
WASHER BS-17X166MA
...
10
WASHER BS-17X165MA
...
11
NUT BS-15X100MA
...
12
SCREW-HEX WSHR HD TAP BS-2828635SM
...
24
ROD, BELT GUIDE BS-95280
...
25
BELT, (37X66) 46" DECK BS-710216
...
26
DIPSTICK BS-715589
...
34
BRACKET, PULLEY COVER BS-92140-821
...
35
BRACKET, PULLEY COVER BS-690221-821
...
36
COVER, LEFT PULLEY BS-94645-821
...
39
SCREW, 5/16-18X.5 BS-703985
...
40
COVER, RIGHT PULLEY BS-94607-821
...
41
SCREW BS-711620
...
79
PIN, LYNCH BS-711797MA
...
80
PLATE, BLOCK OFF MULCH BS-095086MA
...
81
BOLT, 5/16-18X .75 BS-711688MA
...
82
NUT, WING 5/16-18 BS-711604
...
89
ZERK, GREASE BS-690501MA
...
96
WHEEL, GAUGE BS-092265MA
...
97
BOLT BS-711657MA
...
98
SPACER BS-95188MA
...
99
NUT, HEX, 3/8-16 BS-703996
...
100
ROD, GAUGE BS-95187-821
