46580x89A Murray - Lawn Tractor (2000)

Model: 46580x89A

Back To Assemblies

Save Part Not Listed?
product name

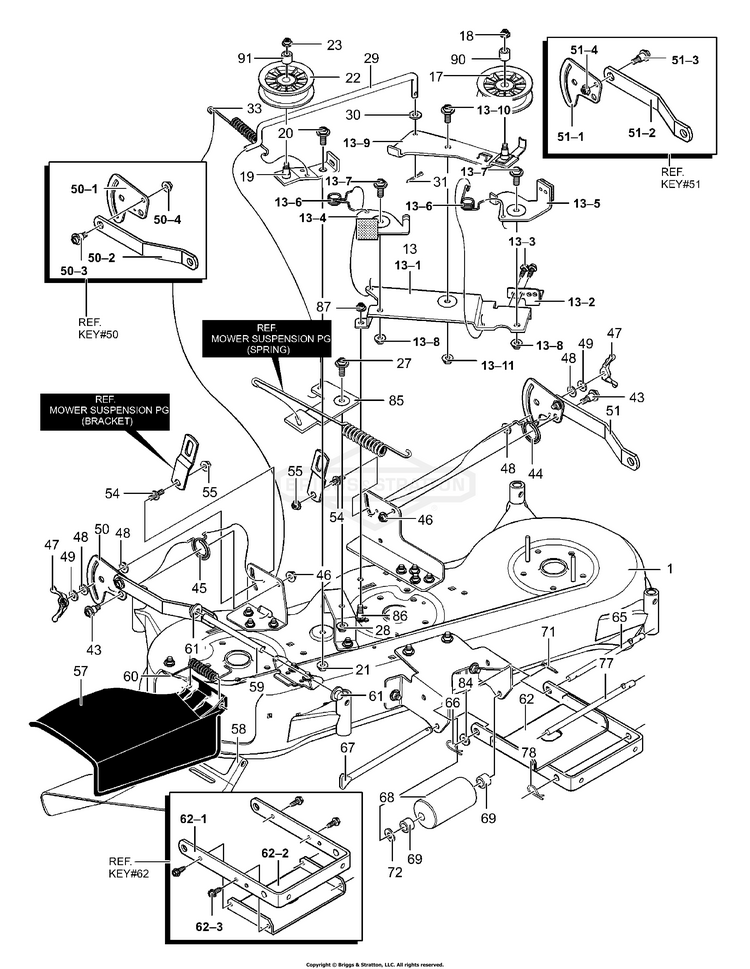

Deck Assembly (part 2)

...
...
1
46" MOWER DECK BS-341819-821
...
13
BRACKET, MOUNTING BS-94720-821
...
13-1
PLATE, BRAKE ARM BS-94596
...
13-2
SCREW BS-690664
...
13-3
SCREW BS-26X249MA
...
13-4
ASSEMBLY, LEFT BRAKE BS-94640
...
13-5
ASSEMBLY, BRAKE CENTER BS-94641
...
13-6
TORSION SPRING BS-710227
...
13-7
BOOT-SPARK PLUG BS-710634
...
13-8
NUT, CNTR LCK, 3/8-16 BS-703893
...
13-9
ASSSEMBLY, IDLER ARM BS-690579
...
13-10
BOOT-SPARK PLUG BS-710634
...
13-11
NUT, CNTR LCK, 3/8-16 BS-703893
...
17
PULLEY, IDLER BS-690451
...
18
NUT, 3/8-16 BS-711920MA
...
19
ASS'Y, RIGHT IDLER ARM BS-94639-821
...
20
BOLT BS-711613MA
...
21
NUT 3/8-16 BS-711622
...
22
PULLEY, IDLER BS-690452
...
23
NUT, 3/8-16 BS-711920MA
...
27
BOLT BS-711613MA
...
28
NUT, 3/8-16 BS-711622
...
29
LINK, BELLCRANK BS-95301
...
30
WASHER, FLAT BS-711644MA
...
31
PIN, COTTER BS-071081
...
33
SPRING, EXTENSION BS-710845
...
43
BOLT, SHOULDER BS-711611
...
44
SPRING, TORSION BS-710113
...
45
SPRING, TORSION BS-710112
...
46
NUT, 3/8-16 BS-711622
...
47
WINGNUT, 5/16-18 BS-711600
...
48
FRICTION PAD BS-094137MA
...
49
WASHER,FLAT .33 1. 16 BS-017X45MA
...
50
BRKT, RIGHT SUSPENSION BS-690490-821
...
50-1
PLATE, SUSPENSION BS-690127
...
50-2
BRKT, REAR SUSPENSION BS-94055
...
50-3
BOLT, SHOULDER BS-009X52MA
...
50-4
NUT, CNTR LCK, 3/8-16 BS-703893
...
51
BRKT, LEFT SUSPENSION BS-690489-821
...
51-1
PLATE, SUSPENSION BS-690127
...
51-2
BRKT, REAR SUSPENSION BS-94055
...
51-3
BOLT, SHOULDER BS-009X52MA
...
51-4
NUT, CNTR LCK, 3/8-16 BS-703893
...
54
PIN, HANGER BS-711595
...
55
NUT, 3/8-16 BS-711622
...
57
DEFLECTOR, CHUTE BS-092100MA
...
58
DEFLECTOR, INNER CHUTE BS-92103-821
...
59
ROD, DEFLECTOR BS-95281
...
60
SPRING, TORSION BS-710220
...
61
NUT, PUSH CAP BS-711627MA
...
62
BRACKET & STIFFENER BS-690058-821
...
62-1
BRKT, FRONT SUSPENSION BS-94058
...
62-2
STIFFENER BS-95057
...
62-3
SCREW BS-26X249MA
...
65
ROD, DECK BS-95271
...
66
PIN, HAIR BS-711676
...
67
ROD, ROLLER BS-95302MA
...
68
ROLLER BS-310071MA
...
69
SPACER BS-95188MA
...
71
PIN, COTTER BS-711635
...
72
WASHER, WAVE BS-711739
...
77
ROD, HANGER BS-95295
...
78
PIN, HAIR BS-711676
...
84
WASHER, FLAT BS-711616
...
85
BELLCRANK BS-94603-821
...
86
BOLT BS-711661
...
87
NUT, 5/16-18 BS-711634MA
...
90
SPACER 1/2 TO 17MM BS-690369MA
...
91
SPACER 1/2 TO 17MM BS-690369MA
