46580x89A Murray - Lawn Tractor (2000)

Model: 46580x89A

Back To Assemblies

Save Part Not Listed?
product name

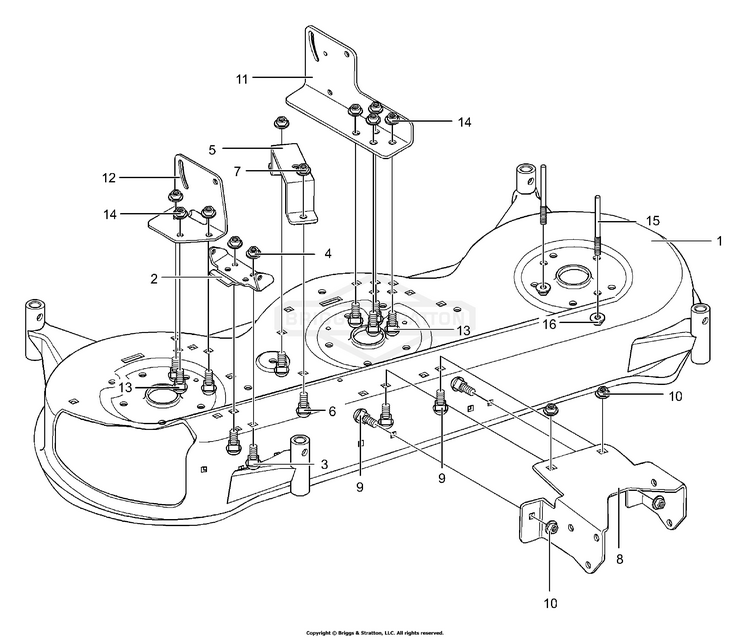

Deck Assembly (part 1)

...
...
1
MOWER DECK, 46" BS-710145
...
2
HINGE, CHUTE BRACKET BS-92104
...
3
BOLT BS-703159
...
4
NUT, HEX FLNG,5/16-18 BS-704067
...
5
BRACKET, BELL CRANK BS-94601
...
6
BOLT BS-703159
...
7
NUT, 5/16-18, GR5 BS-703409
...
8
BRACKET, FRONT DECK BS-94997
...
9
BOLT BS-703159
...
10
NUT, 5/16-18, GR5 BS-703409
...
11
BRACKET, LEFT LIFTER BS-94600
...
12
BRACKET, RIGHT REAR BS-94598
...
13
BOLT BS-703159
...
14
NUT, 5/16-18, GR5 BS-703409
...
15
SCREW, GUIDE BS-091754MA
...
16
NUT, 5/16-18, GR5 BS-703409
