46568A Murray - Lawn Tractor (1997)

Model: 46568A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

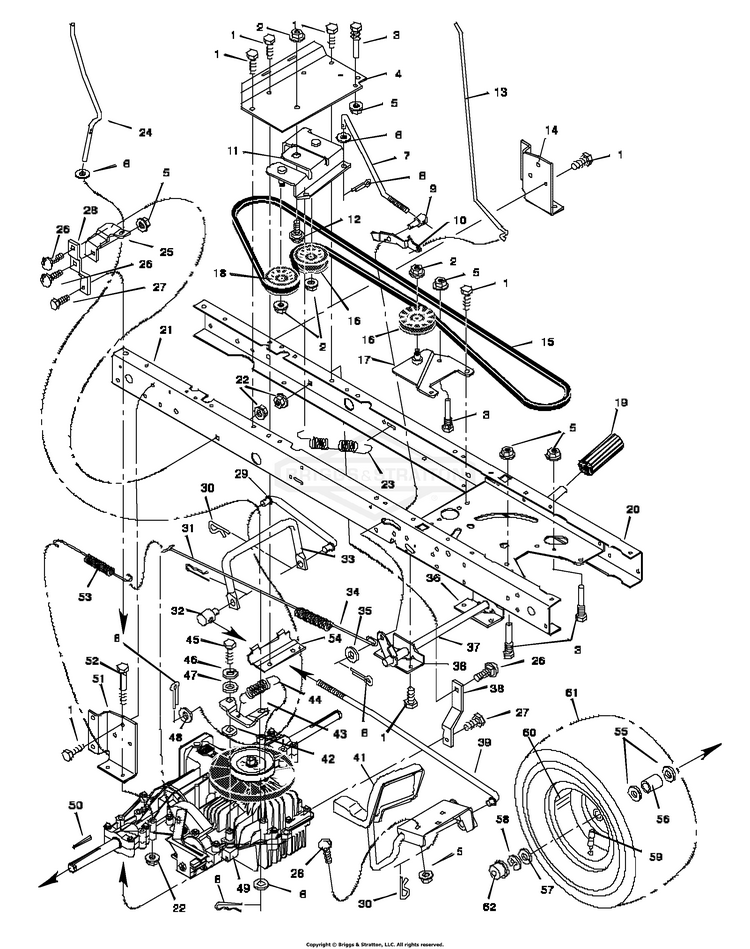

Motion Drive

...
...
1
Screw BS-26X249MA
...
2
NUT, CNTR LCK, 3/8-16 BS-703893
...
3
GUIDE SCREW - ZINC BS-093349MA
...
4
Bracket, Idler BS-94431E701
...
5
NUT, 5/16-18, GR5 BS-703409
...
6
WASHER, FLAT 5/16 BS-704015
...
7
Rod, Clutch BS-094417 Z
...
8
PIN, COTTER, 3/32X.75 BS-703312
...
9
Adjuster BS-094646
...
10
Latch, Parking Brake BS-094045 Z
...
11
Bracket Assembly, Idler BS-094411 Z
...
12
Bolt, Shoulder BS-009X39MA
...
13
Rod, Parking Brake BS-094152 Z
...
14
Bracket, Transaxle BS-094185E701MA
...
15
Belt BS-037X61AMA
...
16
Pulley BS-421409MA
...
17
Arm Assembly, Idler BS-94409E701
...
18
Pulley, Idler BS-091178
...
19
PEDAL-BRAKE BLACK RUB BS-1727261SM
...
20
Frame, Left BS-94001 E701
...
21
Frame, Right BS-94000E701
...
22
NUT, HEX FLNG,5/16-18 BS-704067
...
23
Spring, Extension BS-165X123
...
24
Rod, Disconnect BS-094428 Z
...
25
Bracket, Disconnect BS-94429E701
...
26
BOLT BS-703159
...
27
Screw BS-26X216MA
...
28
Strap, Right Torque BS-94432E701
...
29
Rod, Link BS-94426E701
...
30
PIN, 3/32 X 1.6 BS-703300
...
31
PIN, 3/32 X 1.6 BS-703300
...
32
NUT, Adjusting BS-092132ZMA
...
33
Rod, Yoke BS-94425E701
...
34
Spring, Extension BS-165X115MA
...
35
WASHER, FLAT .406X.81 BS-71072MA
...
36
Bracket, Pivot BS-94035E701
...
37
Lever, Clutch/Brake BS-94038E701
...
38
STRAP, TRANSAXLE, LH BS-7300845BMYP
...
39
Rod, Link BS-94424
...
41
Pedal, Speed Control BS-94422E701
...
42
Washer BS-17X148MA
...
43
Arm, Disconnect BS-094430 Z
...
44
SPRING, Extension BS-1736469YP
...
45
Bolt BS-01X145MA
...
46
Lockwasher BS-018X32MA
...
47
Washer BS-17X180MA
...
48
Washer BS-17X151
...
50
Key, Square BS-021553MA
...
51
Bracket, Right Transaxle BS-094184E701MA
...
52
SCREW BS-703868
...
53
Spring, Extension BS-165X92MA
...
54
Clamp, Transaxle BS-94434E701
...
55
Washer BS-17X160MA
...
56
Spacer BS-87X105
...
57
Washer BS-17X195MA
...
58
RING, E .750D .050T BS-0011X3MA
...
59
VALVE STM&CP,TR41 SE BS-024373MA
...
60
Wheel & Tire Assembly BS-92291601
...
61
Tire * BS-024380
...
--
Tube BS-407049MA
...
62
HUB CAP (Optional) BS-094618MA
