46568A Murray - Lawn Tractor (1997)

Model: 46568A

Back To Assemblies

Save Part Not Listed?
product name

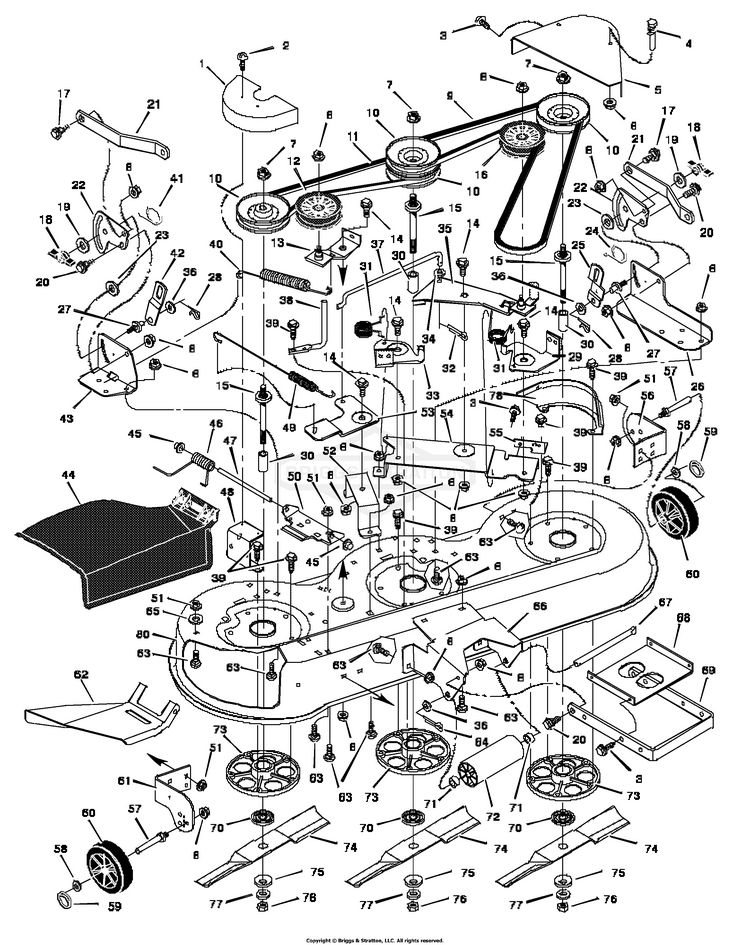

Mower Housing

...
...
1
COVER, PULLEY, RH BS-7300857BMYP
...
2
SCREW, #10-16X.625 BS-703994
...
3
Screw BS-26X249MA
...
4
GUIDE SCREW - ZINC BS-093349MA
...
5
Cover, Left Pulley BS-94605E701
...
6
NUT, 5/16-18, GR5 BS-703409
...
7
Nut, Flange BS-15X121
...
8
NUT, CNTR LCK, 3/8-16 BS-703893
...
9
Belt, Primary BS-037X89A
...
10
PULLEY BS-95309MA
...
11
Belt, Secondary BS-037X66MA
...
12
Pulley, Idler BS-091590
...
13
Arm, Idler BS-94639
...
14
Bolt, Shoulder BS-009X39MA
...
15
Shaft, Splined BS-094129
...
16
PULLEY, IDLER BS-091801MA
...
17
Bolt, Shoulder BS-009X52MA
...
18
WINGKNOB, 5/16-18 BS-703065
...
19
WASHER,FLAT .33 1. 16 BS-017X45MA
...
20
BOLT-SHD.38-16X.499D BS-009X51MA
...
21
Bracket, Rear Suspension BS-094055E701MA
...
22
Plate, Suspension BS-94128E701
...
23
FRICTION PAD BS-094137MA
...
24
Spring BS-166X43MA
...
25
Link, Left Lift BS-94611E701
...
26
Bracket, Left Lift BS-94600E701
...
27
Pin, Hanger BS-094064
...
28
PIN, 3/32 X 1.6 BS-703300
...
29
Brake Assembly, Left BS-94640
...
30
Spacer BS-094130MA
...
31
Spring BS-166X41MA
...
32
PIN, COTTER, 3/32X.75 BS-703312
...
33
Brake Assembly, Right BS-94641
...
34
WASHER, FLAT 5/16 BS-704015
...
35
Idler, Arm BS-94644E701
...
36
Washer BS-17X103MA
...
37
Link, Bell Crank BS-094606 Z
...
38
Guide, Belt BS-092116 Z
...
39
SCREW-HEX WSHR HD TAP BS-2828635SM
...
40
Spring, Extension BS-165X79MA
...
41
Spring, Torsion BS-166X42MA
...
42
LIFTER LINK, RIGHT BS-094053E701MA
...
43
Bracket, Right Lift BS-94598E701
...
44
Deflector, Chute BS-092100MA
...
45
PUSHNUT, 3/8 BS-703948
...
46
Spring, Torsion BS-166X34MA
...
47
Rod, Deflector BS-092159ZMA
...
48
Bracket, Cover BS-92140E701
...
49
Spring, Extension BS-165X120MA
...
50
Bracket, Hinge BS-092104E701MA
...
51
NUT, HEX FLNG,5/16-18 BS-704067
...
52
Bracket, Bell Crank BS-094601E701
...
53
Crank, Bell BS-094603E701MA
...
54
Plate, Brake Arm BS-94596E701
...
55
BRKT, BRAKE PLATE BS-7300799ZYP
...
56
Bracket, Left Gauge Wheel BS-94919E701
...
57
BOLT, Gauge Wheel BS-094025MA
...
58
Washer BS-017X91MA
...
59
Ring, Locking BS-031X11MA
...
60
Wheel, Gauge BS-092683MA
...
61
Bracket, Right Gauge Wheel BS-094918E701MA
...
62
Deflector, Inside BS-092103E701MA
...
63
BOLT BS-703159
...
64
Pin, Cotter BS-030X49MA
...
65
Washer BS-017X57MA
...
66
Bracket, Front Deck BS-94599E701
...
67
Rod, Roller BS-094642 Z
...
68
Stiffener BS-94604E701
...
69
Bracket, Suspension BS-94058E701
...
70
Adapter, Blade BS-092466MA
...
71
Spacer BS-091925MA
...
72
Roller BS-092137MA
...
73
Housing, Jackshaft BS-092574
...
74
Blade BS-092117E701MA
...
75
Washer, Belleville BS-17X166MA
...
76
Nut BS-15X100MA
...
77
Washer BS-17X165MA
...
78
Bracket, Pulley Cover BS-94643E701
...
80
Housing, Blade (Includes Ref. No. 17, 18, 30, 31, 32, 33, 45, 46, 53, 54, 55, and 56) BS-94577E701
