46562x8B Murray - Lawn Tractor (1997)

Model: 46562x8B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

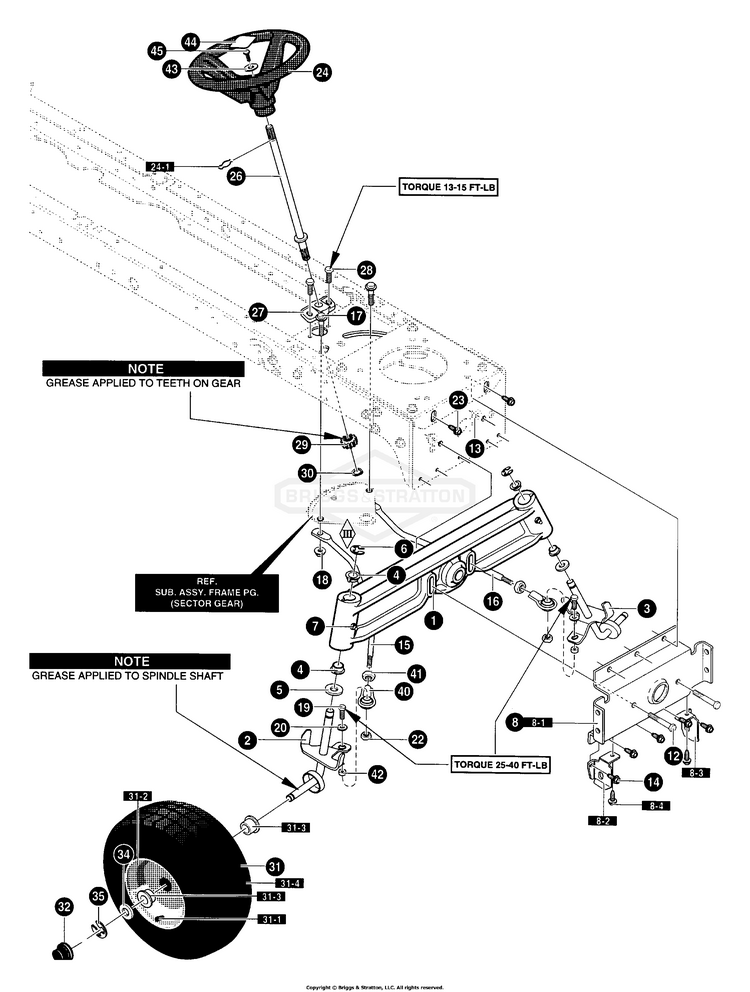

Steering Assembly

...
...
1
AXLE, FRONT ASSEMBLY BS-94203E717
...
2
SPINDLE, RH BS-94732E717
...
3
SPINDLE, LH BS-94733E717
...
4
BEARING, SPINDLE BS-092527MA
...
5
WASHER.76-1.2 13G FL BS-17X113MA
...
6
RING, E .750D .050T BS-0011X3MA
...
7
ZERK, GREASE FITTING BS-092530MA
...
8
FRONT AXLE/DECK HANGER BS-341490E717
...
8-1
HANGER, AXLE BS-94007
...
8-2
SCREW BS-93920
...
8-3
HANGER, DECK LH BS-94027
...
8-4
SCREW, 5/16-18 x 0.75 BS-26X249MA
...
12
SCREW, 5/16-24 x 2.75 BS-01X146MA
...
13
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
14
SCREW, 5/16-18 x 0.75 BS-26X249MA
...
15
ROD, DRAG LINK BS-94767E717
...
16
ROD, DRAG LINK BS-94768E717
...
17
BOLT BS-009X57MA
...
18
NUT, CNTR LCK, 3/8-16 BS-703893
...
19
BOLT BS-310364
...
20
WASHER, FLAT BS-22265MA
...
22
NUT, CNTR LCK, 3/8-16 BS-703893
...
23
SCREW, 5/16-18 x 0.75 BS-26X249MA
...
24
STEERING WHEEL BS-094806
...
24-1
RETAINER, SPRING BS-094131MA
...
26
SHAFT, STEERING BS-094520
...
27
BEARING- LOWER BS-094124MA
...
28
SCREW, 5/16-18 x 0.75 BS-26X267MA
...
29
GEAR, PINNION BS-094122
...
30
RING, RET BS-011X25MA
...
31
TIRE & RIM 15X6- 6 BS-94509-601
...
31-1
VALVE STEM BS-338512
...
31-2
RIM, CARLISLE BS-338517MA
...
31-3
BEARING BS-338513
...
31-4
TIRE, 15X6X6 BS-338514
...
32
HUB CAP BS-094618MA
...
34
WASHER BS-17X195MA
...
35
RING, E .750D .050T BS-0011X3MA
...
40
TIE ROD BS-094766MA
...
41
NUT, 1/2-20 Hex, GR 5 or B BS-7091939YP
...
42
SPACER, SLEEVE BS-319618MA
...
43
FLATWASHER BS-57626
...
44
INSERT, STEERING WHEEL BS-711325MA
...
45
SCREW BS-001X38MA
