46562x8A Murray - Lawn Tractor (1997)

Model: 46562x8A

Back To Assemblies

Save Part Not Listed?
product name

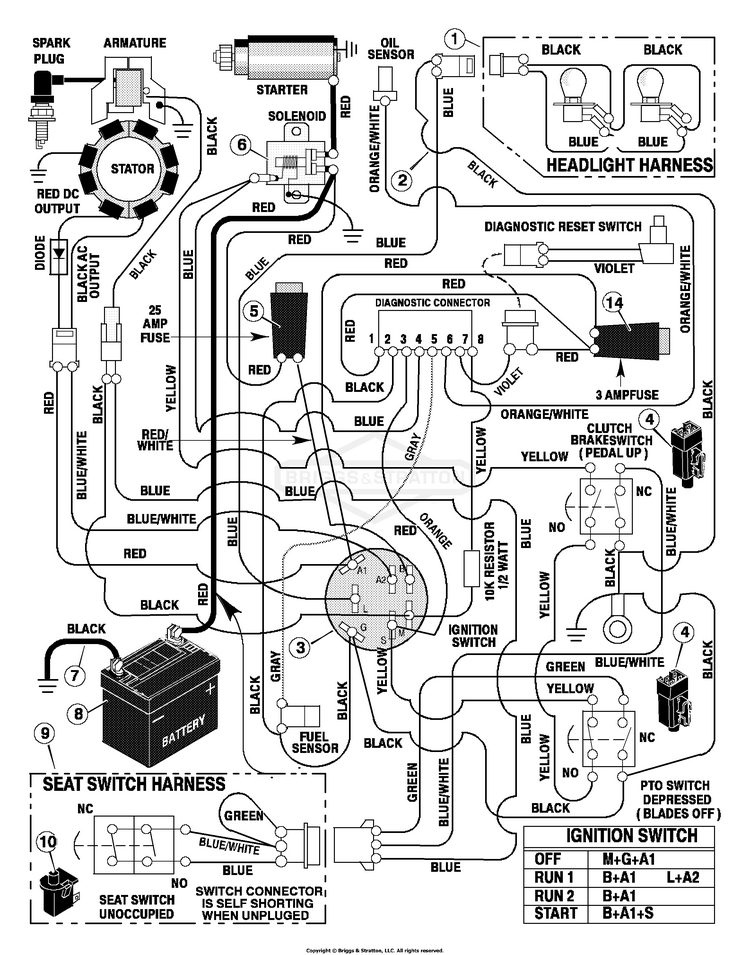

Electrical System (part 1)

...
...
1
Harness, Light Wire BS-094780
...
--
Socket, Light BS-092372
...
--
Bulb, Light BS-780216
...
2
Harness, Chassis Wire BS-094995
...
3
Switch, Ignition BS-094762
...
--
KEY-IGNITIOM W/PLASTI BS-1714054SM
...
4
Switch, Limit BS-094136MA
...
5
Fuse, 25 AMP BS-302031MA
...
--
Holder, Fuse BS-407078MA
...
6
Solenoid BS-094613
...
--
Screw, Mounting BS-26X229MA
...
--
NUT, 1/4-20, NYLOCK BS-703232
...
7
Cable, Battery Ground BS-024X32MA
...
--
Screw, Ground Cable BS-26X213MA
...
8
Battery BS-092691
...
--
Acid, Battery (Electrolyte) BS-093292
...
--
BOLT, 1/4-20X0.625 BS-703841
...
--
Wingnut BS-014X79MA
...
9
Harness, Seat Switch Wire BS-094741
...
10
SWITCH, SEAT BS-7023354YP
