465622x99A Murray - Lawn Tractor (2002)

Model: 465622x99A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

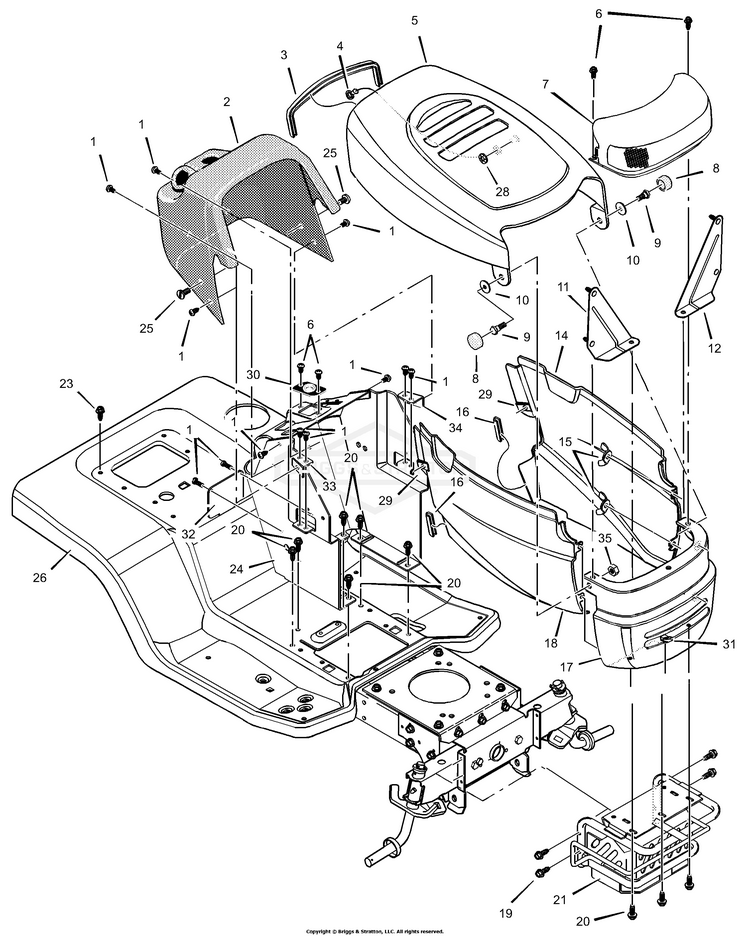

Chassis Front

...
...
1
SCREW, Thread Forming BS-26X270MA
...
2
Dash BS-1001114
...
3
TRIM,BLACK W/ADHESIVE BS-1001221MA
...
4
Cable BS-643129
...
5
Hood Assembly BS-690052E735
...
6
Screw BS-26X238MA
...
7
PIN, DETENT, W/LANYARD BS-95234GS
...
8
Cap, Pivot BS-690113MA
...
9
Bolt, Shoulder BS-009X49MA
...
10
Base, Pivot BS-690114
...
11
Brace, Right Grille Assembly BS-1001169E731
...
12
Brace, Left Grille Assembly BS-1001171E731
...
14
Panel, Left Side BS-094457E735
...
15
Wingnut BS-014X79MA
...
16
TRIM,BLACK W/ADHESIVE BS-1001221MA
...
17
Grille BS-094455E735
...
18
Panel, Right Side BS-094458E735
...
19
Screw BS-26X267MA
...
20
Screw BS-26X249MA
...
21
Mount, Grille/Bumper BS-094529E731
...
23
SCREW.25-20 S-T BS-26X263MA
...
24
Console BS-095173E735
...
25
Screw BS-26X239MA
...
26
Deck Seat BS-094629E735
...
29
Cap, Push BS-028X33MA
...
30
Bearing, Steering BS-1001491MA
...
31
U-Nut BS-028X57
...
32
Panel, Access BS-093007E735
...
33
Bracket, Right Console BS-094464E735
...
34
Bracket, Left Console BS-094465E735
...
35
NUT, CNTR LCK, 3/8-16 BS-703893
...
--
Book, Instruction BS-F-020723L
Schematic Image Zoomed
