465621x89A Murray - Lawn Tractor (2002)

Model: 465621x89A

Back To Assemblies

Save Part Not Listed?
product name

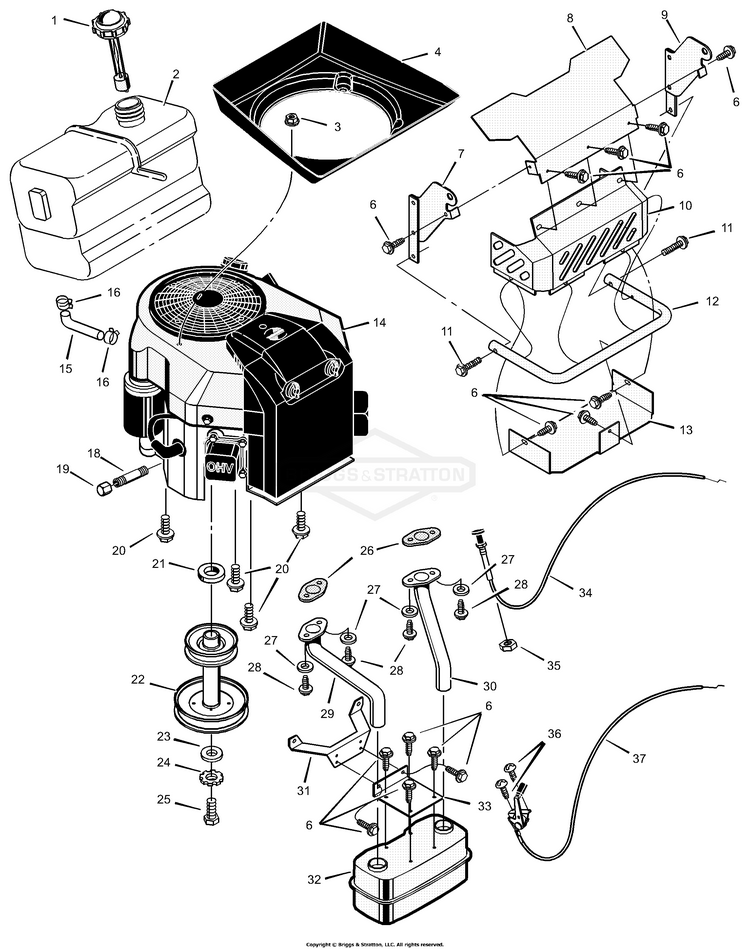

Engine Mount Assembly

...
...
1
Cap, Fuel BS-1001279MA
...
2
Tank, Fuel BS-093148
...
3
NUT, 1/4-20, NYLOCK BS-703232
...
4
Plenum, Air Intake BS-1001040
...
6
SCREW.25-20 S-T BS-26X263MA
...
7
Assembly, Right Grille Support BS-690546E700
...
8
Shield, Heat BS-690535
...
9
Assembly, Left Grille Support BS-690547E700
...
10
Shield, Heat BS-095090
...
11
Screw BS-26X290
...
12
Guard BS-690540
...
13
Shield, Lower BS-094958
...
15
Line, Fuel (17 inches long) BS-690333MA
...
16
CLAMP, Hose BS-791850
...
18
Pipe, Oil Drain BS-092279
...
19
Cap, Oil Drain BS-021651
...
20
SCREW-HEX WSHR HD TAP BS-2828635SM
...
21
Spacer BS-093077MA
...
22
Pulley, Stack BS-690507MA
...
23
WASHER.46.97.25 FLAT BS-17X170MA
...
24
Lockwasher BS-019X35MA
...
25
Bolt BS-01X140MA
...
26
Gasket BS-711851MA
...
27
WASHER, 5/16" LOCK BS-5025170SM
...
28
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
29
Tube, Right Exhaust BS-1001038
...
30
Tube, Left Exhaust BS-1001039
...
31
BRKT - MUFF MTG HP BS-690537E701MA
...
32
Muffler BS-093259MA
...
33
Bracket, Muffler BS-690538E701MA
...
34
Choke BS-690401
...
35
NUT, 3/8-16 BS-703333
...
36
Screw BS-26X201MA
...
37
Control, Throttle BS-093165MA
