465618x48A Murray - Lawn Tractor (2003)

Model: 465618x48A

Back To Assemblies

Save Part Not Listed?
product name

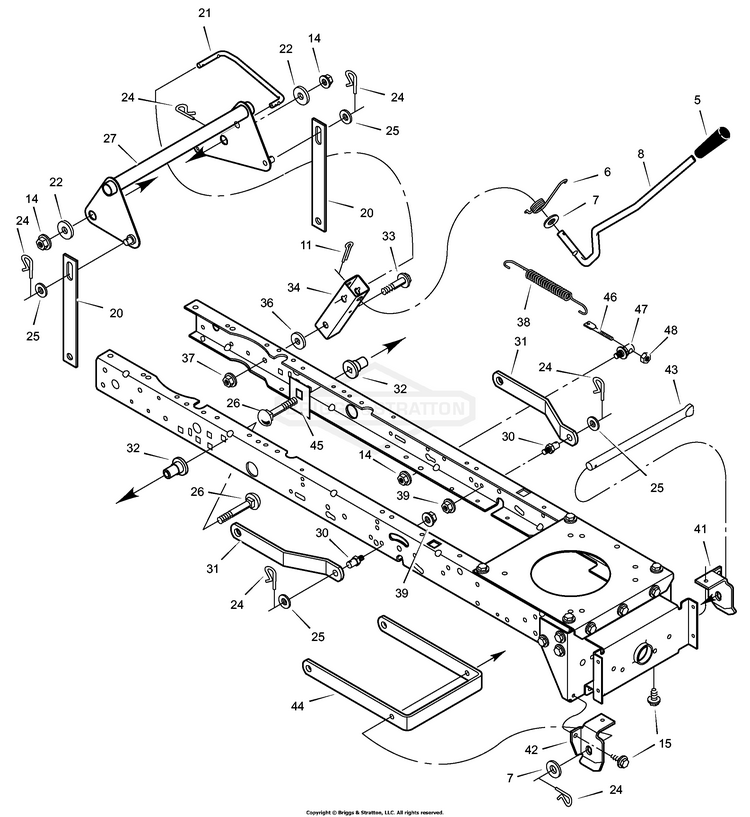

Mower Housing Suspension

...
...
5
GRIP BS-1753233YP
...
6
Spring BS-166X40MA
...
7
Washer BS-17X103MA
...
8
Lever, Lift BS-690533MA
...
11
PIN, COTTER, 3/32X.75 BS-703312
...
14
NUT, CNTR LCK, 3/8-16 BS-703893
...
15
Screw BS-26X249MA
...
20
Link, Lift BS-690212E700
...
21
Link, Lift Handle BS-690122E700
...
22
Washer BS-17X168ZMA
...
24
PIN, 3/32 X 1.6 BS-703300
...
25
Washer BS-017X91 Z
...
26
Bolt, Carriage BS-002X85MA
...
27
Lever Assembly, Lift BS-1001111E700MA
...
30
PIN, 3/8-16 BS-704054
...
31
Bracket, Rear Suspension BS-094055E700
...
32
Spacer, Lifter BS-690151MA
...
33
Bolt, Shoulder BS-009X53MA
...
34
Bracket, Pivot BS-094015E700
...
36
Washer BS-17X191MA
...
37
NUT, CNTR LCK, 3/8-16 BS-703893
...
38
Spring BS-165X133MA
...
39
NUT, 3/8-16 BS-703333
...
41
Hanger, Left Deck BS-094027E700
...
42
Hanger, Right Deck BS-094026E700
...
43
Rod, Hanger BS-094158ZMA
...
44
Bracket, Suspension BS-690539E700
...
45
Plate, Stiffening BS-1001098E700
...
46
Stud, Spring Mount BS-094042ZMA
...
47
Stud, Swivel BS-690182MA
...
48
NUT, HEX FLNG,5/16-18 BS-704067
