465617x51A Murray - Lawn Tractor (2007)

Model: 465617x51A

Back To Assemblies

Save Part Not Listed?
product name

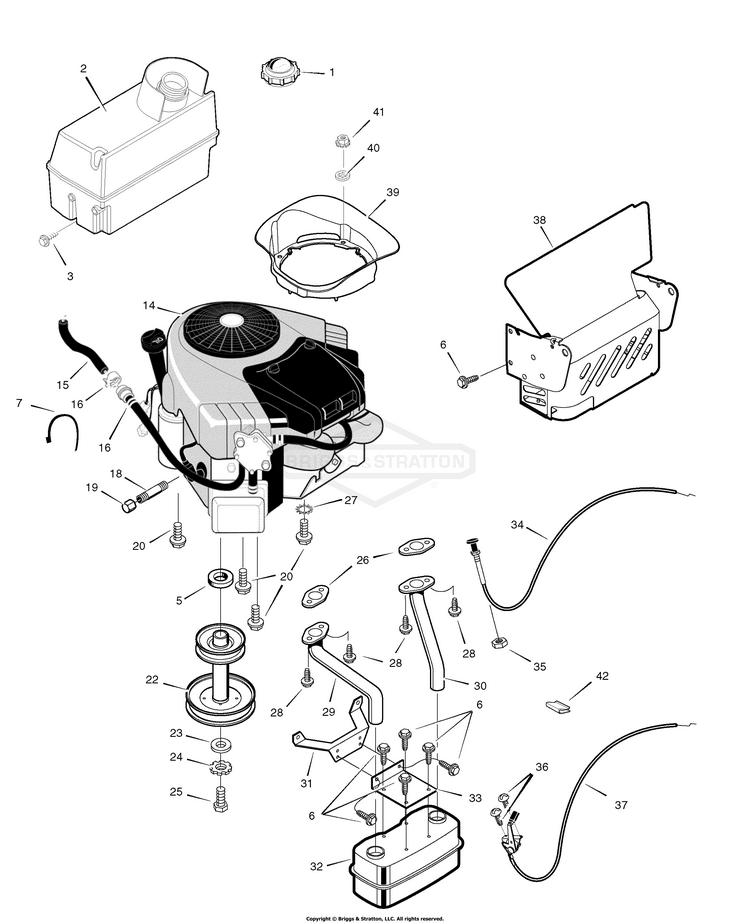

Engine Mount

...
...
1
FUEL CAP (Included with Ref. No. 2) BS-092317MA
...
2
FUEL KIT 2.8 BS-7601093MA
...
3
Screw BS-26X253MA
...
5
Spacer, Engine BS-093077MA
...
6
SCREW.25-20 S-T BS-26X263MA
...
7
Tie Strap BS-032618MA
...
15
Fuel Line (Must cut to length) BS-7601033MA
...
16
CLAMP, Hose (Included with Ref. No. 2) BS-791850
...
18
Pipe, Oil Drain BS-092279MA
...
19
Cap, Oil Drain BS-021651ZMA
...
20
SCREW-HEX WSHR HD TAP BS-2828635SM
...
22
Pulley, Stack BS-1001136MA
...
23
WASHER.46.97.25 FLAT BS-17X170MA
...
24
Lockwasher BS-019X35MA
...
25
Bolt BS-01X140MA
...
26
Gasket BS-711851MA
...
27
WASHER, EXT, 3/8 BS-703864
...
28
Bolt BS-06X103MA
...
29
Tube, Right Exhaust BS-690541MA
...
30
Tube, Left Exhaust BS-690542MA
...
31
BRKT - MUFF MTG HP BS-690537E701MA
...
32
Muffler BS-093259MA
...
33
Bracket, Muffler BS-690538E701MA
...
34
Choke BS-690401MA
...
35
NUT, 3/8-16 BS-703333
...
36
Screw BS-26X201MA
...
37
Control, Throttle BS-093165MA
...
38
HEAT SHIELD BS-1001920E701MA
...
39
Plenum BS-1001588MA
...
40
Speed Nut BS-028X44MA
...
41
NUT, HEX, KEPS,1/4-20 BS-703914
...
42
Clip Wire BS-055939MA
