465615x99A Murray - Lawn Tractor (2001)

Model: 465615x99A

Back To Assemblies

Save Part Not Listed?
product name

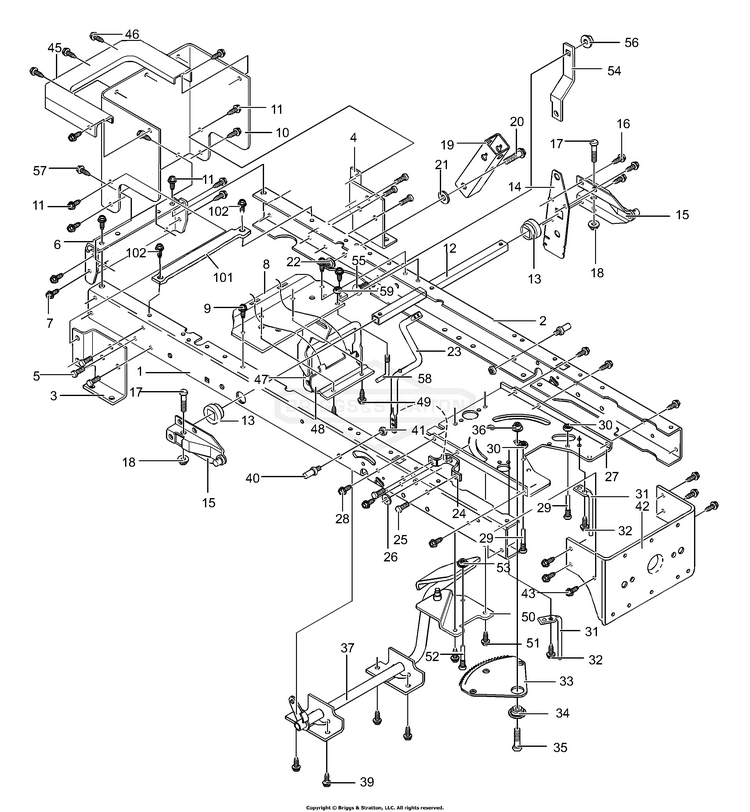

Frame Assembly (part 1)

...
...
1
RAIL-FRAME RH SHORT BS-95110
...
2
RAIL-FRAME LH SHORT BS-95111
...
3
BRACKET-TRANSAXLE RH BS-94184
...
4
BRACKET-TRANSAXLE LH BS-94185
...
5
SCREW-5/16-18X.75 BS-26X249MA
...
6
PLATE BS-1001002
...
7
SCREW-5/16-18X.75 BS-26X249MA
...
8
BRACKET, IDLER BS-94431
...
9
SCREW-5/16-18X.75 BS-26X249MA
...
10
HEAD-CYLINDER BS-799072
...
11
SCREW-5/16-18X.75 BS-26X249MA
...
12
SCREW BS-690837
...
13
BUSHING - LIFT TUBE BS-094065MA
...
14
PLATE-LIFT ARM BS-94030
...
15
LIFT ARM LEVER BS-94180
...
16
SCREW .31X50 BS-026X49MA
...
17
SCREW, 5/16-24 x 1.25 BS-001X74MA
...
18
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
19
BRACKET, SQ TUBE PIVOT BS-094015
...
20
BOLT BS-009X53MA
...
21
WASHER, FLAT BS-17X191MA
...
22
NUT, CNTR LCK, 3/8-16 BS-703893
...
23
CRANK, PTO BS-690394
...
24
BRACKET, BELL CRANK BS-94005
...
25
SCREW-5/16-18X.75 BS-26X249MA
...
26
WASHER, FLAT BS-120395
...
27
PLATE, STEERING BS-1001024
...
28
SCREW-5/16-18X.75 BS-26X249MA
...
29
GUIDE SCREW - ZINC BS-093349MA
...
30
NUT, 5/16-18, GR5 BS-703409
...
31
BUMPER, PULLEY BS-7091797YP
...
32
SCREW-HEX WSHR HD TAP BS-2828635SM
...
33
GEAR, SECTOR BS-094121MA
...
34
BEARING, SECTOR GEAR BS-094123MA
...
35
BOLT BS-5025011X8FS
...
36
NUT, 5/16 BS-15X113MA
...
37
PEDAL BS-94632
...
39
SCREW-5/16-18X.75 BS-26X249MA
...
40
PIN, 3/8-16 BS-704054
...
41
NUT, 3/8-16 BS-45171MA
...
42
BRACKET, HANGER REAR BS-94013
...
43
SCREW-5/16-18X.75 BS-26X249MA
...
45
SCREW BS-690367
...
46
SCREW, Thread Forming BS-26X270MA
...
47
YOKE ASSY-TRUNNION BS-94791
...
48
CLAMP, TRUNNION PIVOT BS-94434
...
49
SCREW-5/16-18X.75 BS-26X249MA
...
50
SCREW BS-691685
...
51
SCREW, 5/16-18 x 0.50 BS-26X277MA
...
52
GUIDE SCREW - ZINC BS-093349MA
...
53
NUT, 5/16-18, GR5 BS-703409
...
54
STRAP, TRANSAXLE, LH BS-7300845BMYP
...
55
BOLT BS-703159
...
56
NUT, HEX FLNG,5/16-18 BS-704067
...
57
SCREW-HEX WSHR HD TAP BS-2828635SM
...
58
SCREW - GUIDE BS-094781MA
...
59
NUT, 5/16-18, GR5 BS-703409
...
101
BRKT, BATTERY SUPPORT BS-690482
...
102
SCREW-5/16-18X.75 BS-26X249MA
