465615x99A Murray - Lawn Tractor (2001)

Model: 465615x99A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

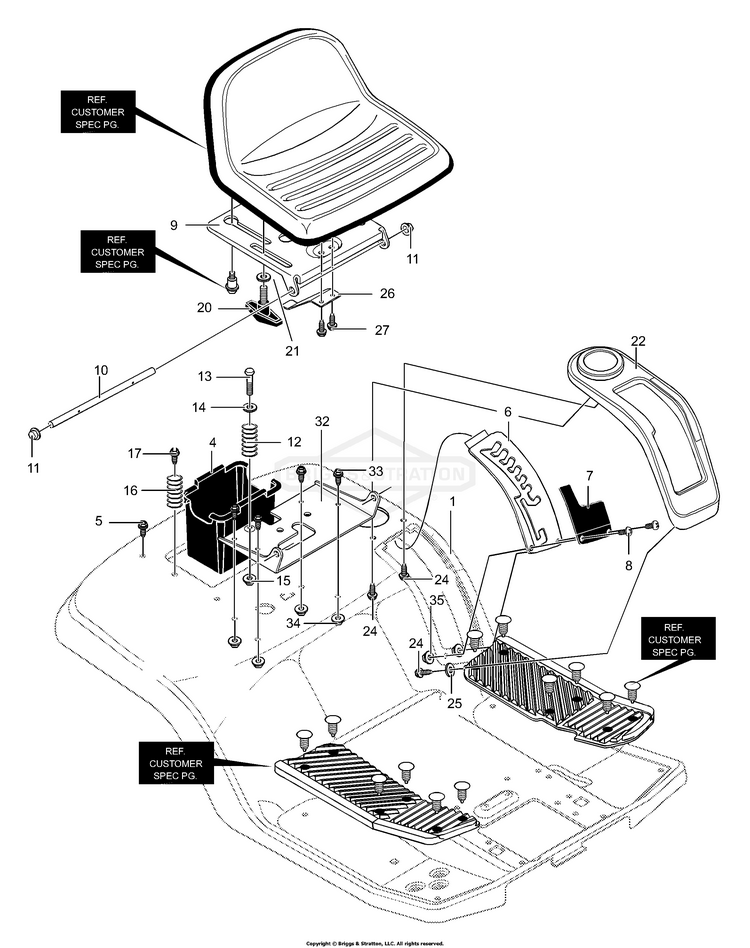

Rear Chassis Assembly

...
...
1
SEAT DECK-LARGE BS-94629-833
...
4
CONTAINER, BATTERY BS-690424MA
...
5
SCREW.25-20 S-T BS-26X263MA
...
6
PLATE LIFT DETENT BS-94194-853
...
7
LIFT DET LOCKOUT LG BLACK BS-094483
...
8
SCREW BS-711679
...
9
SUPPORT, SEAT BS-94154-833
...
10
HINGE SEAT PIVOT BS-95294
...
11
NUT, PUSH CAP BS-711627MA
...
12
SPRING, COMPRESSION BS-710136-853
...
13
BOLT, SHOULDER BS-711610
...
14
WASHER CUP BS-95293
...
15
NUT BS-302635
...
16
SPRING, COMPRESSION BS-710109-853
...
17
SCREW BS-711606MA
...
20
BOLT, WING BS-711747MA
...
21
WASHER, FLAT BS-711644MA
...
22
DETENT COVER W/CUP BS-094469
...
24
SCREW BS-711671MA
...
25
WASHER BS-703332
...
26
SPRING - LEAF BS-094057MA
...
27
SCREW 5/16-18X.75 BS-711606MA
...
32
BRACKET, PIVOT SEAT BS-94153-833
...
33
SCREW 5/16-18X.75 BS-711606MA
...
34
NUT, 5/16-18 BS-711634MA
...
35
NUT, #10-32 BS-711842
