465606x692B Murray - Lawn Tractor (2002)

Model: 465606x692B

Back To Assemblies

Save Part Not Listed?
product name

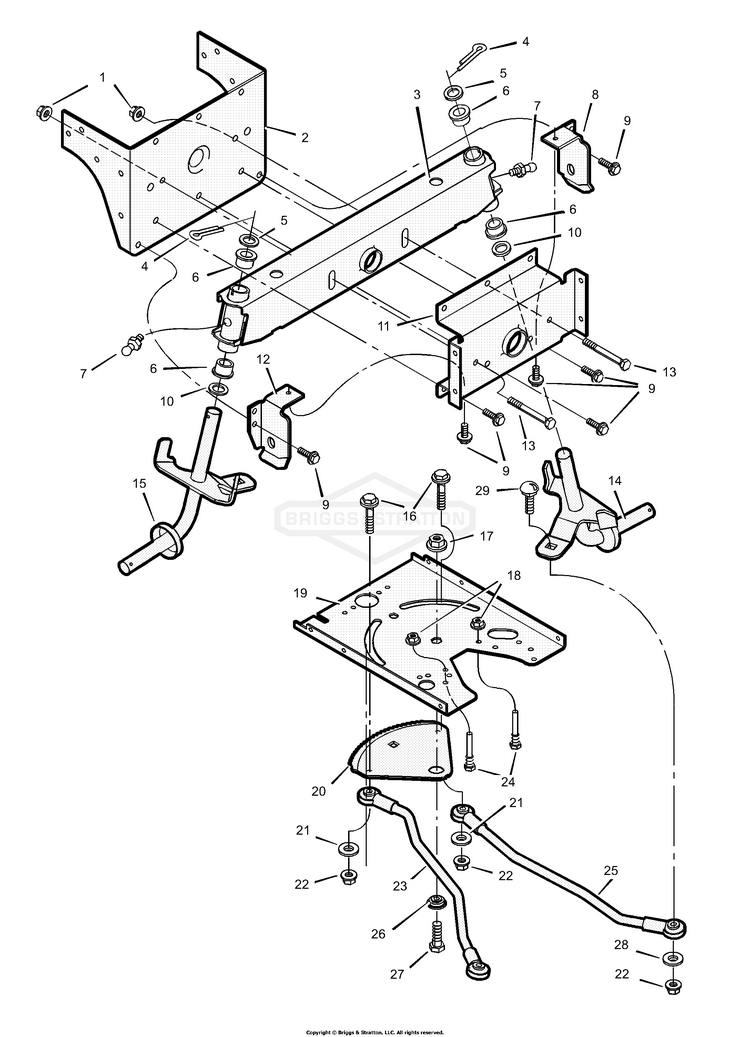

Front Axle

...
...
1
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
2
Bracket, Rear Hanger BS-1001270E701MA
...
3
Assembly, Axle (with Zerk) BS-1001460E701MA
...
4
Pin, Cotter BS-030X49MA
...
5
Washer BS-17X195MA
...
6
Bearing, Spindle BS-690150MA
...
7
Fitting, Grease BS-092530MA
...
8
Hanger, Left Deck BS-094027E701MA
...
9
Screw BS-26X249MA
...
10
WASHER.76-1.2 13G FL BS-17X113MA
...
11
Hanger, Axle BS-094007
...
12
Hanger, Right Deck BS-094026E701MA
...
13
Bolt, Hex BS-01X146MA
...
14
LEFT FRONT SPINDLE BS-1001173E701MA
...
15
WELD SPINDLE ASSY R BS-721440BMYP
...
16
Bolt, Shoulder BS-009X62MA
...
17
Locknut, Flange BS-15X111MA
...
18
NUT, 5/16-18, GR5 BS-703409
...
19
PLATE, STEERING MT BS-7300867ZMA
...
20
Gear, Sector BS-1001176
...
21
Washer BS-17X168ZMA
...
22
NUT, CNTR LCK, 3/8-16 BS-703893
...
23
Link, Drag -Right BS-1001178E701MA
...
24
Guide, Belt BS-094384MA
...
25
Link, Drag -Left BS-1001177E701MA
...
26
Bearing, Sector Gear BS-094123MA
...
27
BOLT BS-5025011X8FS
...
28
WASHER, FLAT BS-710083MA
...
29
Bolt, Carriage BS-002X96MA
