465606x692B Murray - Lawn Tractor (2002)

Model: 465606x692B

Back To Assemblies

Save Part Not Listed?
product name

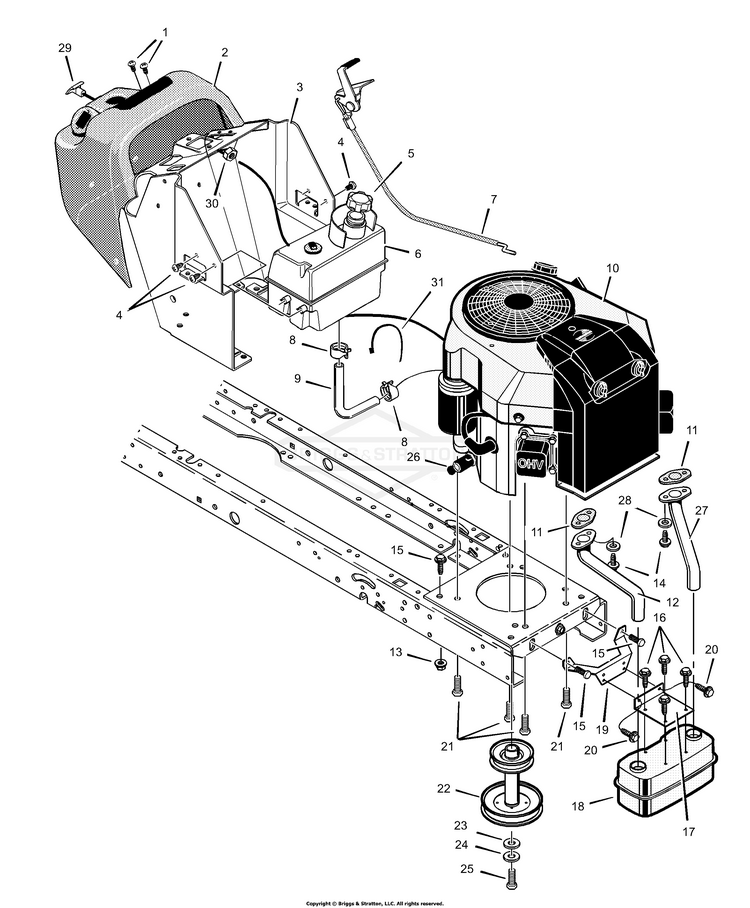

Engine Mount

...
...
1
SCREW, Thread Forming BS-26X270MA
...
2
Dash BS-1001114
...
3
Console BS-095173
...
4
Screw BS-26X253MA
...
5
FUEL CAP (Included with Ref. No. 6) BS-092317MA
...
6
Tank, Fuel BS-1001220
...
7
Control, Throttle BS-1001225
...
8
CLAMP, Hose (Included with Ref. No. 6) BS-791850
...
9
Fuel Line (Must cut to length) (Included with Ref. No. 6) BS-7601033MA
...
11
Gasket, Exhaust BS-711851MA
...
12
Tube, Right Exhaust BS-1001038
...
13
NUT, HEX FLNG,5/16-18 BS-704067
...
14
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
15
Screw BS-26X249MA
...
16
SCREW.25-20 S-T BS-26X263MA
...
17
Bracket, Muffler BS-690538E701MA
...
18
Muffler BS-093259MA
...
19
BRKT - MUFF MTG HP BS-690537E701MA
...
20
Screw BS-26X214MA
...
21
SCREW-HEX WSHR HD TAP BS-2828635SM
...
22
Pulley, Stack BS-690507MA
...
23
WASHER.46.97.25 FLAT BS-17X170MA
...
24
Washer, Star BS-019X35MA
...
25
Bolt, Hex BS-01X140MA
...
26
Drain, Oil BS-325547MA
...
27
Tube, Left Exhaust BS-1001039
...
28
WASHER, 5/16" LOCK BS-5025170SM
...
29
Choke BS-690401
...
30
NUT, 3/8-16 BS-703333
...
31
Strap, Tie BS-032618MA
