465606x692B Murray - Lawn Tractor (2002)

Model: 465606x692B

Back To Assemblies

Save Part Not Listed?
product name

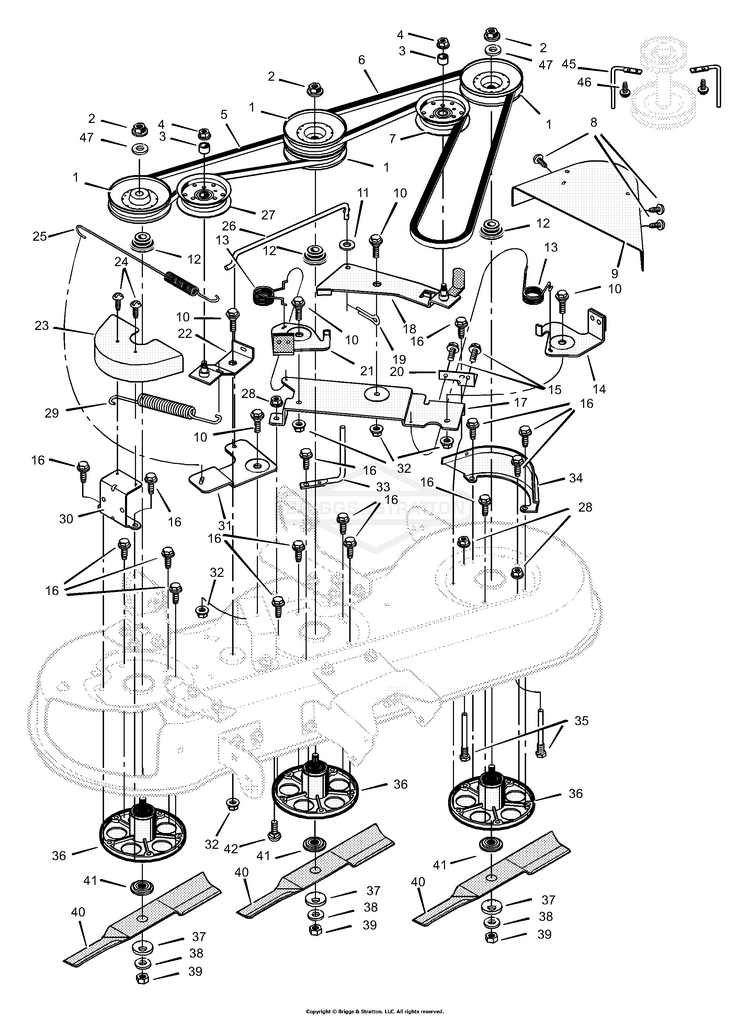

Mower Housing Drive System

...
...
1
PULLEY BS-95309MA
...
2
Nut BS-15X121
...
3
Spacer BS-690369MA
...
4
NUT, CNTR LCK, 3/8-16 BS-703893
...
5
Belt, Secondary BS-7769221MA
...
6
Belt, Primary BS-7769211MA
...
7
V-Pulley BS-690549MA
...
8
Screw BS-26X277MA
...
9
Cover, Left Pulley BS-094605E701MA
...
10
Bolt, Shoulder BS-009X39MA
...
11
WASHER, FLAT 5/16 BS-704015
...
12
Spacer, Pulley BS-1001197MA
...
13
Spring, Torsion BS-166X41MA
...
14
Assembly, Left Brake BS-094640E700
...
15
Screw BS-26X277MA
...
16
SCREW-HEX WSHR HD TAP BS-2828635SM
...
17
Plate, Brake Arm BS-094596E700
...
18
IDLER ARM, 46 in, Left BS-7400227BMYP
...
19
PIN, COTTER, 3/32X.75 BS-703312
...
20
Bracket, Brake Plate Mount BS-094602E700
...
21
Assembly, Center Brake BS-094641E700
...
22
Assembly, Right Idler Arm BS-094639E700
...
23
COVER, PULLEY, RH BS-7300857BMYP
...
24
SCREW, #10-16X.625 BS-703994
...
25
Spring, Extension BS-165X120MA
...
26
Link, Bell Crank BS-094606 Z
...
27
Pulley, Backside BS-690387MA
...
28
NUT, 5/16-18, GR5 BS-703409
...
29
Spring, Extension BS-165X79MA
...
30
Cover, Bracket BS-092140E700
...
31
Crank, Bell BS-094603E700
...
32
NUT, CNTR LCK, 3/8-16 BS-703893
...
33
Guide, Belt BS-092116 Z
...
34
Bracket, Pulley Cover BS-690221E700
...
35
Guide, Belt BS-091754 Z
...
36
JACKSHAFT HSNG ASSY BS-1001200MA
...
37
Washer, Belleville (Included with Ref. No. 41) BS-17X166MA
...
38
Washer (Included with Ref. No. 41) BS-17X165MA
...
39
Nut (Included with Ref. No. 41) BS-15X100MA
...
40
Blade BS-7769204
...
41
Adapter, Blade BS-7769213MA
...
42
BOLT BS-703159
...
45
Guide, Belt BS-091797 Z
...
46
SCREW, 3/8-16X.75 BS-703950
...
47
Washer BS-017X87
