465605x48B Murray - Lawn Tractor (2004)

Model: 465605x48B

Back To Assemblies

Save Part Not Listed?
product name

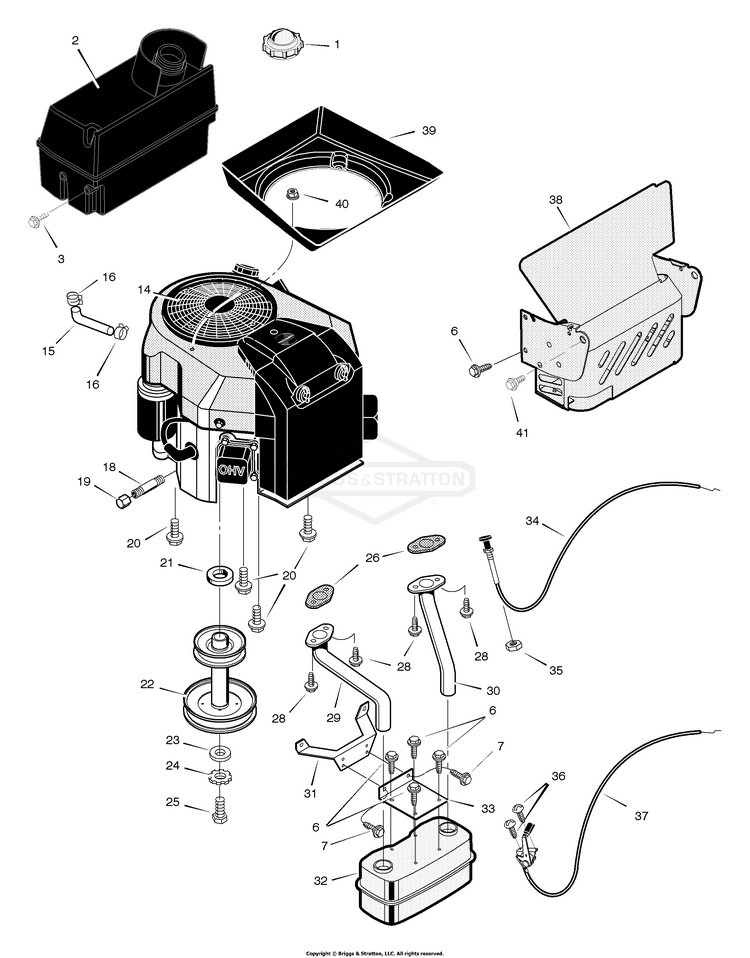

Engine Mount Assembly

...
...
1
FUEL CAP (Included with Ref. No. 2) BS-092317MA
...
2
FUEL KIT 2.8 BS-7601093MA
...
3
Screw BS-26X253MA
...
6
Screw BS-26X229MA
...
7
Screw BS-26X213MA
...
15
Fuel Line (Must cut to length) (Included with Ref. No. 2) BS-7601033MA
...
16
CLAMP, Hose (Included with Ref. No. 2) BS-791850
...
18
Pipe, Oil Drain BS-092279
...
19
Cap, Oil Drain BS-021651 Z
...
20
SCREW-HEX WSHR HD TAP BS-2828635SM
...
21
Spacer BS-093077MA
...
22
Pulley, Stack BS-690507MA
...
23
WASHER.46.97.25 FLAT BS-17X170MA
...
24
Lockwasher BS-019X35MA
...
25
Bolt BS-01X140MA
...
26
Gasket BS-711851MA
...
28
Bolt BS-06X103MA
...
29
Tube, Right Exhaust BS-1001038
...
30
Tube, Left Exhaust BS-1001039
...
31
BRKT - MUFF MTG HP BS-690537E701MA
...
32
Muffler BS-093259MA
...
33
Bracket, Muffler BS-690538E701MA
...
34
Choke BS-690401
...
35
NUT, 3/8-16 BS-703333
...
36
Screw BS-26X201MA
...
37
Control, Throttle BS-093165MA
...
38
Shield Assembly, Heat BS-1001456E701
...
39
Plenum BS-1001626
...
40
NUT, 1/4-20, NYLOCK BS-703232
...
41
BOLT, SHOULDER BS-702315
