465603x92A Murray - Lawn Tractor (2002)

Model: 465603x92A

Back To Assemblies

Save Part Not Listed?
product name

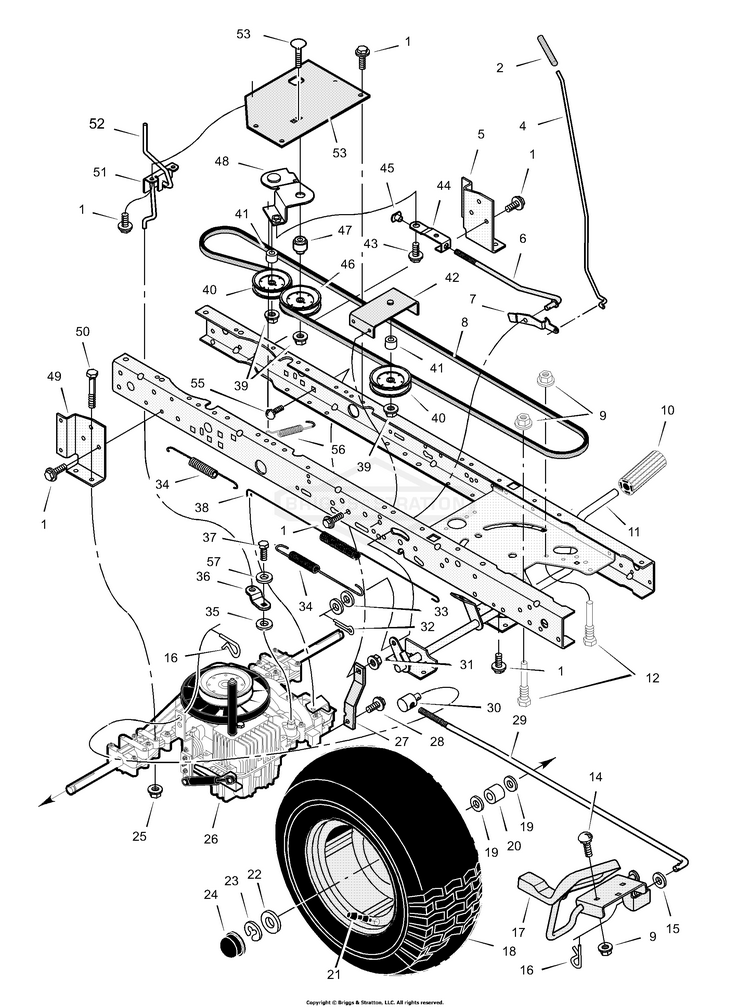

Drive Assembly

...
...
1
Screw BS-26X249MA
...
2
Grip, Parking Brake BS-091079MA
...
4
Rod, Parking Brake BS-1001245 Z
...
5
Bracket, Transaxle - Left BS-094185E700
...
6
Rod, Clutch BS-1001013 Z
...
7
Latch, Parking Brake BS-094045 Z
...
8
V-Belt, Drive BS-37X106MA
...
9
NUT, 5/16-18, GR5 BS-703409
...
10
PEDAL-BRAKE BLACK RUB BS-1727261SM
...
11
Assembly, Brake Pedal BS-1001011E701
...
12
Screw, Guide BS-094384MA
...
14
BOLT BS-703159
...
15
Washer BS-017X57MA
...
16
PIN, 3/32 X 1.6 BS-703300
...
17
Pedal Assembly, Hydro BS-1001231E701
...
18
Wheel & Tire Ass'y - Rear 20" BS-092291601
...
--
Tire ONLY * BS-024380
...
--
Tube ONLY BS-407049MA
...
19
Washer BS-17X160MA
...
20
SPACER BS-690554ZMA
...
21
VALVE STM&CP,TR41 SE BS-024373MA
...
22
Washer BS-17X195MA
...
23
RING, E .750D .050T BS-0011X3MA
...
24
HUB CAP BS-094618MA
...
25
NUT, HEX FLNG,5/16-18 BS-704067
...
27
Strap, Torque BS-1001085E701
...
28
Screw BS-26X216MA
...
29
Rod, Control BS-1001234 Z
...
30
NUT, Adjusting BS-092132ZMA
...
31
NUT, CNTR LCK, 3/8-16 BS-703893
...
32
PIN, COTTER, 3/32X.75 BS-703312
...
33
Washer BS-017X48MA
...
34
Spring, Extension BS-165X92MA
...
35
Washer BS-17X148MA
...
36
ARM, Disconnect BS-1001086ZMA
...
37
Capscrew BS-06X105MA
...
38
Spring, Brake BS-165X150MA
...
39
NUT, CNTR LCK, 3/8-16 BS-703893
...
40
Pulley, Idler BS-690409MA
...
41
Spacer BS-690369MA
...
42
Bracket, Idler Assembly BS-1001097E701
...
43
Bolt, Shoulder BS-009X49MA
...
44
Link, Clutch BS-1001007 Z
...
45
Nut, Tee BS-1001014MA
...
46
Pulley, Idler BS-690410MA
...
47
Bushing, Pivot BS-1001012MA
...
48
Arm Assembly, Idler BS-1001018 Z
...
49
Bracket, Transaxle -Right BS-094184E701MA
...
50
SCREW BS-703868
...
51
Bracket, Disconnect BS-1001214 Z
...
52
Rod, Disconnect BS-1001215ZMA
...
53
BRKT, IDLER PIVOT BS-726355BMYP
...
54
BOLT, 3/8-16 X 2", CA BS-5025146X16SM
...
55
Bolt, Carriage BS-002X78MA
...
56
Spring, Clutch BS-165X155MA
...
57
Washer BS-017X38MA
