465601x50B Murray - Lawn Tractor (2003)

Model: 465601x50B

Back To Assemblies

Save Part Not Listed?
product name

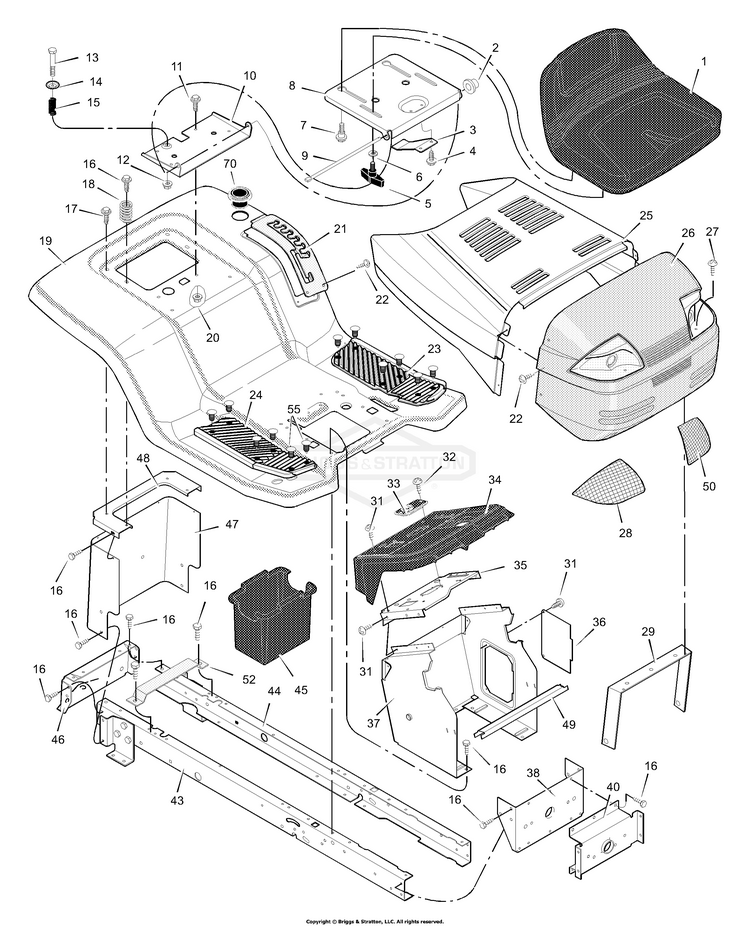

Chassis And Hood

...
...
1
Seat BS-95236
...
2
PUSHNUT, 3/8 BS-703948
...
3
Spring BS-094057MA
...
4
Screw BS-26X229MA
...
5
Bolt, Wing BS-1001054MA
...
6
WASHER, FLAT 5/16 BS-704015
...
7
Bolt, Shoulder BS-009X56MA
...
8
Support, Seat BS-094154E700
...
9
Rod, Pivot BS-094156ZMA
...
10
Bracket, Pivot BS-1001648E701MA
...
11
CAPSCREW,5/16-18X.625 BS-703822
...
12
NUT .25-20 FLANGELOCK BS-015X89MA
...
13
Bolt, Shoulder BS-009X55MA
...
14
Washer BS-094155 Z
...
15
SPRING, Compression BS-164X31MA
...
16
Screw BS-26X249MA
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
Spring BS-164X30MA
...
19
DECK, Seat BS-7300914RYP
...
20
NUT, HEX FLNG,5/16-18 BS-704067
...
21
Plate, Index BS-094886E700
...
22
Screw BS-009X47MA
...
23
Mat, Left BS-095437
...
24
Mat, Right BS-095438
...
25
HOOD BS-093215E701MA
...
26
Grille Assembly (Includes Lens) BS-094869
...
27
Screw (Included with Ref. No. 26) BS-26X239MA
...
28
Lens, Right (Included with Ref. No. 26) BS-092539MA
...
29
Brace, Grille (Included with Ref. No. 26) BS-092541MA
...
30
PIN, 3/32 X 1.6 BS-703300
...
31
SCREW, Thread Forming BS-26X270MA
...
32
Screw BS-26X238MA
...
33
Bearing, Steering BS-094219MA
...
34
Dash (Grey) BS-095034
...
35
Plate, Dash BS-094221E701MA
...
36
Panel, Access BS-093007E700
...
37
Support, Dash BS-095082E700
...
38
Bracket, Rear Hanger BS-1001270E701MA
...
40
Axle, Hanger BS-094007E701MA
...
43
Frame, Right BS-1001268E701
...
44
RAIL-FRAME LH BS-1001269E701MA
...
45
Container, Battery BS-690424MA
...
46
Plate, Hitch BS-1001002E701
...
47
Plate, Rear BS-690218E700
...
48
Top, Rear Plate BS-094186E700
...
49
Channel BS-095081E700
...
50
Lens, Left (Included with Ref. No. 26) BS-092540MA
...
52
Support, Battery BS-690482E701
...
55
Clip (Grey) BS-311087MA
...
70
Holder, Cup BS-1001542MA
...
--
Instruction Book & Parts List BS-F-030734L
