465600x48A Murray - Lawn Tractor (2005)

Model: 465600x48A

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

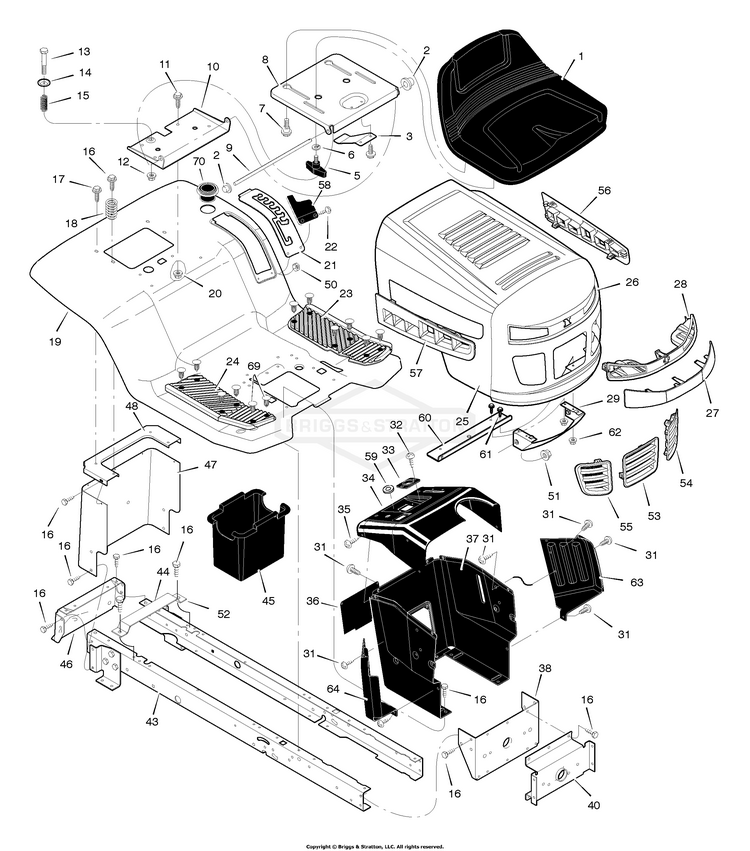

Chassis & Hood

...
...
1
Seat BS-095415MA
...
2
PUSHNUT, 3/8 BS-703948
...
3
Spring BS-094057MA
...
4
Screw BS-26X229MA
...
5
Bolt, Wing BS-1001054MA
...
6
WASHER, FLAT 5/16 BS-704015
...
7
Bolt, Shoulder BS-009X56MA
...
8
SUPPORT, SEAT BS-7300875BMYP
...
9
Rod, Pivot BS-094156ZMA
...
10
Bracket, Pivot BS-1001648E701MA
...
11
CAPSCREW,5/16-18X.625 BS-703822
...
12
NUT .25-20 FLANGELOCK BS-015X89MA
...
13
Bolt, Shoulder BS-009X55MA
...
14
Washer BS-094155 Z
...
15
SPRING, Compression BS-164X31MA
...
16
Screw BS-26X249MA
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
Spring BS-164X30MA
...
19
Deck, Seat BS-1001556E541
...
20
Nut BS-15X123MA
...
21
Plate, Index BS-094194E701MA
...
22
Screw BS-009X47MA
...
23
Mat, Left BS-095408MA
...
24
Mat, Right BS-095409MA
...
25
Hood BS-1001812E541
...
26
Grille BS-1001813E541
...
27
Lens BS-1001820MA
...
28
Housing, Light BS-1001819MA
...
29
Bracket, Lower Pivot BS-1001799
...
31
SCREW, Thread Forming BS-26X270MA
...
32
Screw BS-26X238MA
...
33
Bearing, Steering BS-1001491MA
...
34
Dash BS-1001593E701MA
...
35
Screw BS-26X201MA
...
36
Panel, Access BS-093007E701MA
...
37
SUPPORT, DASH BS-7300872BMYP
...
38
Bracket, Rear Hanger BS-1001270E701MA
...
40
Axle, Hanger BS-094007E701MA
...
43
RAIL - FRAME RH BS-1001928E701MA
...
44
Frame, Left BS-1001927E701
...
45
Container, Battery BS-690424MA
...
46
Plate, Hitch BS-1001002E701
...
47
Plate, Rear BS-1001906E541
...
48
Top, Rear Plate BS-094186E701
...
50
NUT#10-24 MCLEANLOCK BS-015X81MA
...
51
Nut BS-15X124
...
52
Support, Battery BS-690482E701
...
53
Insert, Center Grille BS-1001816MA
...
54
Insert, Left Grille BS-1001817MA
...
55
Insert, Right Grille BS-1001818MA
...
56
Insert, Left Hood BS-1001814MA
...
57
Insert, Right Hood BS-1001815MA
...
58
Cover, Detent BS-094680MA
...
59
Grommet, Parking Brake BS-1001755MA
...
60
Bracket, Support BS-1001921
...
61
Screw, Hex BS-0025X3MA
...
62
Nut BS-015X82MA
...
63
Panel, Left Side BS-095218MA
...
64
Panel, Right Side BS-095217MA
...
69
Fastener, Panel BS-0193X1MA
...
70
Holder, Cup BS-1001542MA
...
--
Instruction Book & Parts List BS-F-050748L
...
...
...
