465307x31A Murray - Lawn Tractor (2005)

Model: 465307x31A

Back To Assemblies

Save Part Not Listed?
product name

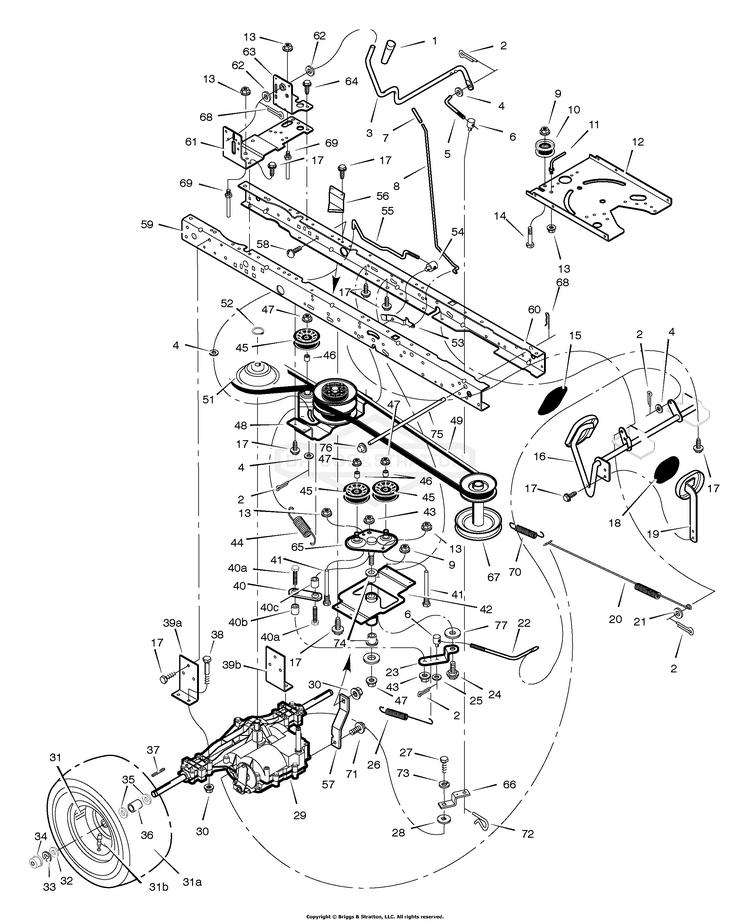

Motion Drive

...
...
1
GRIP .50 DELUXE- BLAC BS-094497MA
...
2
PIN, COTTER, 3/32X.75 BS-703312
...
3
Lever, Shift BS-094043 Z
...
4
WASHER, FLAT 5/16 BS-704015
...
5
Link, Shifter BS-094044ZMA
...
6
Nut, Adjuster BS-021920ZMA
...
7
Grip BS-091079MA
...
8
Rod, Parking Brake BS-1001245 Z
...
9
NUT, CNTR LCK, 3/8-16 BS-703893
...
10
Pulley, Idler BS-1001187MA
...
11
Guide, Belt BS-1001122
...
12
PLATE, STEERING MT BS-7300867ZMA
...
13
NUT, 5/16-18, GR5 BS-703409
...
14
CAPSCREW,3/8-16X1.5 BS-703406
...
15
Pad, Motion Drive BS-1001138
...
16
Assembly, Speed Control BS-1001148E700
...
17
Screw, Self Tapping BS-26X249MA
...
18
Pad, Brake Pedal BS-1001139
...
19
Assembly, Brake Pedal BS-1001147E700
...
20
Spring, Extension BS-165X115MA
...
21
WASHER, FLAT, .377X1 BS-703966
...
22
Rod, Speed Control BS-1001120
...
23
Bellcrank BS-1001104 Z
...
24
Bolt, Shoulder BS-009X39MA
...
25
Washer BS-17X124MA
...
26
Spring, Extension BS-165X152MA
...
27
Screw, Cap BS-06X105MA
...
28
Washer BS-17X148MA
...
30
NUT, HEX FLNG,5/16-18 BS-704067
...
31
Assembly, Wheel and Tire BS-092300-650
...
31a
Tire * BS-024430
...
31b
VALVE STM&CP,TR41 SE BS-024373MA
...
32
Washer BS-17X195MA
...
33
RING, E .750D .050T BS-0011X3MA
...
34
HUB CAP BS-094618MA
...
35
Washer BS-17X160MA
...
36
SPACER BS-690554ZMA
...
37
Key, Square BS-021553MA
...
38
SCREW BS-703868
...
39a
Bracket, Right Transaxle BS-094184E701MA
...
39b
Bracket, Left Transaxle BS-094185E701MA
...
40
Link, Variator BS-1001576
...
40a
Bolt, Hex BS-01X194
...
40b
Spacer, 1/2" BS-1001520
...
40c
Spacer, 3/4" BS-1001519
...
41
GUIDE SCREW - ZINC BS-093349MA
...
42
Bracket, Front Frame BS-1001277E701
...
43
Nut, Lock BS-015X87
...
44
Spring, Extension BS-165X153MA
...
45
Pulley BS-690409MA
...
46
Spacer BS-690369MA
...
47
NUT, CNTR LCK, 3/8-16 BS-703893
...
48
Assembly, Variator and Idler BS-1001133MA
...
49
Belt, Primary BS-037X112
...
50
Belt, Secondary BS-037X113
...
51
Pulley, Transaxle BS-1001106MA
...
52
Ring, Snap BS-0011X7MA
...
53
Latch, Parking Brake BS-094045 Z
...
54
NUT-ADJUSTING BS-094815ZMA
...
55
Rod, Clutch BS-1001145 Z
...
56
Bracket, Brake BS-1001135 Z
...
57
STRAP, TRANSAXLE, LH BS-7300845BMYP
...
58
BOLT BS-703159
...
59
RAIL - FRAME RH BS-1001928E701MA
...
60
Rail, Left Frame BS-1001927E701
...
61
Bracket, Right Shift BS-1001978E701
...
62
WASHER BS-703128
...
63
Bracket, Shift Pivot BS-1001303 Z
...
64
Screw BS-26X267MA
...
65
Assembly, Idler BS-1001132 Z
...
66
Yoke, Shift BS-094031ZMA
...
67
Pulley, Stack BS-1001136MA
...
68
PIN, 3/32 X 1.6 BS-703300
...
69
Guide, Belt BS-1001308
...
70
Spring, Return BS-165X75MA
...
71
Screw BS-26X216MA
...
72
PIN, 3/32 X 1.6 BS-703300
...
73
Washer BS-017X38MA
...
74
Bearing BS-1101159MA
...
75
Rod, Belt Guide BS-1001267 Z
...
76
PUSHNUT, 3/8 BS-703948
...
77
Washer BS-17X174 Z
