465306x31A Murray - Lawn Tractor (2004)

Model: 465306x31A

Back To Assemblies

Save Part Not Listed?
product name

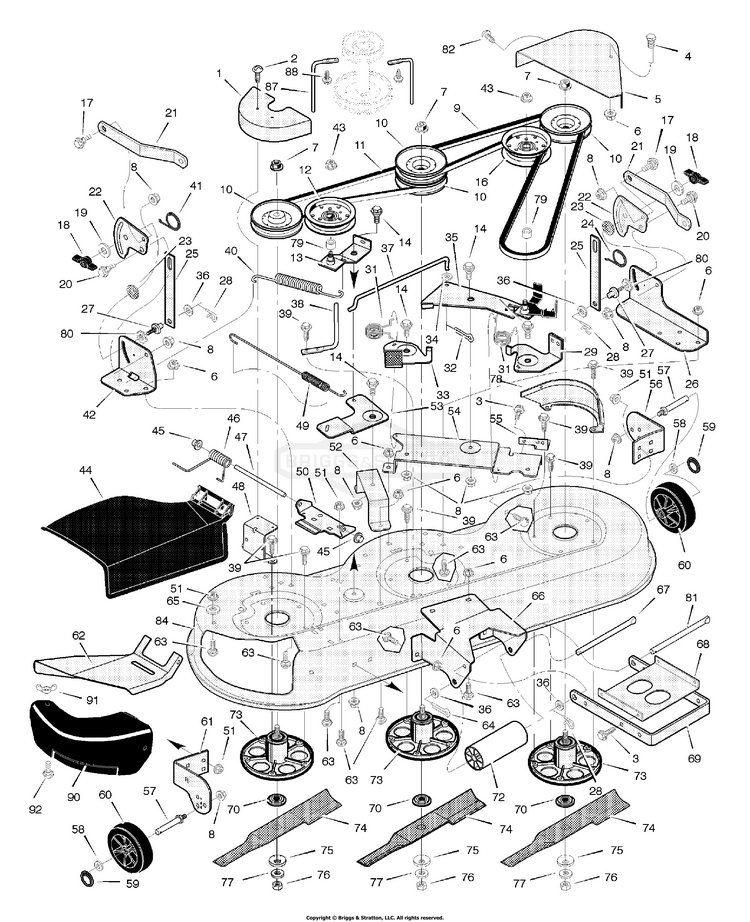

Mower Housing

...
...
1
COVER, PULLEY, RH BS-7300857BMYP
...
2
SCREW, #10-16X.625 BS-703994
...
3
Screw BS-26X249MA
...
4
Guide, Belt BS-091754 Z
...
5
Cover, Left Pulley BS-094605E701MA
...
6
NUT, 5/16-18, GR5 BS-703409
...
7
Nut, Flange BS-15X140MA
...
8
NUT, CNTR LCK, 3/8-16 BS-703893
...
9
Belt, Primary BS-037X89MA
...
10
PULLEY BS-95309MA
...
11
Belt, Secondary BS-037X66MA
...
12
Pulley, Idler BS-690549MA
...
13
Arm, Idler BS-094639
...
14
Bolt, Shoulder BS-009X39MA
...
16
Pulley, Idler BS-690387MA
...
17
Bolt, Shoulder BS-009X52MA
...
18
WINGKNOB, 5/16-18 BS-703065
...
19
Washer BS-017X45 Z
...
20
BOLT-SHD.38-16X.499D BS-009X51MA
...
21
Bracket, Rear Suspension BS-094055E701MA
...
22
PLATE, Suspension BS-7300878BMYP
...
23
FRICTION PAD BS-094137MA
...
24
Spring BS-166X43MA
...
25
LIFT LINK (LT) BS-690212E701MA
...
26
Bracket, Left Lift BS-094600E700MA
...
27
PIN, Hanger BS-095194MA
...
28
PIN, 3/32 X 1.6 BS-703300
...
29
Brake Assembly, Left BS-094640E701MA
...
31
Spring BS-166X41MA
...
32
PIN, COTTER, 3/32X.75 BS-703312
...
33
BRAKE ASSEMBLY, Center BS-7500566BMYP
...
34
WASHER, FLAT 5/16 BS-704015
...
35
IDLER ARM, 46 in, Left BS-7400227BMYP
...
36
Washer BS-17X103MA
...
37
Link, Bell Crank BS-094606 Z
...
38
Guide, Belt BS-092116 Z
...
39
SCREW-HEX WSHR HD TAP BS-2828635SM
...
40
Spring, Extension BS-165X79MA
...
41
Spring, Torsion BS-166X42MA
...
42
Bracket, Suspension BS-094598E701
...
43
NUT, CNTR LCK, 3/8-16 BS-703893
...
44
Deflector, Chute BS-092100MA
...
45
PUSHNUT, 3/8 BS-703948
...
46
Spring, Torsion BS-166X34MA
...
47
Rod, Deflector BS-092159ZMA
...
48
Bracket, Cover BS-092140E701MA
...
49
Spring, Extension BS-165X120MA
...
50
Bracket, Hinge BS-092104E701MA
...
51
NUT, HEX FLNG,5/16-18 BS-704067
...
52
Bracket, Bell Crank BS-094601E701
...
53
Crank, Bell BS-094603E701MA
...
54
Plate, Brake Arm BS-094596E701
...
55
BRKT, BRAKE PLATE BS-7300799ZYP
...
56
Bracket, Left Gauge Wheel BS-094919E700
...
57
BOLT, Gauge Wheel BS-094025MA
...
58
Washer BS-017X91 Z
...
59
Ring, Locking BS-031X11MA
...
60
Wheel, Gauge BS-092683MA
...
61
Bracket, Right Gauge Wheel BS-094918E701MA
...
62
Deflector, Inside BS-092103E701MA
...
63
BOLT BS-703159
...
64
Pin, Cotter BS-030X49MA
...
65
Washer BS-017X57MA
...
66
Bracket, Front Deck BS-094997SEMA
...
67
Rod, Hanger BS-094996MA
...
68
Stiffener BS-094604E701MA
...
69
BRKT-FRT SUSPENSION BS-690539E701MA
...
70
Adapter, Blade BS-690411MA
...
72
Roller BS-1001252MA
...
73
JACKSHAFT HSNG ASSY BS-1001200MA
...
74
SINGLE BLADE BS-056631E701MA
...
75
Washer, Belleville BS-17X166MA
...
76
Nut BS-15X100MA
...
77
Washer BS-17X165MA
...
78
Bracket, Pulley Cover BS-690221E701MA
...
79
Spacer BS-690369MA
...
80
Washer BS-019X35MA
...
81
Rod, Hanger BS-094996MA
...
82
Screw BS-26X277MA
...
84
Housing, Blade (Includes Ref. No. 17, 18, 30, 31, 32, 33, 45, 46, 53, 54, 55, and 56) BS-094936E701MA
...
87
Guide, Belt BS-091797 Z
...
88
SCREW, 3/8-16X.75 BS-703950
...
90
Cover, Mulch BS-095086MA
...
91
NUT BS-703141
...
92
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
