46501x92A Murray - Lawn Tractor (2000)

Model: 46501x92A

Back To Assemblies

Save Part Not Listed?
product name

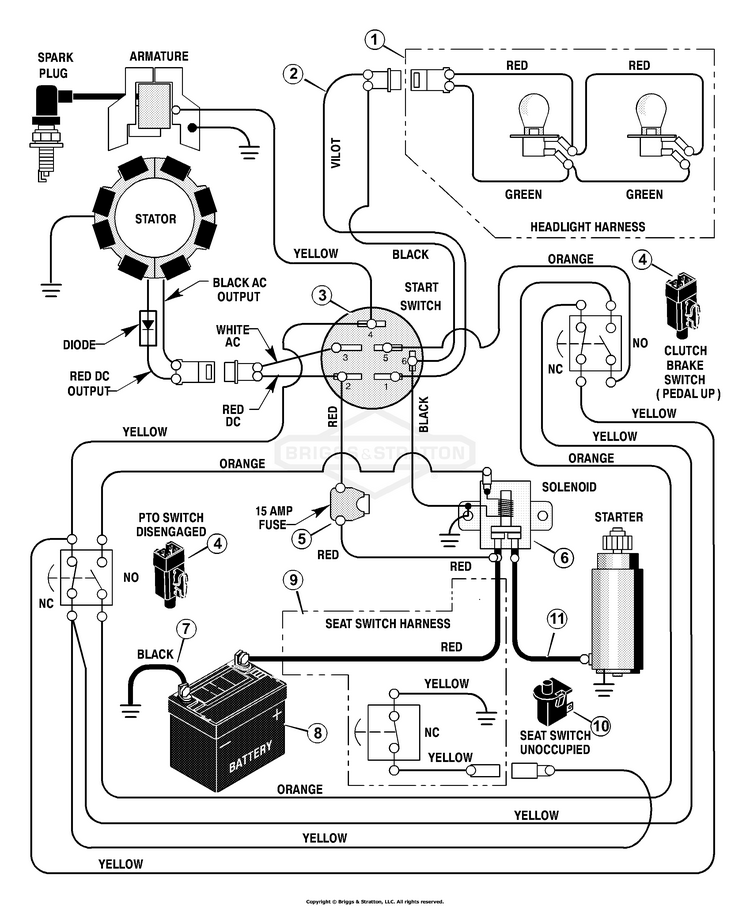

Electrical System

...
...
1
Harness, Light Wire BS-250X92MA
...
--
Socket, Light BS-092372
...
--
BULB-HEADLIGHT 1 BS-1677371SM
...
2
HARNESS RAIL FRAME TW BS-776170MA
...
3
Switch, Ignition BS-092377MA
...
--
Key, Ignition BS-020729
...
--
SET, Washer/Nut BS-847144
...
--
CAP, Switch BS-847150
...
4
Switch, Limit BS-094136MA
...
5
Fuse BS-054212
...
--
Holder, Fuse BS-407078MA
...
6
Solenoid BS-094613
...
--
Screw, Mounting BS-26X229MA
...
--
NUT, 1/4-20, NYLOCK BS-703232
...
7
Cable, Battery Ground BS-024X32MA
...
--
Screw, Ground Cable BS-26X213MA
...
8
Battery BS-021075SEMA
...
--
BOLT, 1/4-20X0.625 BS-703841
...
--
Wingnut BS-014X79MA
...
9
Harness, Seat Switch Wire BS-250X67MA
...
10
SWITCH, SEAT BS-7023354YP
...
11
Cable BS-024X31MA
...
--
Harness, AC/DC Jumper BS-250X90
