46404x8A Murray - Garden Tractor (1996)

Model: 46404x8A

Back To Assemblies

Save Part Not Listed?
product name

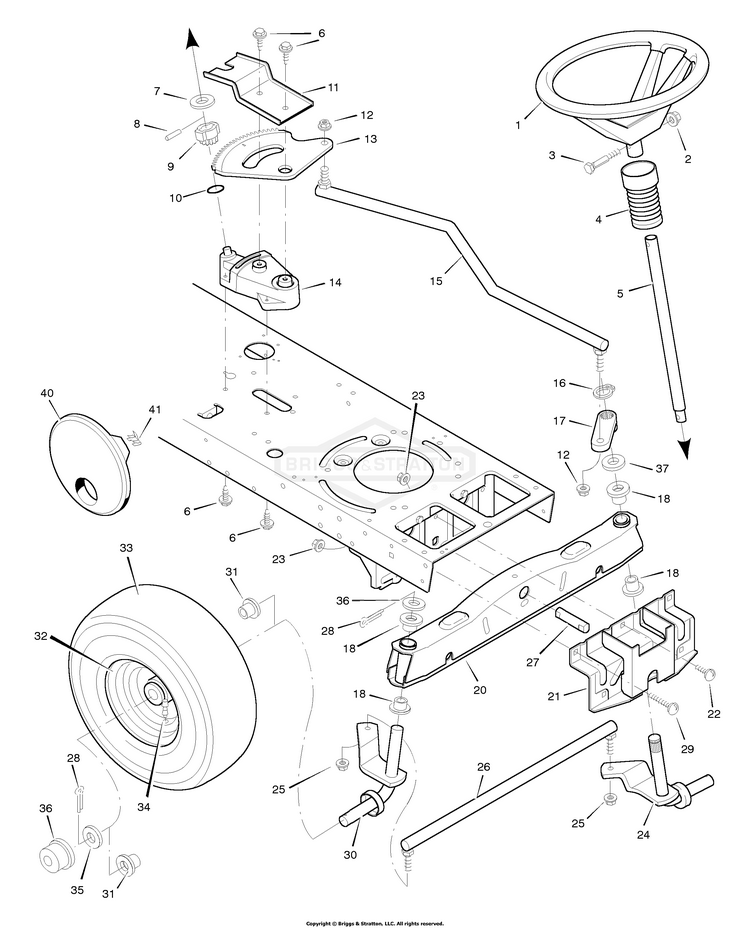

Steering

...
...
1
Wheel, Steering BS-054783
...
2
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
3
Bolt, Hex BS-001X66MA
...
4
Bellows BS-054789MA
...
5
Post Assembly, Steering BS-093039MA
...
6
Screw BS-26X249MA
...
7
Washer (Included with Ref. No. 5) BS-17X177
...
8
Pin, Spring (Included with Ref. No. 5) BS-032X77
...
9
Gear Assembly, Pinion BS-093037MA
...
10
O- Ring (Included with Ref. No. 9) BS-093068MA
...
11
Clip, Gear Retainer BS-93081E701
...
12
NUT.50-20 HEX FLG SER BS-15X112MA
...
13
Gear, Sector BS-93062E701
...
14
Support, Steering BS-093038MA
...
15
Link, Drag BS-093061E701MA
...
16
E- Ring BS-011X22MA
...
17
Arm, Drag Link BS-93059E701
...
18
Bearing BS-093058MA
...
20
Axle Assembly (with grease fittings) BS-093219E701MA
...
21
Hanger Assembly, Axle BS-93254E701
...
22
Bolt, Carriage BS-002X56
...
23
NUT, CNTR LCK, 3/8-16 BS-703893
...
24
Spindle Assembly, Left BS-093031E701MA
...
25
Locknut, Flange BS-015X87
...
26
Rod, Tie BS-93060E701
...
27
Pin, Pivot BS-021469MA
...
28
Pin, Cotter BS-030X49MA
...
29
Bolt, Carriage BS-002X60
...
30
Spindle Assembly, Right BS-93030E701
...
31
Bearing, Wheel (Included with Ref. No. 32) BS-093064MA
...
32
Wheel & Tire Assembly BS-92644601
...
33
Tire * (Included with Ref. No. 32) BS-024393MA
...
--
Tube (Included with Ref. No. 32) BS-407047MA
...
34
VALVE STM&CP,TR41 SE (Included with Ref. No. 32) BS-024373MA
...
35
Washer BS-17X114MA
...
36
Hub Cap (Optional) BS-024582MA
...
37
Shim BS-017X75MA
...
40
Disc, Wheel (8 inch) BS-694001
...
41
Clip, Retainer BS-694003MA
