46379A Murray - Garden Tractor (1997)

Model: 46379A

Back To Assemblies

Save Part Not Listed?
product name

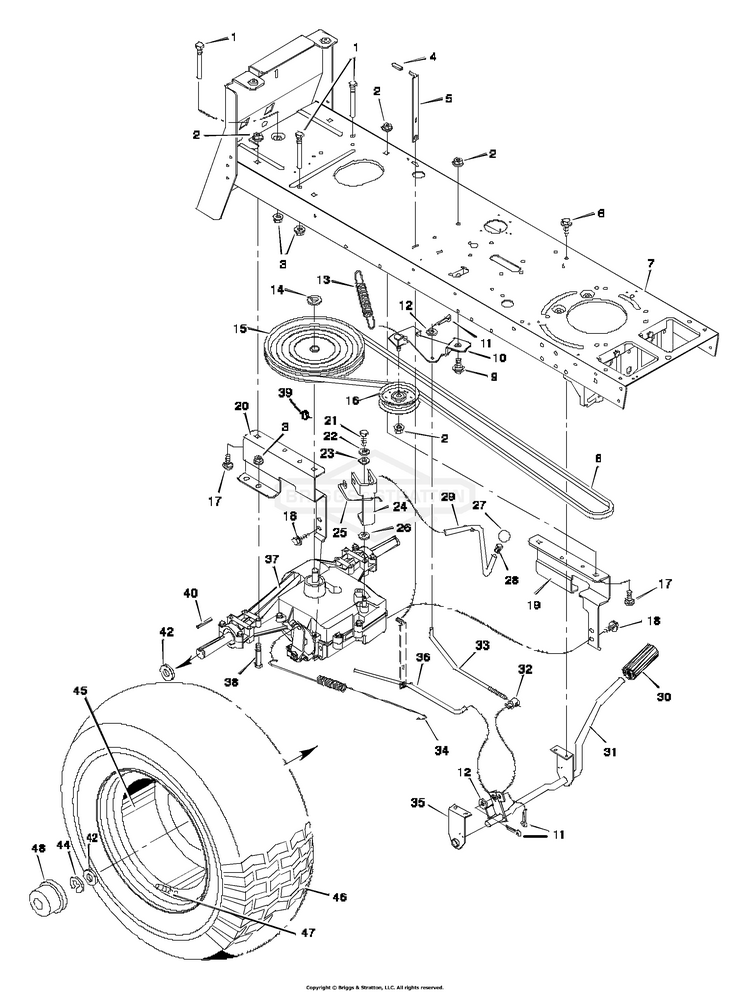

Motion Drive

...
...
1
Guide, Belt BS-020619MA
...
2
NUT, CNTR LCK, 3/8-16 BS-703893
...
3
NUT, HEX FLNG,5/16-18 BS-704067
...
4
Grip BS-092724
...
5
Lever, Parking Brake BS-93044E701
...
6
Screw BS-26X249MA
...
7
Frame BS-403350
...
8
Belt, Motion Drive BS-037X68MA
...
9
Bolt, Shoulder BS-009X39MA
...
10
Bracket Assembly, Idler BS-093033 Z
...
11
PIN, COTTER, 3/32X.75 BS-703312
...
12
Washer BS-017X52
...
13
Spring, Drive Extension BS-165X87MA
...
14
Ring, Retainer BS-0011X7MA
...
15
Pulley, Motion Drive BS-075073MA
...
16
Pulley, Backside Idler BS-023339MA
...
17
Bolt, Carriage BS-002X78MA
...
18
Screw BS-26X207MA
...
19
Bracket, Left Transaxle BS-093299E701
...
20
Bracket, Right Transaxle BS-093298E701
...
21
Bolt, Hex BS-01X145MA
...
22
Lockwasher BS-018X32MA
...
23
Washer BS-17X180MA
...
24
Yoke, Shift Lever BS-093019 Z
...
25
Spring BS-166X35
...
26
Washer BS-17X148MA
...
27
Knob, Shift Lever BS-091995
...
28
Ring, Tolerance BS-092008
...
29
Lever, Shift BS-093020 Z
...
30
PEDAL-BRAKE BLACK RUB BS-1727261SM
...
31
Lever Assembly, Pedal BS-93082E701
...
32
Nut, Adjustable BS-021920ZMA
...
33
Rod, Clutch BS-093029 Z
...
34
Spring, Brake Extension BS-165X82MA
...
35
Bracket, Pedal Support BS-091713E701
...
36
Rod, Brake Latch BS-93054E701
...
38
Bolt, Hex BS-01X132
...
39
Key, Woodruff No. 9 BS-020697MA
...
40
Key, Square BS-024039MA
...
42
Washer BS-17X193MA
...
44
E-Ring BS-011X23MA
...
45
Wheel & Tire Assembly BS-093263-601
...
46
Tire Only * (Included with Ref. No. 45) BS-407920
...
--
Tube BS-407051
...
47
VALVE STM&CP,TR41 SE (Included with Ref. No. 45) BS-024373MA
...
48
HUB CAP BS-094618MA
