46258x6A Murray - Lawn Tractor (1996)

Model: 46258x6A

Back To Assemblies

Save Part Not Listed?
product name

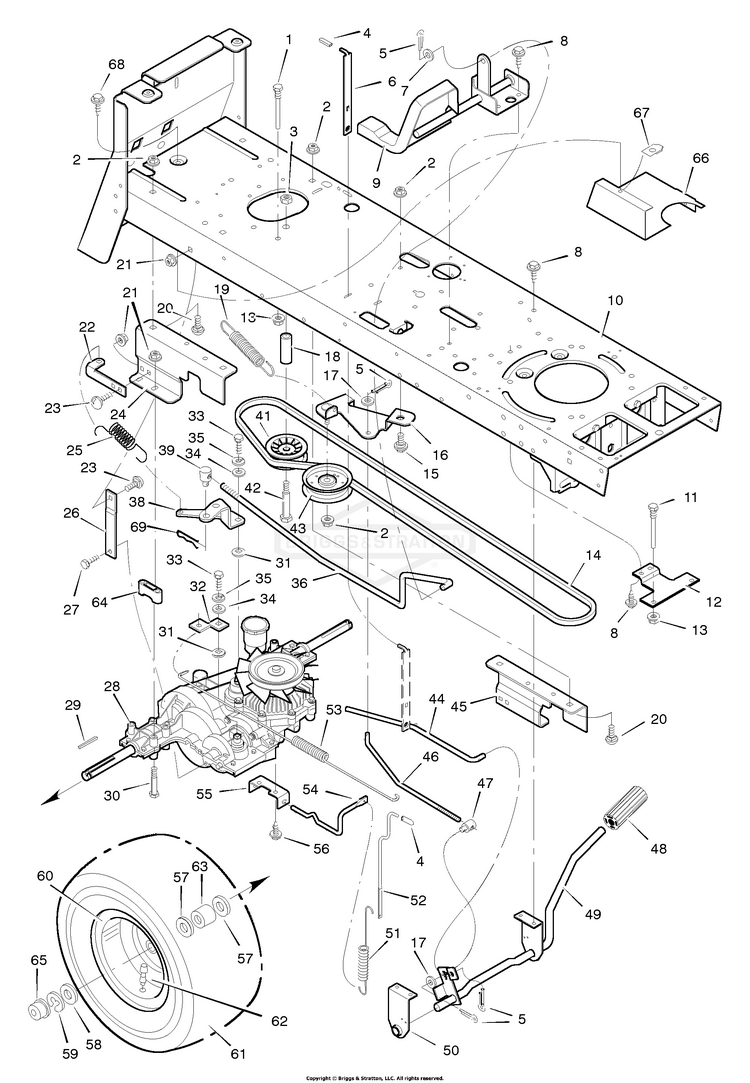

Motion Drive

...
...
1
Guide, Belt BS-020619MA
...
2
NUT, CNTR LCK, 3/8-16 BS-703893
...
3
Nut, Hex BS-015X41MA
...
4
Grip BS-092724
...
5
PIN, COTTER, 3/32X.75 BS-703312
...
6
Lever, Parking Brake BS-093338E701
...
7
Washer BS-17X572
...
8
Screw BS-26X249MA
...
9
Pedal Assembly BS-093237E701
...
10
Frame Assembly BS-403351
...
11
Guide, Belt BS-091754MA
...
12
Bracket, Belt Guide BS-093232E701
...
13
NUT, 5/16-18, GR5 BS-703409
...
14
Belt BS-037X81MA
...
15
Bolt, Shoulder BS-009X39MA
...
16
Bracket, Idler BS-93033E701
...
17
Washer BS-17X522
...
18
Spacer BS-093225
...
19
Spring BS-165X87MA
...
20
Bolt, Carriage BS-002X78MA
...
21
NUT, HEX FLNG,5/16-18 BS-704067
...
22
Bracket, Spring BS-093238E701
...
23
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
24
Bracket, Right Transaxle BS-093300E701
...
25
Spring BS-165X10MA
...
26
Bracket, Torque BS-093227E701
...
27
Screw BS-26X216MA
...
29
Key, Square BS-021553MA
...
30
Bolt BS-01X150
...
31
Washer BS-17X148MA
...
32
SCREW BS-690295
...
33
Bolt BS-01X145MA
...
34
Washer BS-17X180MA
...
35
Lockwasher BS-018X32MA
...
36
Rod, Control BS-93235E701
...
37
Washer BS-17X1032
...
38
Lever, Control BS-092594 Z
...
39
NUT, Adjusting BS-092132ZMA
...
41
Pulley, Idler BS-091178
...
42
Bolt BS-01X149
...
43
Pulley, Idler BS-023339MA
...
44
Rod, Latch BS-093339E701
...
45
Bracket, Left Transaxle BS-093301E701
...
46
Rod, Clutch BS-930292
...
47
Nut, Adjusting BS-021920ZMA
...
48
PEDAL-BRAKE BLACK RUB BS-1727261SM
...
49
Lever Assembly, Pedal BS-93082E701
...
50
Pedal Assembly BS-091713E701
...
51
Spring, Extension BS-165X105
...
52
Rod, Dump Valve BS-92675E701
...
53
Spring, Extension BS-165X106
...
54
Rod, Dump Valve BS-93247E701
...
55
Bracket, Dump Valve BS-92603E701
...
56
Screw BS-0025X9MA
...
57
Washer BS-17X160MA
...
58
Washer BS-17X115MA
...
59
RING, E .750D .050T BS-0011X3MA
...
60
Wheel and Tire Assembly BS-92300-601
...
61
Tire * (Included with Ref. No. 60) BS-024430
...
--
Tube (Included with Ref. No. 60) BS-407049MA
...
62
VALVE STM&CP,TR41 SE BS-024373MA
...
63
Spacer, Wheel BS-87X100 Z
...
64
Spacer, Transaxle BS-093116
...
65
Hub Cap (Optional) BS-024582MA
...
66
Air Baffle, Hydro BS-093279E701
...
67
Nut, Speed BS-028X59MA
...
68
SCREW, #10-16X.625 BS-703994
...
69
PIN, 3/32 X 1.6 BS-703300
