46258x6A Murray - Lawn Tractor (1996)

Model: 46258x6A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

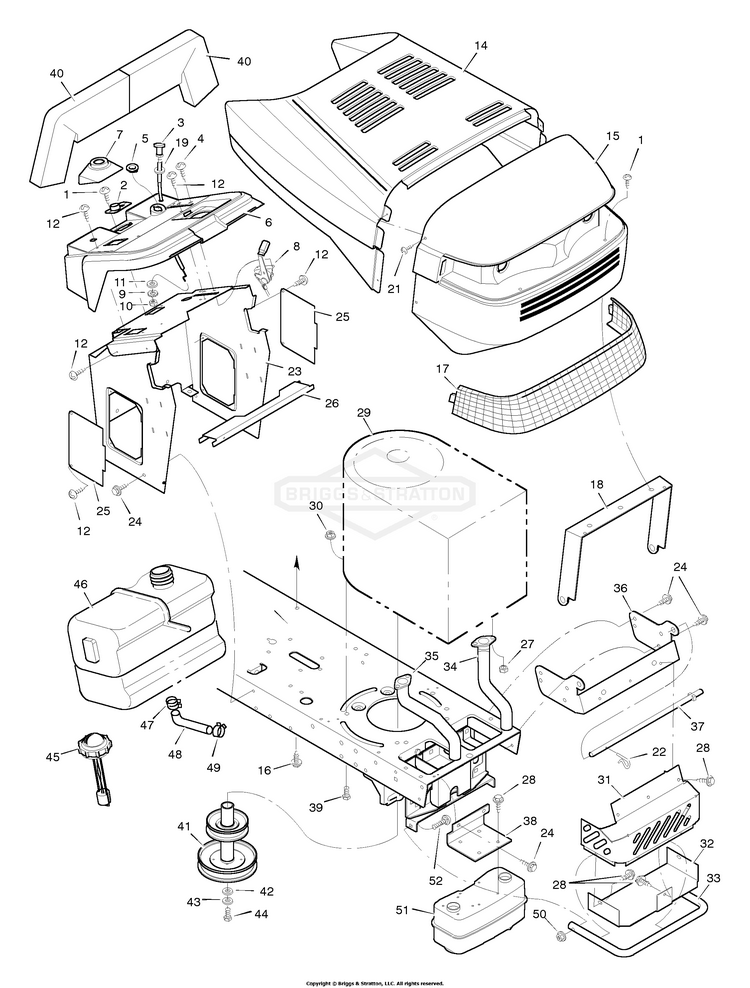

Hood & Engine Mount

...
...
1
Screw BS-26X239MA
...
2
Bearing, Steering Post BS-093144
...
3
Cable, Choke BS-091326
...
4
Screw BS-26X201MA
...
5
Bushing BS-055717MA
...
6
Dash BS-093143
...
7
Support, Bellows BS-093176
...
8
Throttle Control BS-093165MA
...
9
WASHER, EXT, 3/8 BS-703864
...
10
Nut, Hex BS-015X33MA
...
11
Washer BS-17X522
...
12
SCREW, Thread Forming BS-26X270MA
...
14
Hood BS-093215E540
...
15
Grille (Includes Lens) BS-093149MA
...
16
SCREW.25-20 S-T BS-26X263MA
...
17
Lens BS-093139MA
...
18
Brace, Grille BS-931902
...
19
WASHER BS-703326
...
21
Screw BS-009X47MA
...
22
PIN, 3/32 X 1.6 BS-703300
...
23
Console Assembly BS-93163E540
...
24
Screw BS-26X249MA
...
25
Panel, Side Access BS-93007E540
...
26
Support, Fuel Tank BS-91329E701
...
27
Nut, Hex BS-0190X5
...
28
Screw BS-26X195MA
...
30
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
31
Shield, Heat BS-093251
...
32
Shield, Lower Heat BS-093253
...
33
Guard, Muffler BS-093252
...
34
Pipe, Left Exhaust BS-93261E701
...
35
Pipe, Right Exhaust BS-93260E701
...
36
Support, Grille BS-093257E701
...
37
Rod, Pivot BS-093192 Z
...
38
Bracket, Muffler BS-93256
...
39
Bolt, Hex BS-001X66MA
...
40
Baffle, Foam BS-093282
...
41
Pulley Assembly, Stack BS-093246 Z
...
42
WASHER.46.97.25 FLAT BS-17X170MA
...
43
Lockwasher BS-019X35MA
...
44
Bolt, Hex BS-01X140MA
...
45
Cap, Fuel BS-091349
...
46
Fuel Tank BS-093148
...
47
Clamp, Hose (Included with Ref. No. 53) BS-091174
...
48
Fuel Line (Included with Ref. No. 53) BS-093197
...
49
CLAMP, Hose BS-691038
...
50
Hex, Flange nut BS-015X76MA
...
51
Muffler BS-093259MA
...
52
Carriage Bolt BS-002X81MA
