46258x6A Murray - Lawn Tractor (1996)

Model: 46258x6A

Back To Assemblies

Save Part Not Listed?
product name

Mower Housing Suspension

...
...
1
GRIP BS-1753233YP
...
2
Lever, Blade Control BS-093162 Z
...
3
Screw, Hex BS-0025X3MA
...
4
Control Assembly, Blade BS-093218E700
...
5
PIN, 3/32 X 1.6 BS-703300
...
6
Screw BS-26X249MA
...
7
Spring, Extension BS-165X92MA
...
8
Washer BS-17X103MA
...
9
Pin, Pull BS-908272
...
10
Support Assembly, Front BS-093013E701MA
...
11
Plate, Adjuster BS-091741E701MA
...
12
Link, Suspension BS-92110E701
...
13
Support, Lifter BS-093114E701MA
...
14
Button, Push BS-092572MA
...
15
Grip BS-092783MA
...
16
Spring, Compression BS-164X21MA
...
17
Handle Assembly BS-91823E701
...
18
Screw BS-026X49MA
...
19
Cover, Lift Lever (Optional) BS-092157MA
...
20
SCREW.25-20 S-T BS-26X263MA
...
21
Washer BS-17X124MA
...
22
Nut, Adjusting BS-021920ZMA
...
23
Rod, Blade Control BS-093356 Z
...
24
Washer BS-17X472
...
25
Bracket, Pivot BS-093052E701
...
26
Washer BS-017X91MA
...
27
NUT, Adjusting BS-092132ZMA
...
28
PIN, 3/32 X 1.6 BS-703300

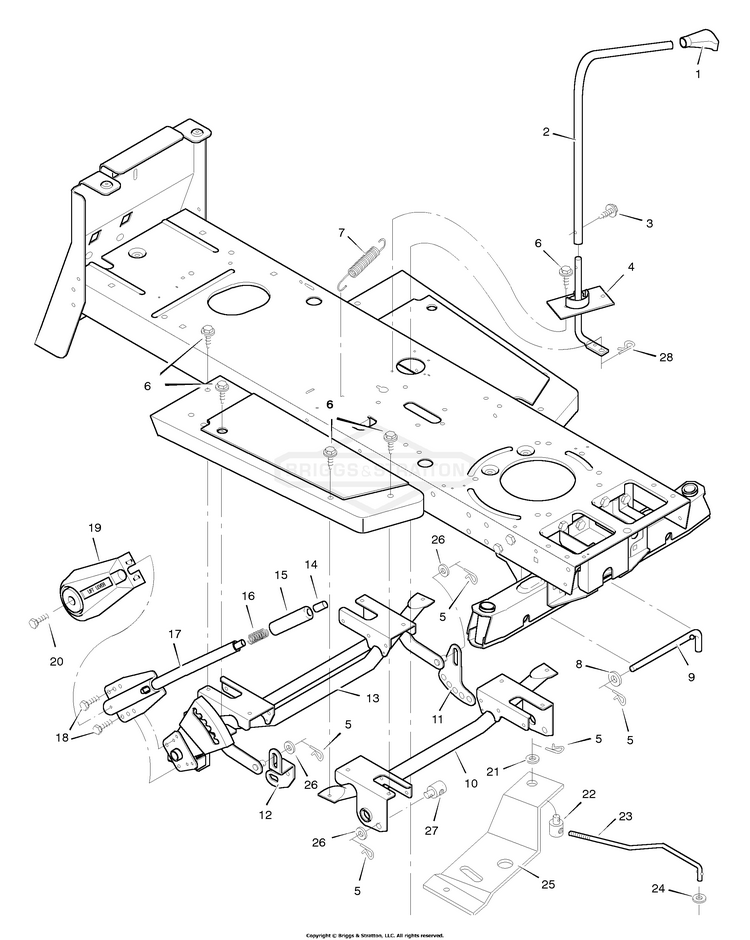

Schematic Image Zoomed
