46258x6A Murray - Lawn Tractor (1996)

Model: 46258x6A

Back To Assemblies

Save Part Not Listed?
product name

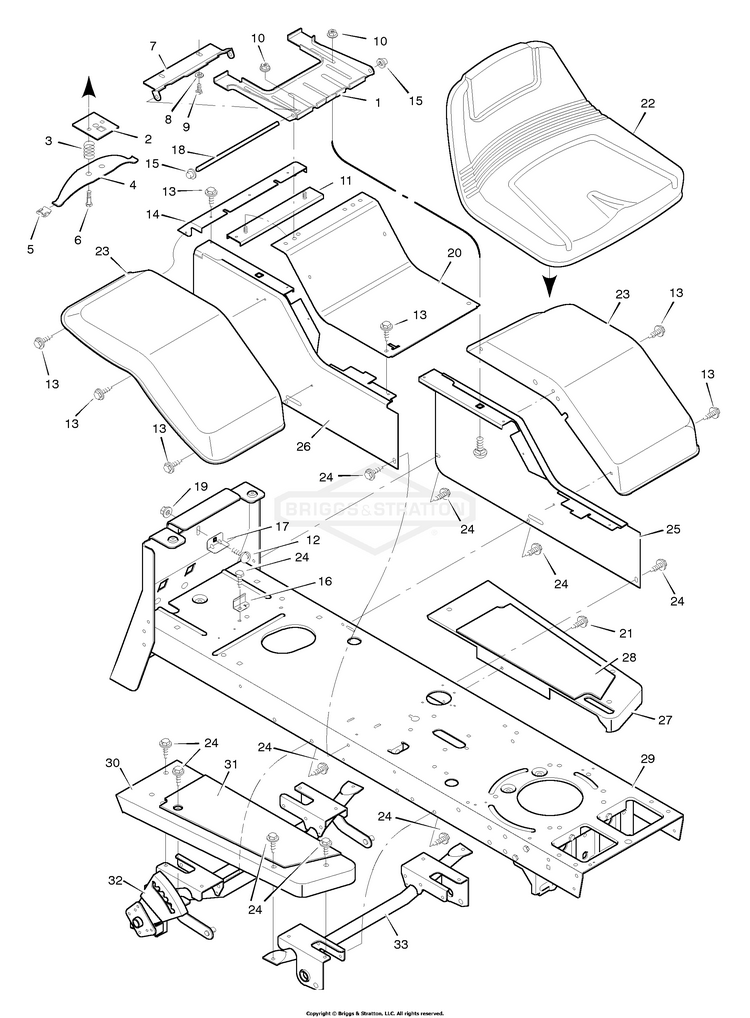

Body Chassis

...
...
1
Bracket, Seat BS-092546E701
...
2
Plate Assembly, Switch BS-091963 Z
...
3
Spring, Compression BS-164X26MA
...
4
Spring, Seat BS-091964MA
...
5
Glide, Spring BS-091822MA
...
6
Bolt, Shoulder BS-009X38MA
...
7
Support, Seat BS-92334E701
...
8
Lockwasher BS-018X16MA
...
9
CAPSCREW,5/16-18X.625 BS-703822
...
10
NUT, HEX FLNG,5/16-18 BS-704067
...
11
Channel Assembly BS-092601E701
...
12
BOLT BS-703159
...
13
SCREW.25-20 S-T BS-26X263MA
...
14
Insert, Rear BS-93043E540
...
15
PUSHNUT, 3/8 BS-703948
...
16
Support, Battery BS-55149E701
...
17
Clamp, Battery BS-093336 Z
...
18
Rod, Pivot BS-091730 Z
...
19
Locknut BS-015X76MA
...
20
Panel, Top BS-93222E540
...
21
Fastener, Panel BS-0193X1MA
...
22
Seat BS-092606
...
23
Fender BS-023006E540
...
24
Screw BS-26X249MA
...
25
Panel, Left BS-93345E540
...
26
Panel, Right BS-93344E540
...
27
Running Board, Left BS-93011E540
...
28
Mat, Left BS-093071
...
29
Frame Channel BS-403351
...
30
Running Board, Right BS-93010E540
...
31
Mat, Right BS-093070
...
32
Lifter and Support Assembly BS-093114E701MA
...
33
Support Assembly, Front BS-093013E701MA
