46254x15B Murray - Lawn Tractor (1996)

Model: 46254x15B

Back To Assemblies

Save Part Not Listed?
product name

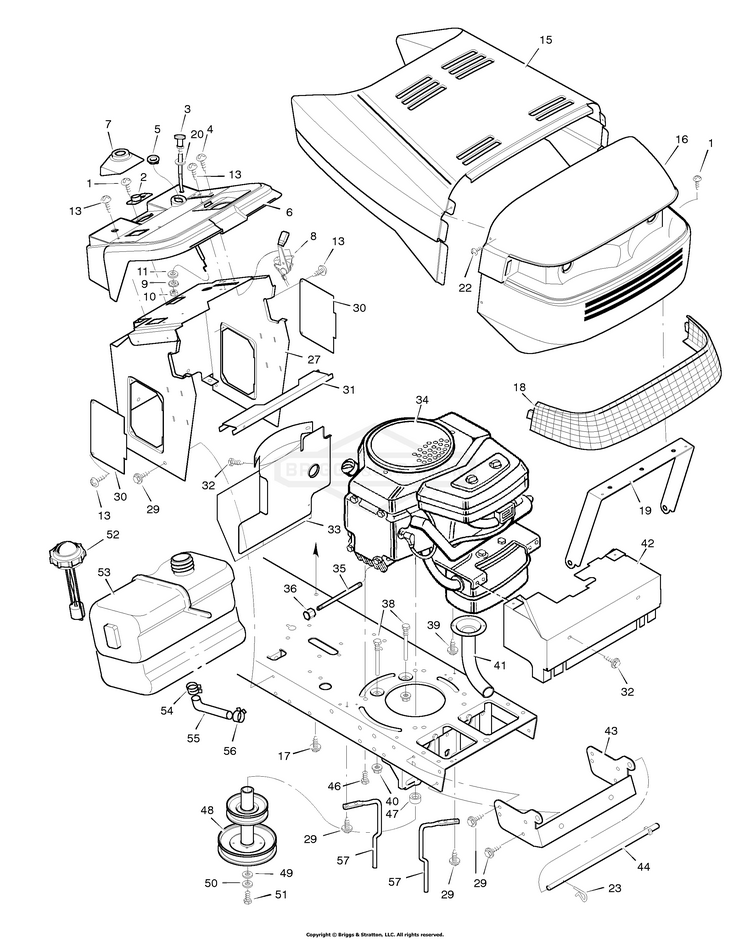

Hood & Engine Mount

...
...
1
Screw BS-26X239MA
...
2
Bearing, Steering Post BS-093144
...
3
Cable, Choke BS-091326
...
4
Screw BS-26X201MA
...
5
Bushing BS-055717MA
...
6
Dash BS-093143
...
7
Support, Bellows BS-093176
...
8
Throttle Control BS-093165MA
...
9
WASHER, EXT, 3/8 BS-703864
...
10
Nut, Hex BS-015X33MA
...
11
Washer BS-17X522
...
13
SCREW, Thread Forming BS-26X270MA
...
15
HOOD BS-093215E701MA
...
16
Grille (Includes Lens) BS-093149MA
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
Lens BS-093139MA
...
19
Brace, Grille BS-93190 Z
...
20
WASHER BS-703326
...
22
Screw BS-009X47MA
...
23
PIN, 3/32 X 1.6 BS-703300
...
27
Console Assembly BS-93163E701
...
29
Screw BS-26X249MA
...
30
Panel, Side Access BS-093007E701MA
...
31
Support, Fuel Tank BS-91329E701
...
32
SCREW, HEX, 1/4-20X.5 BS-704130
...
33
Baffle, Rear Heat BS-93214E701
...
35
Oil Drain Extension BS-056261
...
36
Oil Drain Cap BS-021651
...
38
Guide, Belt BS-91754 Z
...
39
Screw BS-26X208 Z
...
40
NUT, HEX FLNG,5/16-18 BS-704067
...
41
Pipe, Exhaust BS-023743E701MA
...
42
Shield, Heat BS-93188E701
...
43
Support, Grille BS-093257E701
...
44
Rod, Pivot BS-093192 Z
...
46
SCREW-HEX WSHR HD TAP BS-2828635SM
...
47
Spacer, Engine BS-093077MA
...
48
Pulley Assembly, Stack BS-093246 Z
...
49
WASHER.46.97.25 FLAT BS-17X170MA
...
50
Lockwasher BS-019X35MA
...
51
Bolt, Hex BS-01X140MA
...
52
Cap, Fuel BS-091349
...
53
Fuel Tank BS-093148
...
54
Clamp, Hose BS-091174
...
55
Fuel Line BS-093197
...
56
CLAMP, Hose BS-691038
...
57
Guide, Belt BS-92533 Z
...
--
Book, Instruction BS-F-96781
...
--
Repair Parts Book BS-F-96782
