46250x30A Murray - Lawn Tractor (1996)

Model: 46250x30A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

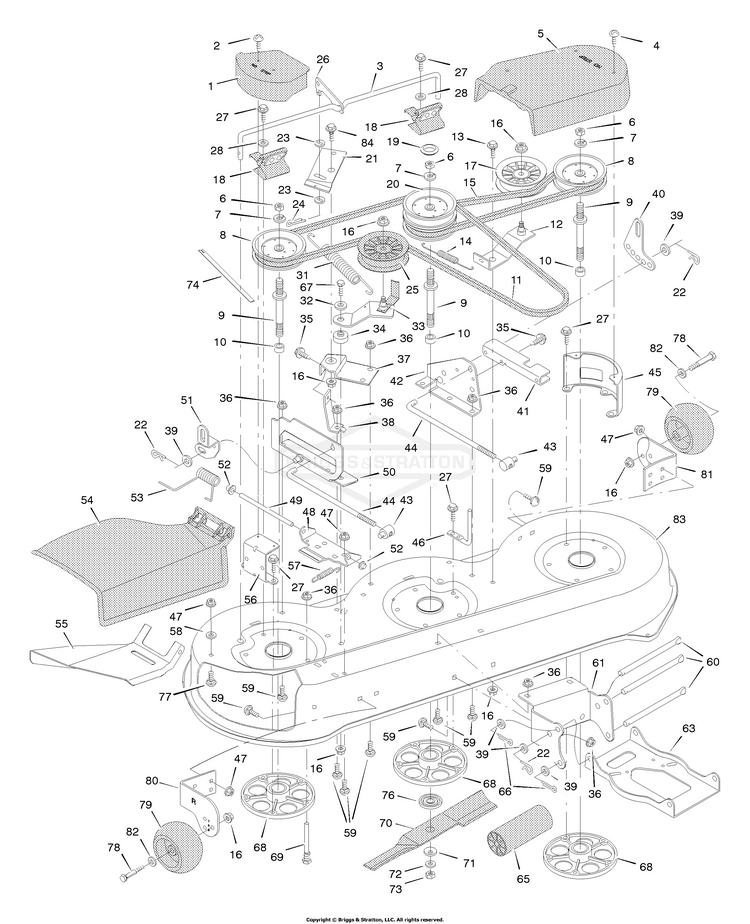

Mower Housing

...
...
1
Cover, Pulley BS-92145E701
...
2
Screw BS-26X266
...
3
Rod, Brake BS-092129 Z
...
4
Screw BS-26X258MA
...
5
Cover, Left Pulley BS-92154E701
...
6
Nut, Hex BS-15X100MA
...
7
Lockwasher BS-018X33MA
...
8
Pulley BS-092127MA
...
9
Jackshaft BS-091921
...
10
Spacer, Bearing BS-091925MA
...
11
Belt, Primary Mower Drive BS-037X69MA
...
12
Bracket, Idler BS-92112E701
...
13
Bolt, Shoulder BS-009X39MA
...
14
Spring, Extension BS-165X79MA
...
15
Belt, Secondary Mower Drive BS-037X66MA
...
16
NUT, CNTR LCK, 3/8-16 BS-703893
...
17
Pulley, Idler BS-091590
...
18
Spring Assembly, Brake BS-092148MA
...
19
Plug BS-092169MA
...
20
Pulley, Stack BS-092128MA
...
21
Bracket, Pivot BS-093052E701
...
22
PIN, 3/32 X 1.6 BS-703300
...
23
Washer BS-17X171 Z
...
24
Pin, Cotter BS-030X33
...
25
PULLEY, IDLER BS-091801MA
...
26
Link, Brake BS-092130 Z
...
27
SCREW-HEX WSHR HD TAP BS-2828635SM
...
28
Washer BS-010851 Z
...
29
Washer BS-017X91MA
...
31
Spring, Extension BS-165X80MA
...
32
Washer BS-17X168ZMA
...
33
Bracket, Idler BS-092220E701MA
...
34
Bushing BS-092180MA
...
35
Screw BS-26X249MA
...
36
Nut, Hex BS-15X792
...
37
Support, Pivot BS-092115E701
...
38
Strut, Pivot BS-92158E701
...
39
Washer BS-17X103MA
...
40
Plate, Adjuster BS-091741E701MA
...
41
Channel, Left Cover BS-092138E701
...
42
Bracket Assembly, Lifter BS-92109E701
...
43
NUT, Adjusting BS-092132ZMA
...
44
Rod, Adjuster BS-092134 Z
...
45
Bracket, Left Cover BS-092139E701MA
...
46
Guide, Belt BS-092116 Z
...
47
NUT, HEX FLNG,5/16-18 BS-704067
...
48
Bracket, Hinge BS-092104E701MA
...
49
Rod, Deflector BS-092159ZMA
...
50
Bracket Assembly, Lifter BS-93088E701
...
51
Link, Suspension BS-92110E701
...
52
PUSHNUT, 3/8 BS-703948
...
53
Spring, Torsion BS-166X34MA
...
54
Deflector BS-092100MA
...
55
Deflector, Inside BS-092103E701MA
...
56
Bracket, Cover BS-92140E701
...
57
Spring, Extension BS-165X86MA
...
58
Washer BS-017X57MA
...
59
BOLT BS-703159
...
60
Rod, Hanger BS-091739 Z
...
61
Bracket, Front Hanger BS-93087E701
...
62
Washer BS-17X124MA
...
63
Hanger, Front BS-092119SEMA
...
65
Roller BS-092137MA
...
66
Pin, Cotter BS-030X49MA
...
67
Bolt, Hex BS-01X111 Z
...
68
Housing, Mandrel BS-092574
...
69
Guide, Belt BS-91754 Z
...
70
Blade (3 required) BS-092117E701MA
...
71
Washer, Belleville BS-17X166MA
...
72
Washer BS-17X165MA
...
73
Nut, Hex BS-15X100MA
...
74
Indicator, Plastic BS-092163MA
...
76
Adapter, Blade BS-092466MA
...
77
BOLT, 5/16-18X0.50 BS-703798
...
78
BOLT, Gauge Wheel BS-094025MA
...
79
Wheel, Gauge BS-092683MA
...
80
Bracket, Right Gauge Wheel BS-92259E701
...
81
Bracket, Left Gauge Wheel BS-92258E701
...
82
WASHER BS-703128
...
83
Housing, Mower BS-92257E701
...
84
BOLT, 3/8-16 X .925 BS-704206
...
--
Mower Housing, Complete (Includes Ref. No's. 1-84) BS-403337MA
