461707-0143-E1 Briggs and Stratton Engine

Model: 461707-0143-E1

Back To Assemblies

Save Part Not Listed?
product name

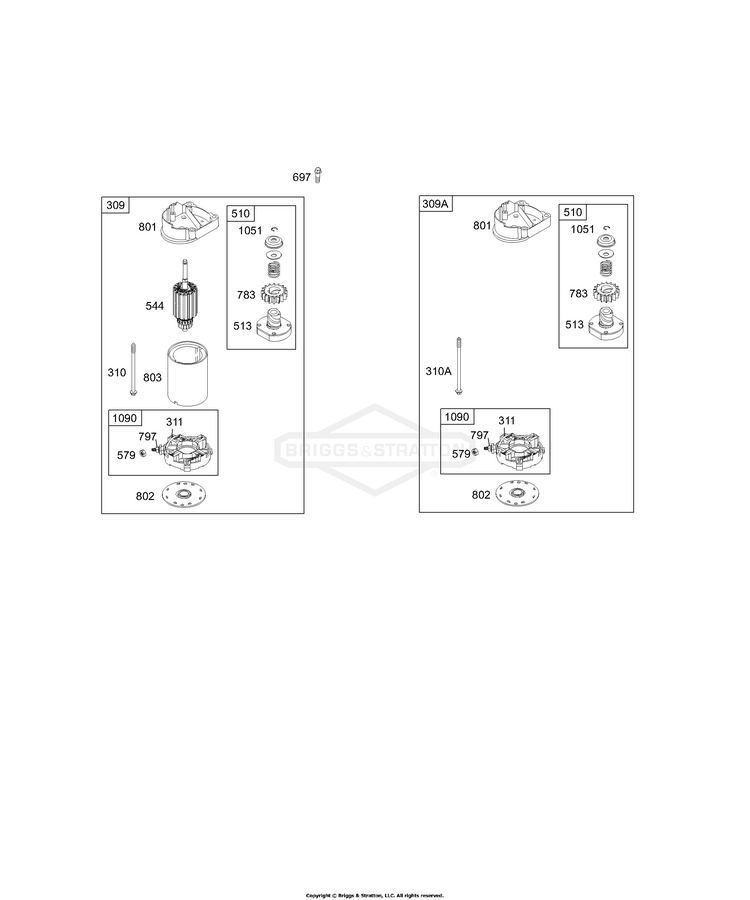

Electric Starter

...
...
309
MOTOR, Starter (3 5/8 Housing) BS-497596
...
309A
MOTOR, Starter (4 3/8 Housing) BS-498148
...
310
SCREW (Starter Motor) (3 5/8" Housing Length) BS-690323
...
310A
BOLT (Starter Motor) (4 3/8 Housing) BS-691263
...
311
SET, Brush BS-497608
...
510
MOTOR, STARTER BS-84013068
...
513
CLUTCH, Drive BS-692024
...
544
ARMATURE, Starter (3 5/8 Housing) BS-692034
...
579
NUT (Starter Cable) BS-690958
...
697
SCREW (Drive Cap) BS-691103
...
783
GEAR-PINION (Aluminum Ring Gear Only) BS-695708
...
797
NUT (Brush Retainer) BS-693167
...
801
CAP, Drive BS-691967
...
802
CAP, End BS-691286
...
803
HOUSING, Starter (3 5/8 Housing) BS-693757
...
1051
RING, Retaining BS-691265
...
1090
RETAINER, Brush BS-691293
